BIG OTDR TECHNOLOGY IN A SMALL PACKAGE

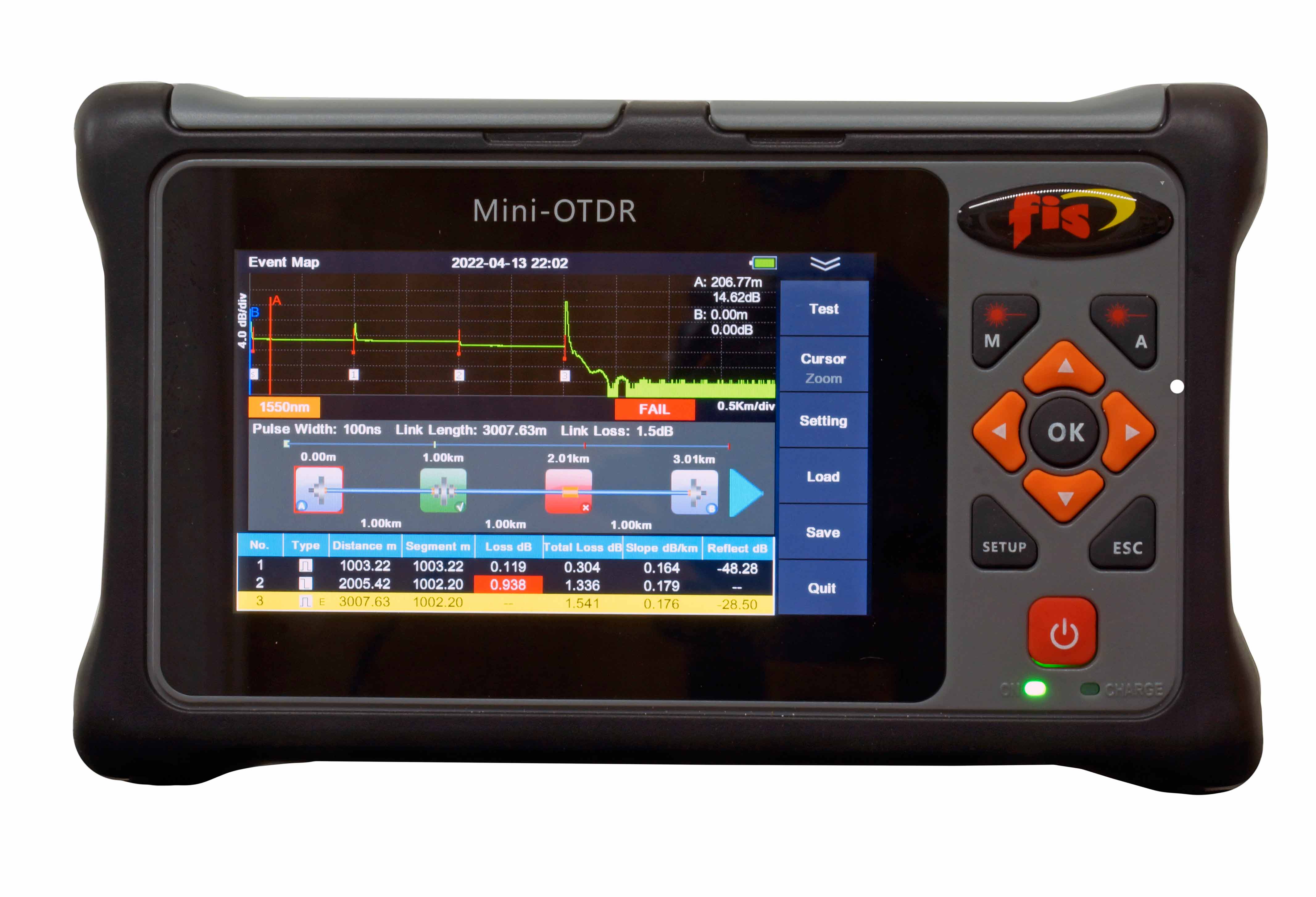

All New Atlas Mini OTDR

Includes the Latest Technology at a Fantastic Price!

Wavelength: Single mode : 1310/1550nm
Measuring Range Settings: min 100m-max 100km
Touch screen or hard key functions
OTDR data format: SOR format
Includes traditional .SOR trace view software & graphical event map software-which allows an easier interoperation of results
Onboard features power meter, light source, OTLS, VFL, OTDR, graphical event map display,optional network cable test
Keyboard input,edit/save file name and line number
4.3 inch TFT screen, 800 x480 pixcel display
Unitits of measurement: kilometers, kilofeet, miles
26db dynamic range at 1550nm
APC OTDR port w/ SC & FC interchangeable adapters
USB connector inspection probe (sold separately)
Lithium batteries lsts 8 plus hours on full charge
PDF batch reporting software included
