AFL Enclosure Products
AFL WALL MOUNT ENCLOSURES
AFL’s wall mount interconnect enclosures provide a convenient convergence point for interconnecting and/or splicing in wall mount applications. Provisioned for LGX compatible adapter plates or optical modules, the enclosure features a well-engineered solution for fiber and cable management on both the ingress and egress openings of the enclosure.
AFL Fiber Termination Patch Panels
AFL’s fiber termination panels are designed for use as a rack mount interconnect panel and feature universal 19/23” EIA/TIA rack compatibility. They are LGX compatible with industry standard adapter plates and cassettes.
Description |
(HxWxD) |
Part # |
| AFL Patch Panel, 1RU, Holds up to (3) LGX Adapter Plates | 1.75” x 17” x 13.51” | FM001038-BE |
| AFL Patch Panel, 2RU, Holds up to (6) LGX Adapter Plates | 3.5” x 17” x 13.51” | FM001029-BE |
| AFL Patch Panel, 4RU, Holds up to (12) LGX Adapter Plates | 7” x 17” x 11” | C211372-BE |

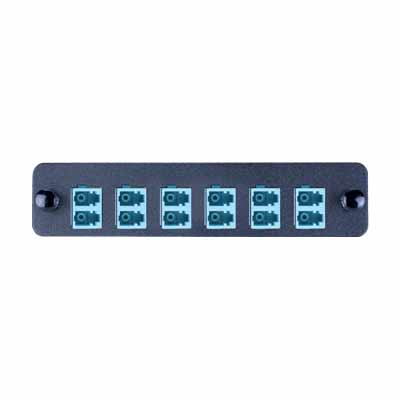

AFL LGX Adapter Plates
AFL adapter plates are compatible with LGX industry standard platforms allowing for easy upgrades within existing panels. Adapter plates come preloaded with mating sleeves and are available in 6, 12 and 24 port configurations.
Description |
Part # |
| LGX Adapter Plate, Simplex ST, MM, 6 Fiber | FM003104 |
| LGX Adapter Plate, Duplex ST, SM, 12 Fiber | FM003126 |
| LGX Adapter Plate, Simplex SC, MM, 6 Fiberk | FM003096 |
| LGX Adapter Plate, Simplex SC, SM, 6 Fiber | FM003100 |
| LGX Adapter Plate, Duplex SC, MM, 12 Fiber | FM003293 |
| LGX Adapter Plate, Duplex SC, SM, 12 Fiber | FM003297 |
| LGX Adapter Plate, Duplex SC, MM (OM3 and OM4), 12 Fiber | FM003295 |
| LGX Adapter Plate, Simplex FC, SM/MM, 6 Fiber | FM003420 |
| LGX Adapter Plate, Duplex LC, MM, 12Fiber | FM003110 |
| LGX Adapter Plate, Duplex LC, SM, 12 Fiber | FM003465 |
| LGX Adapter Plate, Quad LC, SM, 24 Fiber | FM003208 |
| LGX Adapter Plate, Quad LC, MM (OM3 and OM4), 24 Fiber | FM003206 |
