AIR BLOWN FIBER
Reduce cable installation cost when installing within a building or ditch-witching for outdoor requirements by installing microduct and jetting fiber to its' destination. Air Blown fiber is the installation of fiber optic cable via high speed compressed air. This method of using air pressure reduces the chance of damage to the fiber as opposed to pulling the fiber through which can cause damage. It is also preferred for duct with multiple bends and is a recommended installation method for long haul installation.
FIS CABLE JETTER KIT
Microduct is an excellent way to physically protect fiber cable. Microduct also allows for the cable to be installed by air forcing or mechanically pushing the cable using the Cable Jetting equipment.
The Cable Jetter Kit is a complete kit enabling the user to air blow and mechanically push up to 3mm diameter fiber optic cable, to install 60-pound nylon line as a pull string, or as and aid to install mule tape. Installation of cables up to 250’ long can be easily achieved. The ability to mechanically push the cable helps move the cable past bends. Longer distances can be achieved with the nylon pull string line option. The portable 90 PSI compressor can be purchased as a kit, or you can use your air source; it is not recommended to exceed 80 PSI.
Features:
• Quick connect system to attach to 3/8” I.D. conduit
• Air hookup with air shutoff valve
• Nylon pull string spool holder
• Mechanical drive to push fiber through conduit when needed

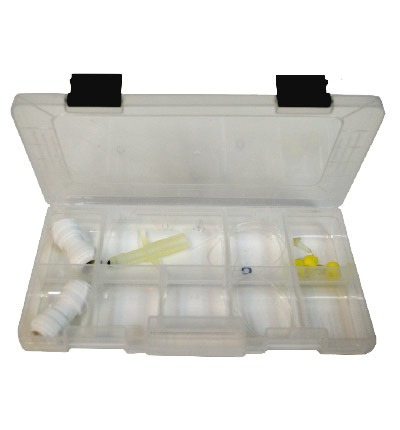

Kit Contents:
• Cable Jetter with Nylon Pull String
• Threaded Nozzle
• Quick Connect (2 Qty)
• Blowing Projectile (6 Qty)
• Pre-cut Nylon Pull String
• Mini Pulling Eye (6 Qty)
Description |
Part # |
| FIS Cable Jetter Kit | F1JETTERKIT |
FIS CABLE JETTER ACCESSORIES
Description |
Part # |
| 6 Gal 165 PSI Compressor & 50ft Air Hose | F1JETTERC |
| Consumable refill kit (6 projectiles) | F1JETTERRFK6 |
| Consumable refill kit (24 projectiles) | F1JETTERRFK24 |
| Microduct – 3/8” I.D. – 1/2 “ O.D. (9.5mm - 12.7mm) | KDI12101 |
| Nylon Pull String Refill | JETTERFLREFILL |
Innerduct
Fiber Instrument Sales distributes an Innerduct product line consisting of corrugated HDPE, riser rated PVC and plenum rated PVDF Innerduct in a variety of colors and sizes. A full line of fittings and accessories that complement the product line are available as well. The plenum and riser product lines are both UL 2024 listed and are among the most flexible flame-rated Innerduct products on the market. The HDPE outside plant products offer high tensile strength while being impervious to abrasion, scouring and root penetration. Innerduct available in 250 and 500 foot coils.

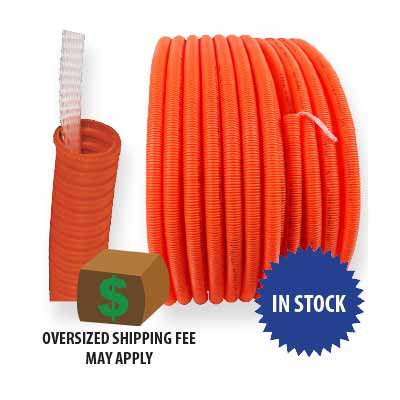

HDPE CORRUGATED INNERDUCT - OUTDOOR RATED
Description |
OUT. DIA. |
IN. DIA. |
Part # |
| Single-Wall Orange with 900 lb. Pull Tape -250ft | 1.35” | 1.049” | F1-14383P250 |
| Single-Wall Orange with 900 lb. Pull Tape -500ft | 1.35” | 1.049” | F1-14383P500 |
| Split HDPE Orange -250ft | 1.35” | 1.049” | F1-14383SP250 |
| Split HDPE Orange -500ft | 1.35” | 1.049” | F1-14383SP500 |
Description |
Part # |
| Innerduct Coupling 1 1/4" to connect two smaller pieces | PCCP-100 |
INDOOR RATED INNERDUCT
Description |
OUT. DIA. |
IN. DIA. |
Part # |
| Riser Rated Orange with 900 lb. Pull Tape -250ft | 1.35” | 1.049” | F1-14363P250 |
| Riser Rated Orange with 900 lb. Pull Tape -500ft | 1.35” | 1.049” | F1-14363P500 |
| Plenum Rated Orange with 900 lb. Pull Tape -250ft | 1.35” | 1.049” | F1-11437P250 |
| Plenum Rated Orange with 900 lb. Pull Tape -500ft | 1.35” | 1.049” | F1-11437P500 |

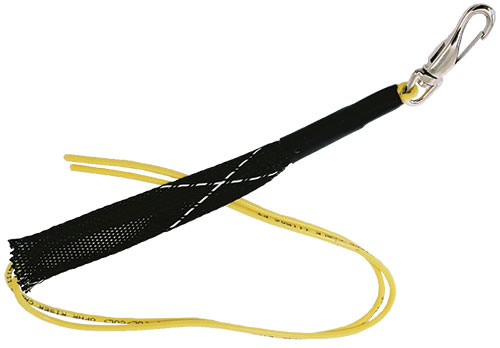

FIS FIBER OPTIC PULLING EYE AND CABLE NETTING
Description |
Part # |
| FIS Pulling Eye Kit for Multifibers Yellow | F1-1001 |
| FIS Pulling Eye Kit for Multifibers Orange | F1-1001ORG |
| FIS Pulling Eye Kit for Simplex and Duplex | F1-1001BR |
| Pulling Eye Installed by FIS | F1-1001A |
| Cable Netting (Expands up to 3/8”, pulls down to 3/16”) | F1-570038BLK |
| Cable Netting (Expands up to 1/2”, pulls down to 1/4”) | F1-570038BLK |
| Cable Netting (Expands up to 2”, pulls down to 1/2”) | F1-5700 |

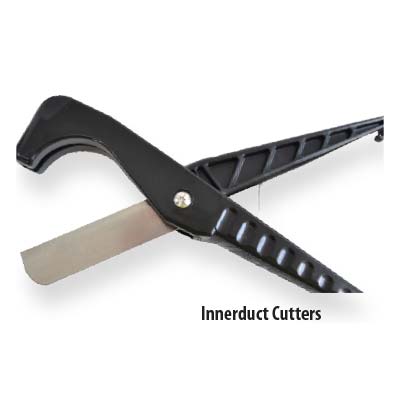

INNERDUCT CUTTERS
Description |
Part # |
| Innerduct Cutters - Will Cut Diameters 1/2” to 1.5” | F1-SL200 |
