Broadcast / Military Connectors

These rugged stainless steel SMPTE connectors ensure a very long product life. Cable assemblies utilize two Singlemode fiber contacts, two power contacts and two signal contacts. Cable assembles are available with multiple configurations including panel mount receptacles and plugs.

The FIBERFOX 2CH & 4CH Cable connectors are expanded beam multimode hermaphroditic connectors suited for a vast array of applications, including Lighting, Network, PA, Video, Broadcast, Defense & Government, Railway and Petrochemical. The innovative design ensures its suitability for deployment in the toughest environments where constant performance and total reliability are critical. The connector is designed according to the MIL-DTL-83526 standard and fits to all other connectors with this standard.

• Heavy-duty, connectors IP68 (even unprotected
• No special cleaning or measurement tools required
• . = 5mm, PUR flame-retardant, halogen-free, bend tolerant
• Cables can be mated together directly, no couplers required
• Ready-made up with connectors EBC1502
• Wear-free connectors, > 10,000 mating cycles without any maintenance

The opticalCON system is based on LC-Duplex connectors but eliminates its weakness and guarantees a safe, dust-protected and rugged connection. Being compatible to conventional LC connectors the opticalCON DUO offers the choice of using costeffective LC cables or the rugged opticalCON cable assembly for mobile applications. The opticalCON DUO is the ideal solution for equipment connections and system integration offering LC compatibility on chassis connector front and rear. The opticalCON QUAD is based on the proven opticalCON DUO connection system but with four channels it is optimized for Point-to-Point interconnections and multi-channel routing applications. The system copes with the increasing need for fiber optic channels.

The opticalCON MTP. cable connectors are characterized by the robust all-metal housing and the heavy-duty strain relief. The innovative spherical dust shutter protects the fiber from contamination and minimizes maintenance. The color-coded cable connectors are pre-assembled and available in a variety of mobile field cables.

• Rugged 12-channel fiber optic connection system
• Innovative spherical shutter guarantees low maintenance
• Rugged 12-channel fiber optic connection system
• Innovative spherical shutter guarantees low maintenance

Delphi’s 4 and 12 Channel Hermaphroditic Connectors are both Single and Multimode compatible in the same connector. They are designed to withstand crush, impact, cable twist, bending movement, water and mud immersion, as well as many other harsh environments. They will link to identical connectors without regard to connector gender.

Fischer Fiber Optic push-pull connector solutions are purpose built to withstand the elements of rugged and harsh environments, providing virtually faultless performance. Extreme Environmental Robustness: IP68 ingress protection when mated or with caps and IP67 sealing even unmated. Connectors and assemblies are available in 2 and 4 channels, Singlemode and Multimode.

The TFOCA GenX tactical fiber optic connector provides the ultimate in reliable performance in harsh environments where high cycle mating is of concern. Built on the ubiquitous telecommunications grade 2.5mm ceramic ferrule technology, the design and packaging of these connectors provide a robust connectivity solution resistant to corrosion, shock and thermal shock environments while providing easy field maintenance. Fully compatible with legacy product, Stran Technologies has harmonized the TFOCA GenX to ensure alignment with the MIL-PRF-83526/16 & /17 specification. Fully compatible with TFOCA-II. connectors.

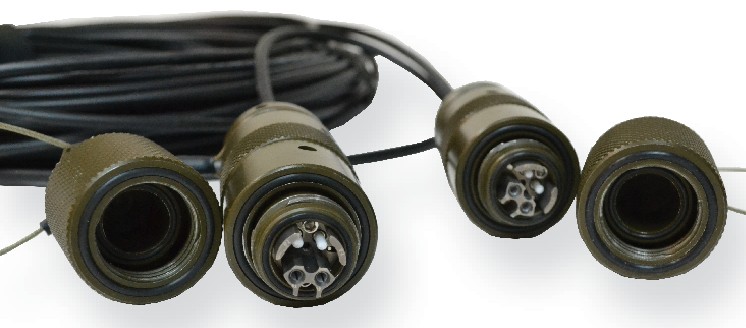

Amphenol Fiber Systems International TFOCA II® connectors are designed to withstand repeated handling and mating cycles typically required for rapid fiber optic cable deployment and retrieval in a tactical environment. TFOCA II is the replacement for US Army and US Marine Corps legacy systems with TFOCA (AT&T).

For rugged fiber optic military applications that require higher fiber counts, the M28876 is a good solution. The M28876 connectors come in a variety of fiber counts from 4 to 31 and vary in shell size from 13 - 23. There are a diverse amount of connector styles. These are offered in plug, jam-nut receptacle and flange mount receptacle. In addition, each of these have different options for the strain relief/backshell: none, straight, 90° and 45°.

In addition to connectors, FIS Blue is also a world-wide leader in M28876 cable assembly production. FIS Blue custom builds all types of M28876 and Navy assemblies to meet any need. All cable assemblies are 100% tested and are shipped with documented test results. In addition, full interferometer results are available upon request.

CALL A FIS SALES REPRESENTATIVE FOR PRICING 1-800-5000-FIS(347)
