Connector Cleaners

This unique handheld connector ferrule end face cleaner removes dust, dirt and contaminates prior to mating a fiber optic connection. The fiber optic cleaner fits well in the technician’s hand with a convenient trigger that automatically opens the top cleaning window to expose a single microfiber cleaning slot. Simply swipe the ferrule end-face with light pressure against the microfiber with the directional arrow and then release the trigger.

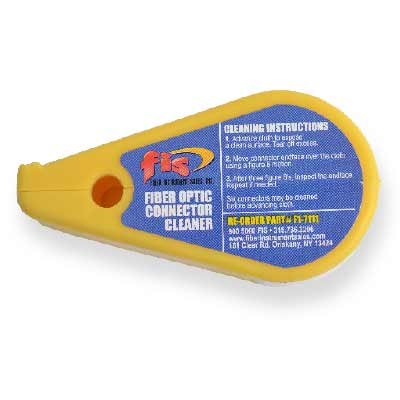

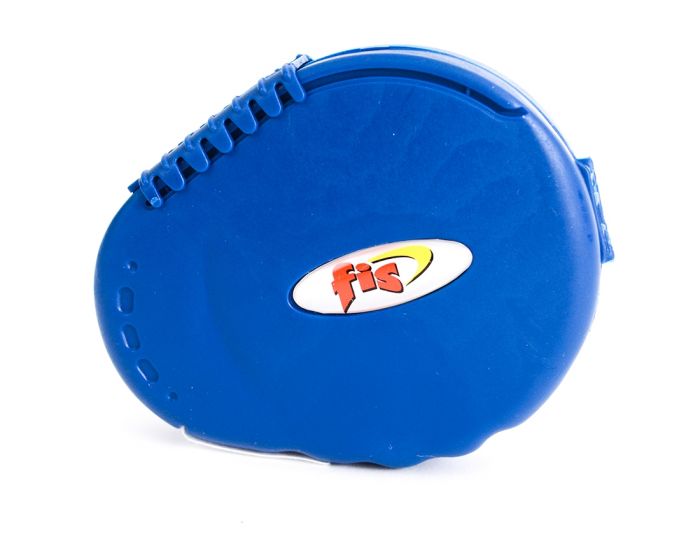

Choose the FIS Hand Held Connector Cleaner as an alternative to alcohol or solvent and wipes. The cartridge offers lint-free, clean room grade cleaning media which effectively removes dirt, dust, oil, grease and debris from connector endfaces. A new resilient rubber pad beneath the cleaning surface prevents scratching, and a sliding cover protects the cleaning media from contamination when not in use. Reel refills available.

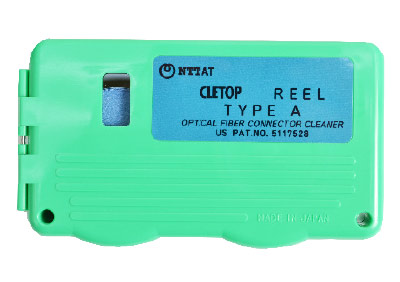

The CLETOP optical fiber connector cleaners are rugged handheld tools for cleaning fiber optic connector end faces. The CLETOP cleaners quickly and effectively clean a variety of connectors. CLETOP cleaners are a safe cleaning option without the need for isopropyl alcohol, which is toxic and flammable. CLETOP cleaners have refillable cleaning tapes with 400 cleans per tape making them ideal for lab and field use. The simple push button shutter operation makes cleaning connectors quick and easy.

The CLETOP–S Series is a second generation CLETOP cleaner offering the same CLETOP cleaning performance with “drop-in” replacement tape cartridge and ergonomic design that works equally well for left or right handed operators.

Note:

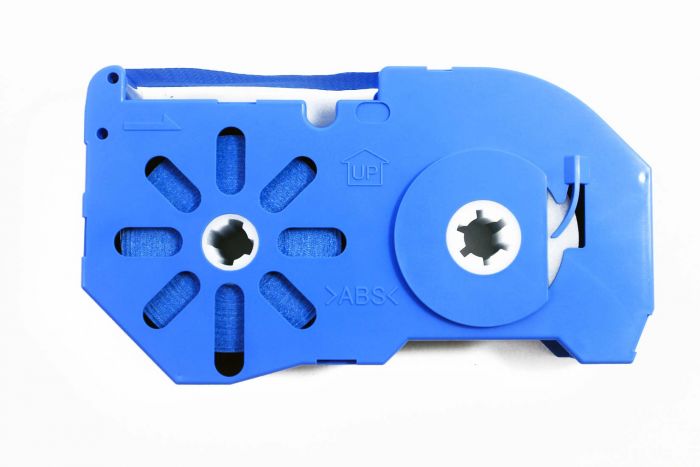

The Blue Tape is the original color tape. It was used on connectors with 2.5mm diameter ferrules such as the FC, ST, and SC. With the introduction of the smaller 1.25mm diameter ferrules such as used in the LC connector and multifiber connectors such as the MPX, there was some concern the smaller geometry connectors might “snag” on the somewhat looser weave of the Blue Tape. Therefore, a smoother White Tape was developed. Over time, with very few exceptions, the looser weave of the Blue Tape turned out to not be a problem for the smaller geometry ferrules. Currently, the selection of Blue or White Tape is primarily user preference.

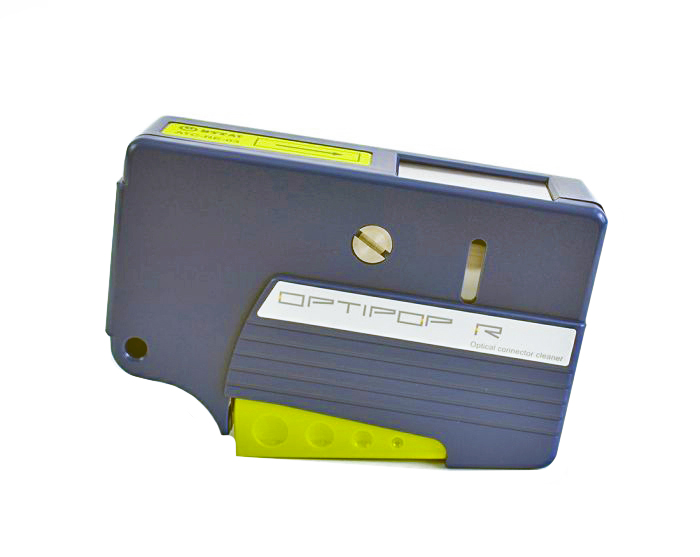

OPTIPOP fiber optic connector cleaners are rugged palm-sized units that offer exceptional performance field-proven by technicians over years of service. Cost-effective refillable cleaning tape with over 400 cleans per tape.

The SENKO MPOPLUS® Effective for removing oil, dust, and dirt particulates that can have a negative impact on fiber optic performance. Pad cleans entire MPO Endface including PIN area. Easy to use with a push-pull function. Stick cleans MPO adapters. Each item is used separately.

The adapter or mating sleeve, when connected on far side creates a bulkhead opening which can be cleaned without removing the connector.

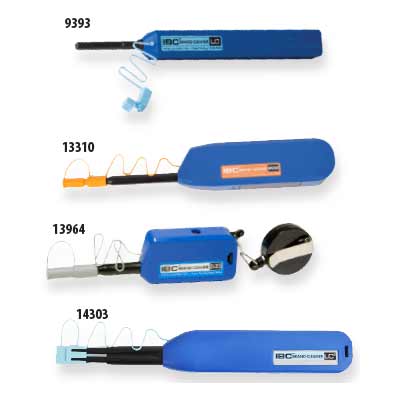

The US Conec IBC™ Brand Cleaners are mechanical cleaning tools designed to clean connectors residing in an adapter or faceplate and unmated connectors. The IBC™ Brand Cleaning tools use a novel dry cleaning strand to gently sweep and lift away dust and residues from the connector end face.

Features
• Audible “click” to alert the operator when tool is fully engaged
• Over 525+ engagements per unit
• Dry cleaning strand eliminates the need for solvents to be effective
• Impact resistant to survive drops over 1.5M

The MTP IBC™ (In Bulkhead Cleaner) is the first dry cloth cleaner specifically designed to clean the MTP/MPO while inside of an adapter, face-plate, or bulkhead. The unique design enables cleaning of either male (with pins) or female (without pins) MT ferrules. EASY PUSH STYLE WITH AUDIBLE CLICK.

The Senko brand SN/CS One-Click Cleaners offer dual cleaning of end faces and reduce cleaning times. They have self aligning cleaning tips for consistent cleaning performance of unmated and in adapter end faces. Both are RoHS and REACH compliant with no shelf life or restrictions on storage or shipments. Each model works for UPC and APC polished end faces. Most effective cleaning when inserted into adapter ports and transceiver ports in the up or down position. The cleaners lock  up at the end of life cycle alerting the operator that it is time to be reordered.

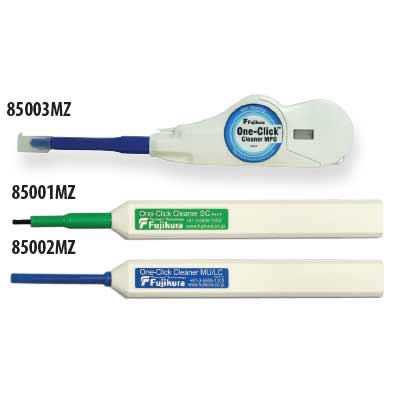

The One-Click Cleaner is an easy-to-use option for cleaning connectors in adapters. Simply insert the One-Click Cleaner into an adapter and push until an audible “click” is heard. The One-Click Cleaner uses the mechanical push action to advance an optical grade cleaning tape while the cleaning tip is rotated to ensure the fiber end-face is effectively, but gently, cleaned. The One-Click Cleaner is a must-have for field technicians. Small enough to fit in a shirt pocket and a great addition to cleaning kits.

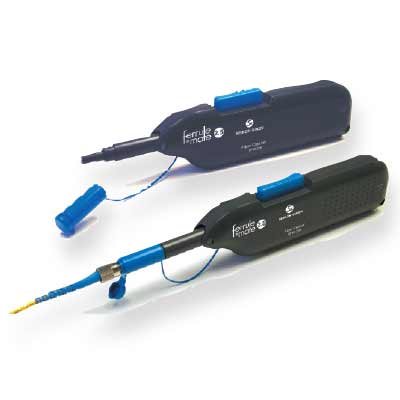

Wouldn’t it be great if you could limit your connector cleaning supplies to one versatile tool? You can, with Ferrule Mate™. The device cleans recessed fiber optic adapters as well as individual connectors. With the push of a button, the tool forwards and rotates the cleaning cloth. Cloth provides approximately 350 swipes, with a cost as low as 18 cents per cleaning. Use the SFM-250 for SC, FC, and ST. Use the SFM-125 for MU and LC.
