Copper Plates | Boxes | Jacks | Plugs | Panels
FIS Rack Mount Fiber Optic Swing-Out Patch Panels

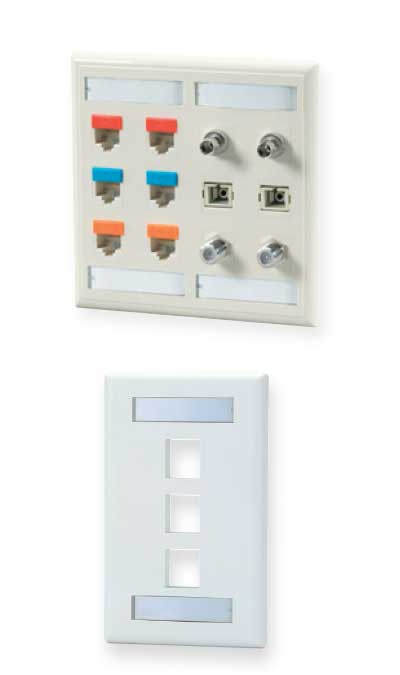

SIGNAMAX KEYSTONE FACEPLATES AND SURFACE MOUNT BOXES
Description |
Part # |
| Single Gang Surface Mount Faceplate Box | SKFD-1 |
| 1 port Single Gang Keystone Faceplate with Labeling Windows | SKFL-1 |
| 2 port Single Gang Keystone Faceplate with Labeling Windows | SKFL-2 |
| 3 port Single Gang Keystone Faceplate with Labeling Windows | SKFL-3 |
| 4 port Single Gang Keystone Faceplate with Labeling Windows | SKFL-4 |
| 6 port Single Gang Keystone Faceplate with Labeling Windows | SKFL-6 |
| 2 port Angled Single Gang Keystone Faceplate with Labeling Windows | SKFLA-2 |
| 4 port Angled Single Gang Keystone Faceplate with Labeling Windows | SKFLA-4 |
| 6 port Double Gang Keystone Faceplate with Labeling Windows | DKFL-6 |
| 12 port Double Gang Keystone Faceplate with Labeling Windows | DKFL-12 |
| 8 port Angled Double Gang Keystone Faceplate with Labeling Windows | DKFLA-8 |
| Single Gang Surface Mount Faceplate Box | SMB1-SG |
| Double Gang Surface Mount Faceplate Box | SMB1-DG |
| 1 port Surface Mount Multimedia Box | SMKL-1 |
| 2 port Surface Mount Multimedia Box | SMKL-2 |
| 4 port Surface Mount Multimedia Box | SMKL-4 |
[Note: The standard color for all the above is light ivory. For other colors add the following to the p/n -BK (Black), -GY (Gray), -WH (White)] (Faceplates also available without labeling window option.)
[Note: Stainless Steel Wall Plates also available]

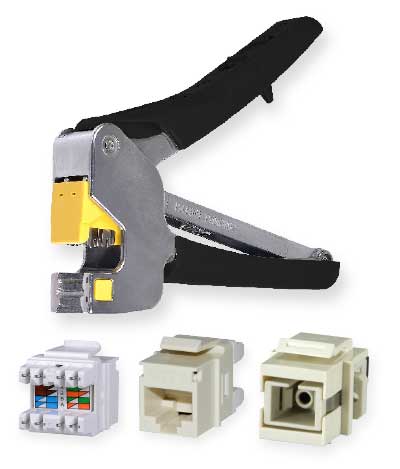

SIGNAMAX KEYSTONE JACKS AND FIBER CONNECTOR MODULES
Description |
Part # |
| 4 Pair Termination Tool for MT Series | KJMT-8600 |
| Cat 6A 10G MT Series Keystone Jack 568A/B Light Ivory | KJ458MT-C6AC* |
| Cat6A 10G Screened Keystone Jack 568A/B | KJS458MT-C6AC |
| Cat6+ MT Series Keystone Jack 568A/B Light Ivory | KJ458MT-C6C |
| Cat5E+ MT Series Keystone Jack 568A/B Light Ivory | KJ458MT-C5E* |
| Cat3 Voice Grade MT Series Keystone Jack Light Ivory | KJ126MT-C3** |
| Blank Keystone Module | CMK-BL** |
| F-Type Keystone Connector Module | CMK-F*** |
| BNC Keystone Connector Module | CMK-BNC*** |
| SVGH to 110 Connector Module | CMK-110SVHS** |
| ST MM/SM Fiber Connector Module | CMK-ST** |
| SC MM/SM Fiber Connector Module | CMK-SC** |
| LC MM/SM Fiber Connector Module | CMK-LC** |
*(Note: When ordering, other than Light Ivory color, add the following to the p/n: -BK (Black), -BU (Blue), -GN (Green), -GR (Gray), -OR (Orange), -RD (Red), -WH (White), -YE (Yellow))
UNSHIELDED RJ-45 MODULAR PLUGS
Description |
Part # |
| RJ-45 for 24AWG Stranded Cable - 100 Pack | KRJ45/5-100 |
| RJ-45 for 24AWG Solid Cable - 100 Pack | KRJ45/5SLD-100 |
| Cat6 RJ-45 for 24AWG Stranded Cable - 100 Pack | KRJ45/6-100 |
| Cat6 RJ-45 for 24AWG Solid Cable - 100 Pack | KRJ45/6SLD-100 |
| Cat 5e Unscreened Field Installable Modular Plug | KRJ45FT-C5E |
| Cat 6 Unscreened Field Installable Modular Plug | KRJ45FT-C6C |

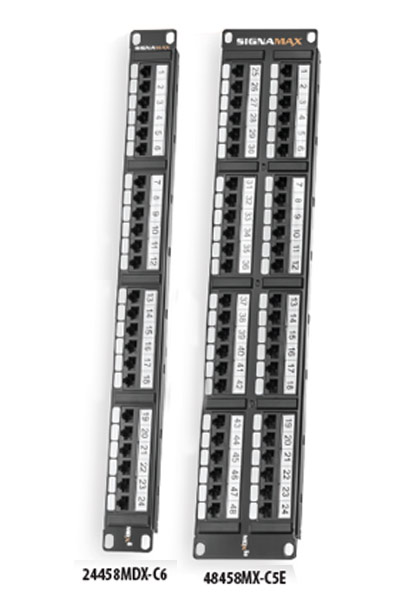

SIGNAMAX PATCH PANELS
Description |
Part # |
| Cat 6A 10Gig 1U, 19" Rack Mountable | 24458-C6A |
| Cat 6A 10Gig 2U, 19" Rack Mountable | 48458-C6A |
| Cat 6 24 port 1U, 19" Rack Mountable MDX-Series | 24458MDX-C6 |
| Cat 6 48 port 2U, 19" Rack Mountable MDX-Series w/ cable management | 48458MDX-C6 |
| Cat 5e 24 port 1U, 19" Rack Mountable MDX-Series w/ cable management | 24458MDX-C5E |
| Cat 5e 48 port 1U, 19" Rack Mountable MDX-Series w/ cable management | 48458MX-C5E |
| Cat 5e + 12 port Mini Wall Mount | 12458M-C5E |
| Cat6+12 Port Mini Wall Mount | 12458M-C6C |
| 24 Port Unloaded Patchpanel Accepts Keystone Jacks, 19" Rack Mountable | 24UHDMMP |
| 48 Port Unloaded Patchpanel Accepts Keystone Jacks, 19" Rack Mountable | 48UHDMMP |
[Note: Screened/Shielded Patch Pannels for Cat 5e, 6 and 6A also available.]
