Custom Ferrules
Manufactured Ferrules to Receive Oversized Variable Fiber Diameters
Many applications require ferrules only, or not mounted into the ST, SC, FC or SMA style connectors. Select from our “Stock Ferrule Sizes” that we offer in four sizes below, which provides the best tolerances at no minimum purchase. If your fiber diameter size requirements are different, see Standard and Premium selections below.

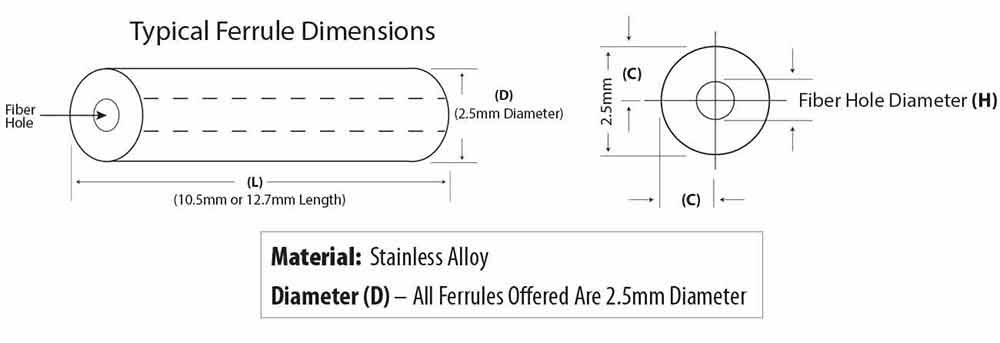

STOCK FERRULE SIZES
Fiber Hole Diameter (H) |
Hole Tolerance |
Concentricity (C) |
Length (L) |
Diameter (D) |
| 127µm | -2/+10µm | 25µm | 10.5mm & 12.7mm | 2.5mm |
| 140µm | -0/+10µm | 25µm | 10.5mm & 12.7mm | 2.5mm |
| 230µm | -0/+10µm | 25µm | 10.5mm & 12.7mm | 2.5mm |
| 1000µm | -0/+20µm | 25µm | 10.5mm & 12.7mm | 2.5mm |
Purchasing Information |
Minimum Purchase 25 | No Charge for Drill Bit If Inventoried | Add $50 If Not Listed and 6 week Lead Time $3.25 each | Quantity Discounts Available Ex: FD-SD-0500-105 (Standard Drilled Ferrule, 500µm, 10.5mm Length) |
STANDARD DRILLED FERRULES
Fiber Hole Diameter (H) |
Hole Tolerance |
Concentricity (C) |
Length (L) |
Diameter (D) |
| 127µm to 1300µm | -0/+50µm | 50µm | 10.5mm & 12.7mm | 2.5mm |
Purchasing Information |
Minimum Purchase 25 | No Charge for Drill Bit If Inventoried | Add $50 If Not Listed and 6 week Lead Time $3.25 each | Quantity Discounts Available Ex: FD-SD-0500-105 (Standard Drilled Ferrule, 500µm, 10.5mm Length) |
PREMIUM DRILLED FERRULES
Fiber Hole Diameter (H) |
Hole Tolerance |
Concentricity (C) |
Length (L) |
Diameter (D) |
| 127µm to 490µm | -4/+10µm | 25µm | 10.5mm & 12.7mm | 2.5mm |
| 500µm to 990µm | -6/+15µm | 25µm | 10.5mm & 12.7mm | 2.5mm |
| 1000µm to 1500µm | -10/+20µm | 25µm | 10.5mm & 12.7mm | 2.5mm |
Purchasing Information |
Minimum Purchase 500 | No Charge for Drill Bit If Inventoried | Add $50 If Not Listed and 6 week Lead Time $3.75 each | Quantity Discounts Available | $325 Setup for <500 Ex: FD-PD-0230-105 (Premium Drilled Ferrule, 230µm, 10.5mm Length) |
Note: Large Quantity Requirements of Different Diameter and Lengths Are Available.
Drill Sizes Inventoried
| 127µm | 210µm | 270µm | 330µm | 360µm | 440µm | 520µm | 580µm | 660µm | 740µm | 850µm | 1010µm | 1120µm |
| 130µm | 220µm | 280µm | 335µm | 370µm | 450µm | 525µm | 590µm | 670µm | 750µm | 860µm | 1015µm | 1200µm |
| 140µm | 225µm | 290µm | 340µm | 380µm | 460µm | 530µm | 600µm | 680µm | 760µm | 890µm | 1020µm | 1250µm |
| 150µm | 230µm | 295µm | 350µm | 390µm | 470µm | 540µm | 610µm | 690µm | 770µm | 900µm | 1030µm | 1270µm |
| 160µm | 240µm | 300µm | 330µm | 400µm | 480µm | 550µm | 620µm | 700µm | 800µm | 930µm | 1040µm | 1370µm |
| 170µm | 250µm | 310µm | 335µm | 410µm | 490µm | 570µm | 630µm | 710µm | 810µm | 970µm | 1050µm | 1500µm |
| 180µm | 260µm | 320µm | 340µm | 420µm | 500µm | 550µm | 640µm | 720µm | 830µm | 990µm | 1080µm | 1525µm |
| 190µm | 265µm | 325µm | 350µm | 430µm | 510µm | 570µm | 650µm | 730µm | 840µm | 1000µm | 1100µm |

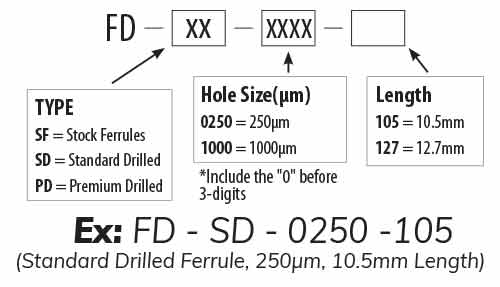

Creating Your 2.5mm Diameter Ferrule Part Number
