Epoxy

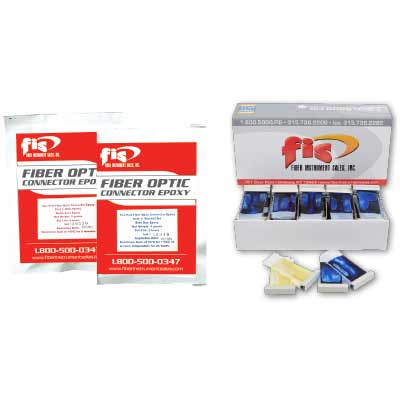

FIS EPOXY FOR CONNECTORIZATION
Each pre-measured two-part packet contains the proper ratio for connectorization. Every packet includes specific directions for use with fiber optic connectors. The 2 gram pack will prepare 25 - 35 connectors. The 4 gram pack will prepare 50 - 70 connectors.
Description |
Part # |
| Quick Cure, 5 Minutes at 100ºC, Potlife 90 Minutes - Single Pack | H05-100-RX |
| Blue Dye, 1 Hour at 60ºC or 30 Minutes at 80ºC, Potlife 45 Minutes - Single Pack | T60-065-BX |
| Room Cure, 30 Minutes at 23ºC, Potlife 5 Minutes - Single Pack | T120-023-CX |
| Heat Cure, 15 Minutes at 80ºC, Potlife 90 Minutes - Single Pack | H15-080-RX |
| Quick Cure - 50 Pack | H05-100-RX-50 |
| Blue Dye - 50 Pack | T60-065-BX-50 |
| Room Cure - 50 Pack | T120-023-CX-50 |
| Heat Cure - 50 Pack | H15-080-RX-50 |

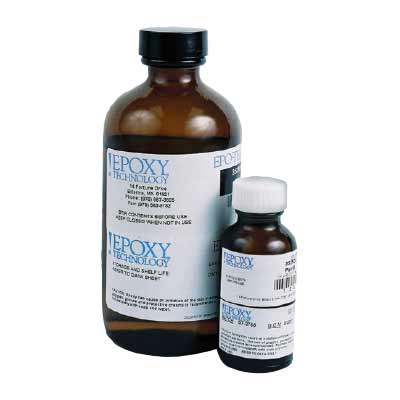

EPO-TEK EPOXY
The two-part EPO-TEK Epoxy is a favorite of many fiber optic users. The epoxy remains liquid until heat is applied. The application of heat provides a quick cure, turning the epoxy to a reddish-brown color. The EPO-TEK Epoxy will not react like other epoxies to coating applied to the larger core/clad diameter of specialty fibers.
Description |
Part # |
| EPO-TEK Epoxy (8 oz. Kit) | 353ND |
LOCTITE EPOXY / TRA-CON ECCOBOND EPOXY
The FIS Mini Cleaning Kit provides all of the essential cleaning supplies needed for fiber splicing and connector cleaning. Kit includes: (1) FIS Connector Cleaner,(1 pack of 50) 2.5mm Mini Foam Swabs, Cleaning Pen, (1 pack of 100) 4” x 4” Non Woven Dry Wipes, (1 pack of 100) 4” x 6” Alcohol Towelettes, (1 pack of 12) FIS Icky Clean, Carry Case
Description |
Part # |
| Loctite F123 - Quick Cure, 1 Hour at 60ºC or 30 Minutes at 80ºC, Pot Life Estimate 4 Hours, 2.42 gram | BAF123 |
| Loctite F253 - Quick Cure, 5 Minutes at 100ºC , Pot Life Estimate 1 Minutes, 2.5 gram | BAF253 |

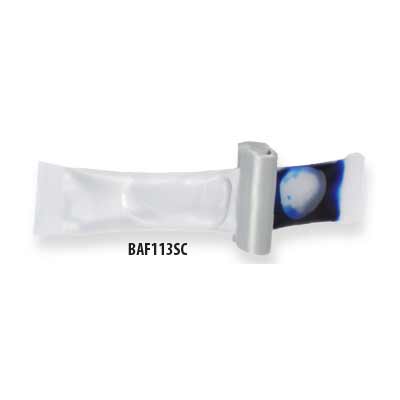

| Loctite F113SC - Blue Dye, 1 Hour at 65ºC or 18 Hours at 25ºC, Pot Life Estimate 35-60 Minutes, 2.5 gram | BAF113SC |
| Loctite F120 - Room Cure, 1 Hour at 65ºC or 24 Hours at 25ºC, Pot Life Estimate 5 Minutes, 2.5 gram | BAF120 |
| Loctite 112 - Blue Dye, 15 Minutes at 90ºC or 1 Hour at 65ºC or 24 Hours at 25 degrees, Pot Life Estimate 30-60 Minutes, 2.5 gram | BAF112 |
| Epoxy Mixer (Roller) | 501202-1 |

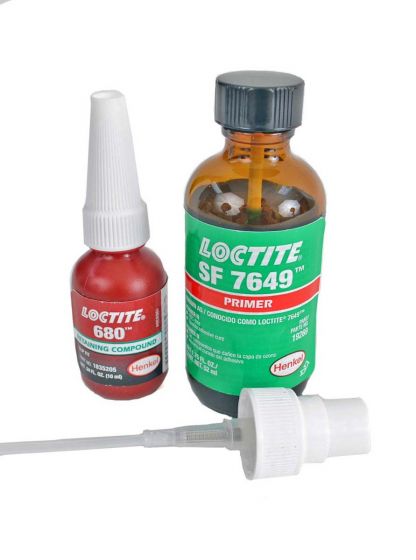

ANAEROBIC ADHESIVE
This two-part system self cures in minutes with no heat required. The retaining compound is injected into the connector with a syringe needle. Dip or spray the fiber with primer and connectorize as usual. Sets in 30 seconds, fully cured in minutes. Domestic ground shipment only.
Description |
Part # |
| Anaerobic Adhesive Hardener, 10 milliliter | 680 |
| Primer, 1.75 ounce | 7649 |
| Kit (Anaerobic Adhesive-10ml, Primer 1.75oz and Syringe Tip) | F1-ANAEROBICKIT |

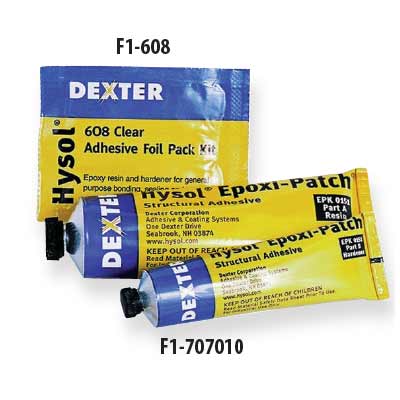

HYSOL EPOXY
Contained in two separate tubes or packets, the Hysol Epoxy can be heat or time cured. Hysol Epoxy is excellent for general connector use. A quick dry, 4 gram, mini packet is available for individual connector repair.
ULTRAVIOLET (UV) ADHESIVE
Description |
Part # |

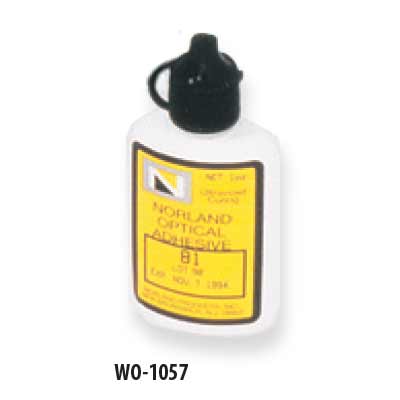

| UV Adhesive (1 oz. bottle) | WO-1057 |

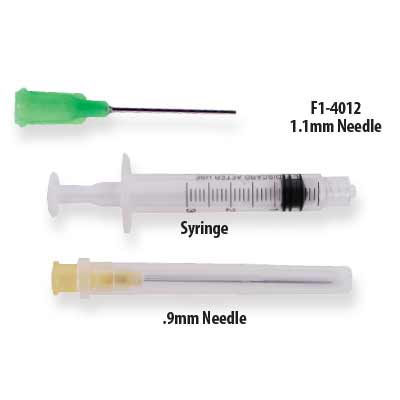

EPOXY APPLICATION SYRINGE
When assembling multiple fiber optic connectors, these Epoxy Syringes enable you to work quickly and efficiently. The included dispensers (needles) enable you to easily inject epoxy into connectors. Economically priced, they can be replaced the moment the epoxy is no longer easily workable. A larger diameter 1.1mm applicator needle is also available, F1-4012, which can be used with the 501473-3IR empty syringe.
Description |
Part # |
| Empty Syringe with .9mm Needle (5 pk.) | 501473-3IRC5 |
| Empty Syringe with .9mm Needle (25 pk.) | 501473-3IRC25 |
| Empty Syringe with .9mm Needle (100 pk.) | 501473-3IRC100 |
| 1.1mm Applicator Needle for CORNING/3M Connectors (25 pk.) | F1-4012 |
