Fan-Out And Breakout Kits

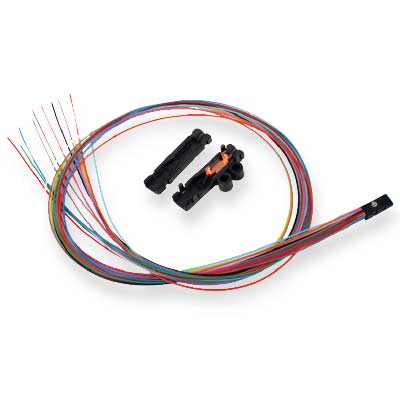

FIS Fan-Out Kits are designed for a simple and easy breakout from standard Buffer Tubes or Ribbon Cables. The kits are pre-configured for 4, 6 and 12 fiber applications with 25” and 36” lengths of 900µm Hytrel tubing in the appropriate industry-standard color code. FIS Fan-Out Kits have a unique snap-together design that offers the ability to unsnap the unit for reentry if necessary. Each kit comes with the adapters that accommodate round cable configurations, such as Buffer Tubes, and Ribbon Cables. This cost-saving feature allows you to cover your application possibilities with just one style.

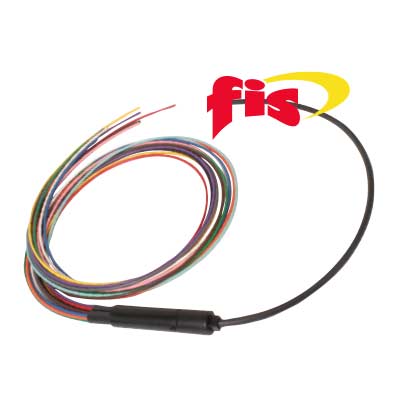

The FIS 2mm and 3mm Breakout Kits are designed for the quick and simple termination of distribution cables. Color coded tubing eliminates the need for marking individual fiber ends, as your cable will be color coded to TIA/EIA standards.

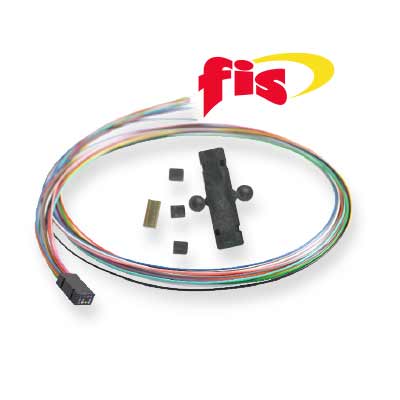

FIS Fan-Out Kits are designed for a simple and easy breakout from standard Buffer Tubes or Ribbon Cables. The kits are pre-configured for 24 fiber applications with 25” and 36” lengths of 900um Hytrel tubing in the appropriate industry standard color code. (4 Fiber, 6 Fiber and 12 Fiber Kits are also available) FIS Fan-Out Kits have a unique snap together design that offers the ability to unsnap the unit for re-entry if necessary. Each kit comes with the adapters that accommodate round cable configurations, such as Buffer Tubes, and Ribbon Cables. This cost saving feature allows you to cover your application possibilities with just one style breakout kit.

Ideal for indoor or outdoor crossconnects, these kits provide the most compact, easy-to install fan-out solution. The compact design requires no additional hardware. The 900μm fan-out assembly is color coded to match the fiber color scheme and is available in 6- or 12-fiber units in lengths of 25, 36 or 47 inches.

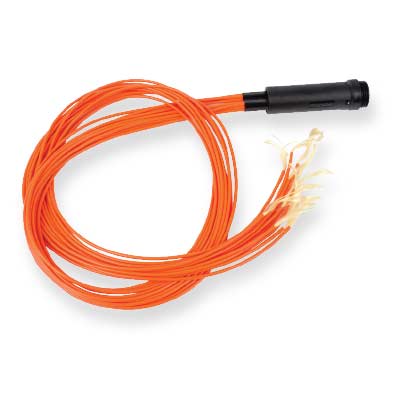

Corning® Spider Fan-Out Kits are designed for both factory and field terminations of distribution or loose tube cables from 4 to 24 fibers. The fan-out tubing provides three layers of protection consisting of a Teflon inner tube, a dielectric strength member and an outer protective PVC jacket.

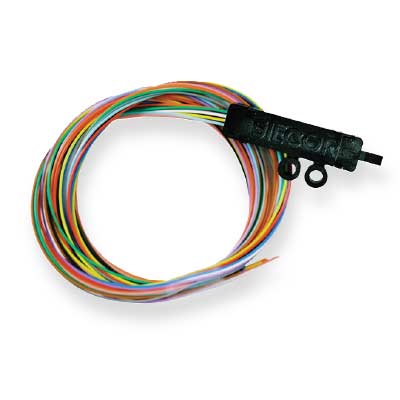

Corning® Cable Systems’ Ribbon Fan-Out Kits are specifically designed for the termination of 12-fiber ribbon. Kits feature a 900µm fan-out assembly that is color-coded to match the industry-standard color code.

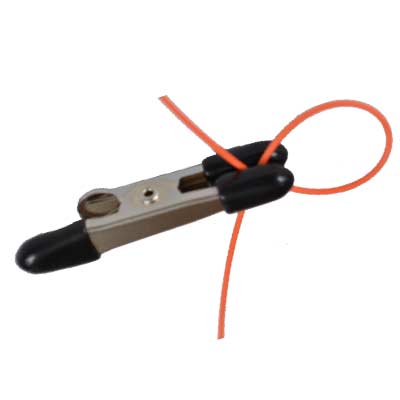

The Loose Buffer Splice Clip is a simple and easy way to get consistent splices when trying to fusion splice loose buffer fiber. This small clip prevents the fiber from pistoning while attempting a fusion slice.
