The kit contains everything you need to monitor a 10 acre perimeter. You receive a Zone Control Unit, 53 Mini Mouse trips, 4 Corner Guards, 3,000ft Fiber Fence fiber, zip ties, and an Instruction Manual. We can help with your design and other fiber optic tools and products.

Unlike a traditional electrical wire security system, an intruder cannot easily reconnect or bypass the optical fiber used in the FIBER FENCE Security System.

In the Splicing Kit, we provide you with all the necessary products and procedures that will give you the ability to reconnect or perform a splice to repair your system in the field. This can eliminate any additional service cost(s) that an outside technician may charge for repairs. The picture is an example of items contained in the Splicing Kit.

This kit contains (4) FIS Splice Protection Sleeves for Mechanical Splices, (4) 1/4" Copper Tube Straps, FIS Mini Visual Fault Locator with 2.5mm Adapter, FIS Field Termination Cleaver, FIS 3 Hole Jacket Stripper, (12) FIS Mechanical Splices, (24) FIS Isopropyl Alcohol Pre-Moistened Towelettes 4"x6", FIS Lab Splice Blister Pack of 12, Clear Super Glue Single Tube, FIS Logo Soft Case, Instruction Manual, 25 meters of Fiber Fence Cable with FC/UPC connector installed.

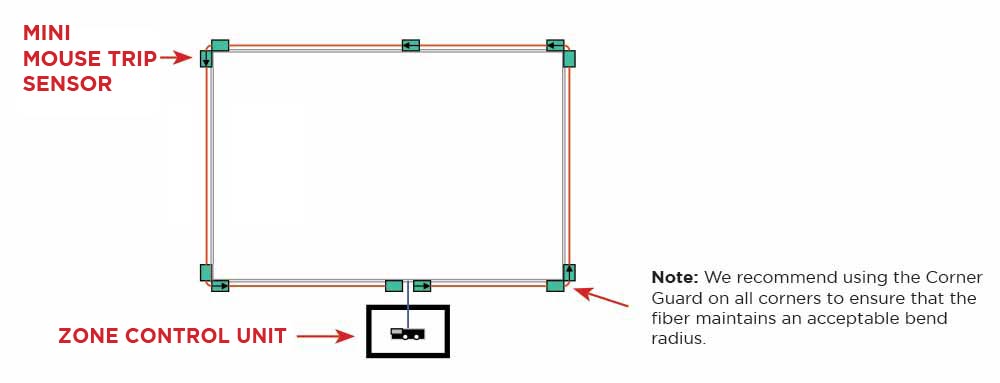

The Fiber Fence 10 Acre Protection Kit contains everything you need to monitor a 10-acre perimeter. Designed for flexibility, the Kit can protect any shape with up to 4 corners. It can be installed by the user using basic fiber optic and hand tools.  The optional Fiber Fence Splicing Kit is also available containing all the tools and instructions needed.

FEATURES

• Detects intrusions and fence damage with light

• Protects over long distances with fiber optic cable
• No risk of electric shock to livestock or wildlife
• Plugs into any standard 100v outlet
• Safe for use where volatile gasses or materials may be present
• 100% Immune to the effects of electromagnetic interference
• Can be used near critical equipment, utilities, and data networks
• Has features to connect to a remote audible or visual alarm
• Can be added as a zone to an existing alarm system
• User Installable Option
• Can expand to protect up to 10 miles of fencing

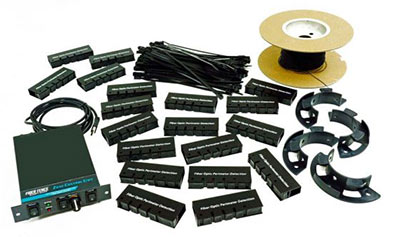

KIT CONTENTS

• Fiber Fence Zone Control Unit w/ power supply
• 53 Fiber Fence Mini Mouse Trips
• 3,000 feet Fiber Fence Simplex Fiber
• 4 Fiber Fence Corner Guards
• 60 Fiber Fence Double Headed Zip Ties
