Fiber Optic Outdoor Drop Cable Closures
FIS FTTx FIBER OPTIC INTERCONNECT ENCLOSURES

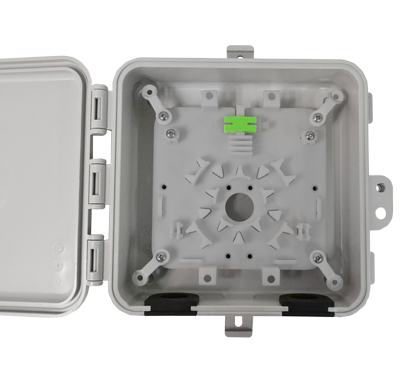

FIS NID Box, US-made in Oriskany, NY, was designed to provide protection for your fiber optic connectors and fusion splices in both indoor and outdoor environments. This enclosure allows you to choose which entry type grommet best fits your application and provides a unique cable management system for all types of FTTX cable, such as Flat & Round Drop Cable.
Description |
(HxWxD) |
Part # |
|
FIS NID Box, IP54 (Basic I/O Protection Rating) Cable Retention and Management Plate, 12 Splices, 12 Port Adapter Plate Compatible, No Adapters |
8" x 8" x 3" |
Z1NDCR54R-UU |
|
FIS NID Box, IP65 Rating, Cable Retention Cable Retention and Management Plate, 12 Splices, 12 Port Adapter Plate Compatible, No Adapters |
8" x 8" x 3" |
Z1NDCR-UU |
|
FIS NID Box, IP65 Rating,1 SC/APC Adapter, Cable Retention and Management Plate, 12 Splices, Ground Screw, Two U-Shape Grommets ,12 Port Adapter Plate Compatible (sold separately) |
8" x 8" x 3" |
|
|
12 SC/APC Adapter Plate for FIS NID |
8" x 8" x 3" |
Z1ND-MB01 |
|
12 Duplex LC/APC Adapter Plate for FIS NID |
8" x 8" x 3" |
Z1ND-MB03 |

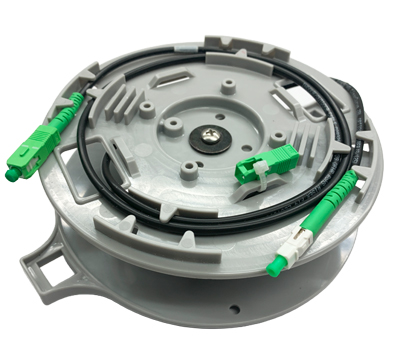

FIS FIBER SPOOL
Description |
Part # |
|
Fiber Spool, SCAPC-SCAPC Housing Removed on Pull End, 3mm IO, Black, 25FT |
FSPL-A3B1 |
|
Fiber Spool, SCAPC-SCAPC Housing Removed on Pull End, 3mm IO, Black, 50FT |
FSPL-A3B2 |
|
Fiber Spool, SCAPC-SCAPC Housing Removed on Pull End, 3mm IO, Black, 75FT |
FSPL-A3B3 |
|
Fiber Spool, SCAPC-SCAPC Housing Removed on Pull End, 3mm IO, Black, 100FT |
FSPL-A3B4 |

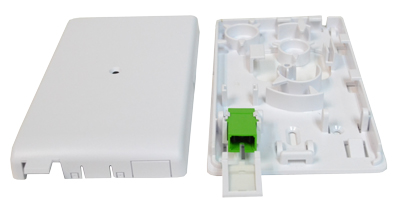

FIS IN-HOME FIBER WALL PLATE
• Adjustable SC/APC Adapter port for easy inspection and cleaning
• Snap on cover with security screw
Description |
Part # |
|
FIS/Enginuity Wall Plate. Built-in Shutter port, SC/APC Adapter Included, Color White |
Z1WP-XC01-W-XXX |
|
FIS/Enginuity Wall Plate. Built-in Shutter port, SC/APC Adapter and 1M Pigtail included, Color White |
Z1WP-XC01-W-XXA |

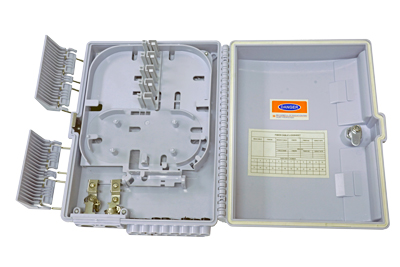

FIS ORION SERIES 16 PORT ENCLOSURE
The Orion Series 16 Port Enclosures is an outdoor enclosure designed for harsh environments in FTTx applications. Fiber splicing, splitting, and drop distribution can be completed inside this box offering solid protection and management for your network building.
Description |
(HxWxD) |
Mounting Options |
Part # |
| Orion Series Enclosure. 16 SC Ports/32 LC Ports. 1 Splice Tray Included, No Adapters or Pigtails | 11.5” x 8.5” x 3.25” | Pole/Wall | Z1-ORI16PT |
| Orion Series Enclosure. 1 Splice Tray Included (no adapter ports). Up to 5 Splice Trays. Pole or Wall Mount. | 11.5” x 8.5” x 3.25” | Pole/Wall | Z1-ORI16T |
| Orion Series Enclosure 16 SC Ports/32 LC Ports Wall Mount Only Splice Tray Included No Adapters or Pigtails | 11.5” x 8.5” x 3.25” | Wall | Z1-ORI16WM |

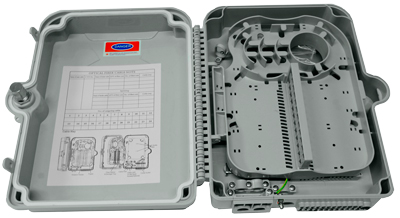

FIS ORION SERIES 24 PORT ENCLOSURE
The Orion Series 24 Port Enclosure is an outdoor enclosure made of a UV Resistant, anti-aging polycarbonate and designed for outdoor use. Fiber splicing, splitting, and drop distribution can be completed inside of this box offering solid protection and management for your FTTx Network.
Description |
(HxWxD) |
Mounting Options |
Part # |
| Orion Series Enclosure 24 SC Ports/48 LC Ports, Splice Tray Included, No Adapters or Pigtails | 13.5” x 8.75” x 3.75” | Pole | Z1-ORI24P |
| Orion Series Enclosure 24 SC Ports/48 LC Ports, Splice Tray Included, No Adapters or Pigtails | 12.5” x 9.5” x 3.95” | Pole/Wall | Z1-ORI24WM |

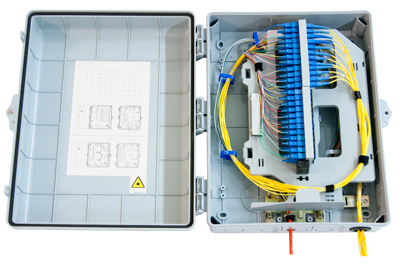

FIS ORION SERIES 32 PORT ENCLOSURE
The Orion Series 32 Port Enclosure is an IP65 Rated cabinet made with UV-resistant polycarbonate. Splice trays are included and mounted on the back wall behind the hinged adapter panels. All cable management accessories are included as well as grounding screw.
Description |
(HxWxD) |
Mounting Options |
Part # |
| Orion Series Enclosure 48 SC Ports/96 LC Ports with Splicing and Cable Management, No Adapters or Pigtails | 16.5” x 13.4” x 5.1” | Wall | Z1-ORI48 |
