Fiber Optic Pedestals

COYOTE Pedestals provide easy customization options to adapt to your fiber or copper splicing needs at each location in your network. Each pedestal is pre-assembled and can be configured to accept various fiber optic splice tray types, fiber or copper terminals, fiber cross-connect bulkheads, or management brackets for copper splices. In addition, the organizer can be removed and a slotted metal back plane can be inserted into the base to attach fiber closures and cabinets, such as the COYOTE PedBox®, to provide additional protection for your splices. The versatility that COYOTE Pedestals provide allow you to create the network you desire.

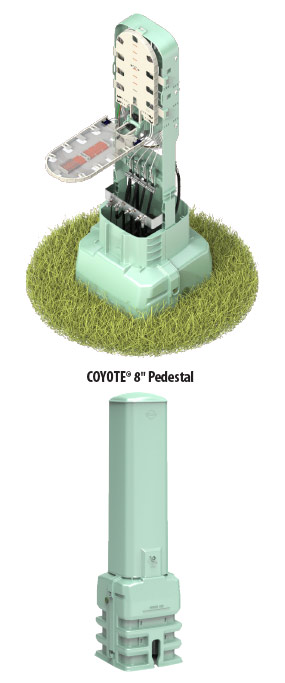

• Currently available in 8" size. 6" and 10" versions available

• Each pedestal size is pre-assembled with a base, automatic locking cover, and internal organizer with a grounding busbar

• Cover and base are manufactured out of a UV/FR stabilized polycarbonate that will withstand weathering

• Split base design for easy installation around pre-installed duct/cables and replacement of existing pedestals

• Automatic cover locking system (patent pending)

• Grounding busbar isolates connections and is equipped with a ground wire terminal (#4 – #10)

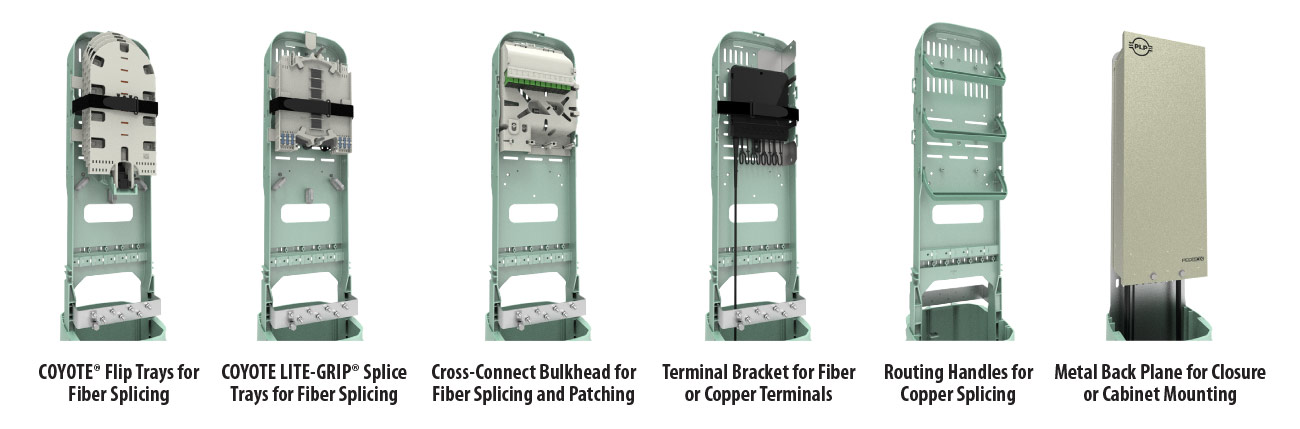

• Organizer can be configured for various fiber and copper applications - splicing, terminals, and cross-connect applications

• Organizer can accommodate COYOTE Flip Trays, LITE-GRIP® Splice Trays, and Legacy Splice Trays

• All fasteners are constructed of stainless steel to prohibit corrosion and can be secured or loosened with
common tools (216 can wrench, 1/4" nut driver, or Philips screwdriver)

• Designed in accordance to GR-13-CORE rated requirements
