Fiber Optic Rack Mount Swing-Out Patch Panel Enclosures

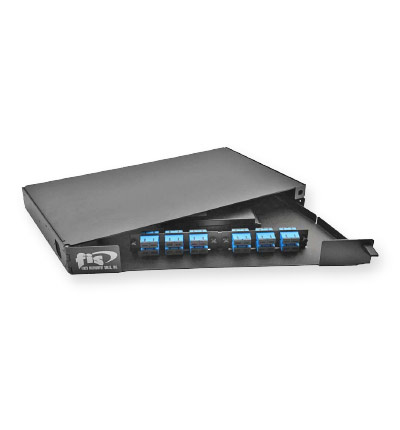

The 1RU FIS Swing Out Patch Panel accommodates (2) LGX adapter plates, modules or cassettes. The swing-out design offers easy access to the patch and splice bay. Multiple cable retention brackets and tie down spots allow for convenient cable management. These units can be flush mounted or mounted with 3.5” protrusion from the rack with no additional accessories. Rack mount installs into a standard 19” rack with included mounting hardware. Adapter plates and 23” mounting brackets are sold separately.

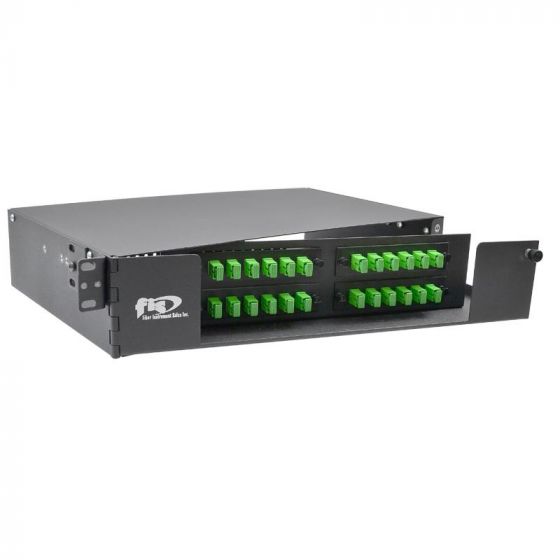

The 2RU FIS Swing Out Patch Panel accommodates (4) LGX adapter plates, modules or cassettes. The swing-out design offers easy access to the patch and splice bay. Multiple cable retention brackets and tie down spots allow for convenient cable management. These units can be flush mounted or mounted with 3.5” protrusion from the rack with no additional accessories. Rack mount installs into a standard 19” rack with included mounting hardware. Adapter plates and 23” mounting brackets are sold separately.

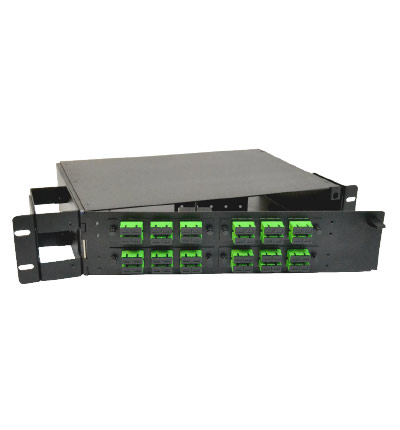

Designed to provide cabinet users front entrance access to the rear of fiber interconnect connectors with use of swing out panel. Includes a splice tray riser and two 24 fiber fusion splice trays. The attached side cable manager can accommodate cables or allow rear exit to the back of the cabinet where often chimneys are installed for routing cables from different bays. Interconnect utilizes standard LGX footprint adapter panels. Optional front lacing bar can dress cables to cable manager and secure them from being snagged or pinched in cabinet door. LGX Panels see page 70
