Fiber Optic Specialty Optical Assemblies

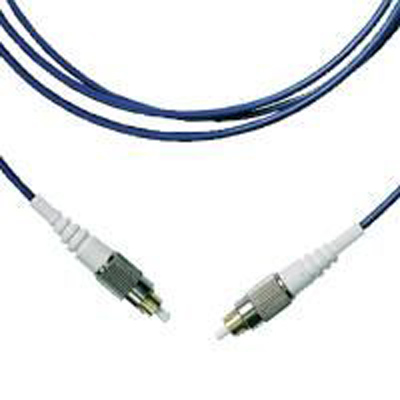

For polarization-sensitive applications, FIS offers PM patch cables with UPC or APC connector finishes. Available in 900µm and 3mm jacketed versions. Important specifications need to be discussed with FIS Sales Associate upon ordering, such as: Alignment (slow or fast axis) Fiber Specifications, Cable Jacket (900µm buffer or 3.0mm), whether or not the purchased PM assemblies will be used for splicing. Contact FIS for additional specifications and pricing on PM jumpers of various lengths. Specify Fibercore Limited PM fiber or Corning PM Fiber.

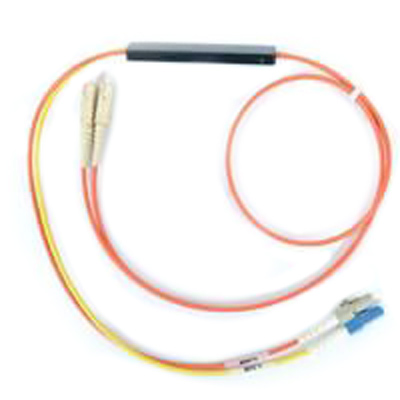

Mode Conditioning Patch Cable is used in conjunction with laser transmitters or VCSEL's for 1 Gb transmissions over FDDI fiber in fiber optic links to improve the transition bandwidth by the reduction of modal dispersion. These cords can be assembled in various configurations to meet your specific needs. Contact your FIS sales representative for pricing and delivery. Improve the performance of your network today.

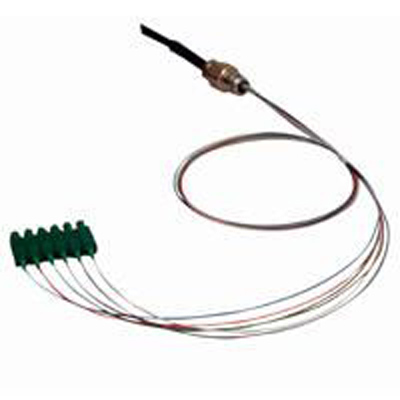

Fiber Instrument Sales’ Compact Node is an epoxy based optical node cable assembly. Designed for HFC applications and with the flexibility to fit aerial, pedestal and vault applications. Available in various custom configurations up to 12 fibers.

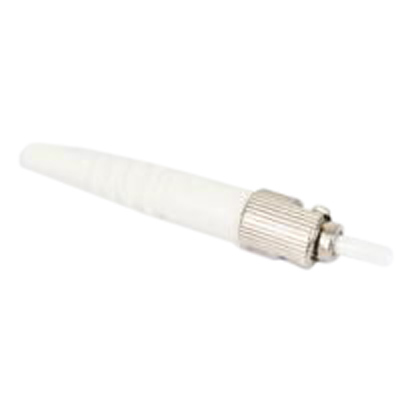

Low Reflection Terminators are designed for use in unused ports and to reduce back reflection into fiber optic systems. Each connector is environmentally sealed for protection. Back Reflection APC = -65dB UPC = -55dB

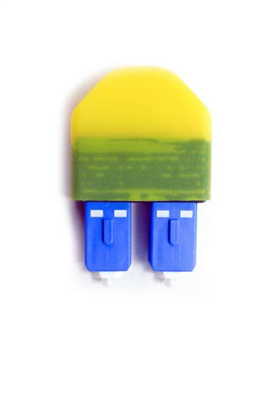

Loopbacks are designed for testing, engineering and the burn-in stage of boards or other equipment. They provide system test engineers a simple but effective way of testing the transmission capability and receiver sensitivity of network equipment.

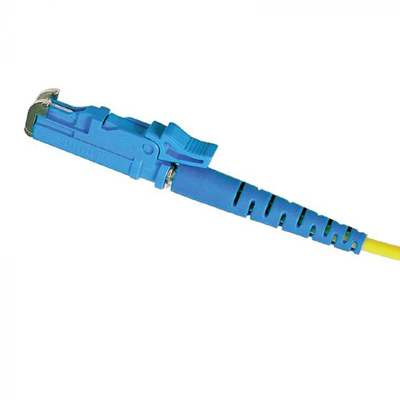

FIS offers Singlemode E2000 2.8mm cable assemblies. The E2000 comes with an integrated shutter system to protect the user from high-power laser emissions, and protects the connector from contamination.
Call for other configurations and lengths.
