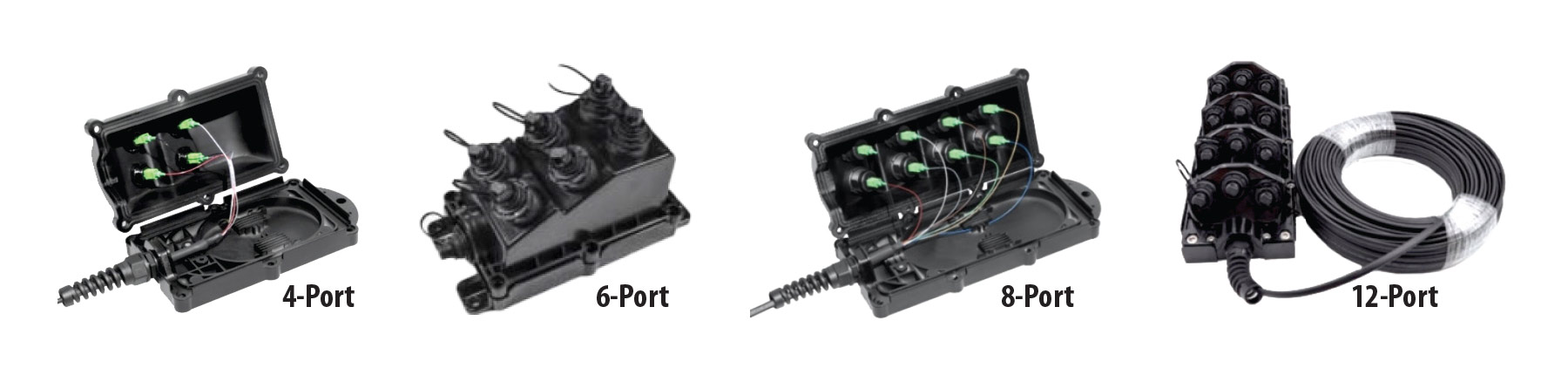

The EZnap System is a patent pending, no reel, no spool, kink free payoff system that comes packaged with a preconnectorized OmniPOD MST Enclosure. This GR771 rated MST incorporates hardened connector technology designed to defend against rugged outside plant environments. The robust and reliable system interface comes pre-loaded in a 2 port, 4 port, 6 port, or 12 port enclosure using FIS’ Single Stranded Tube Flat Drop Cable or OSP Dielectric or Armored cable.
Contact your FIS Sales Representative about all of our pre-loaded options which include cable assembly, number of drop ports, and PLC splitters.
| Description |
PORT |
Dimensions |
Part # |
| 4 port MST, OptiTap Compatible ports, Single Stranded Tube Flat Drop Pigtail, EZnap Box, 300FT | 4 | 7.90"x 4.75" x 3.35" | Z1-EZN-2-6004-CA-X-D-0300-X-0 |
| 4 port MST, OptiTap Compatible ports, Single Stranded Tube Flat Drop Pigtail, EZnap Box, 500FT | 4 | 7.90"x 4.75" x 3.35" | Z1-EZN-2-6004-CA-X-D-0500-X-0 |
| 4 port MST, OptiTap Compatible ports, Single Stranded Tube Flat Drop Pigtail, EZnap Box, 1,000FT | 4 | 7.90"x 4.75" x 3.35" | Z1-EZN-2-6004-CA-X-D-1000-X-0 |
| 6 port MST, OptiTap Compatible ports, Single Stranded Tube Flat Drop Pigtail, EZnap Box, 300FT | 6 | 7.90"x 4.75" x 3.35" | Z1-EZN-2-6006-CA-X-D-0300-X-0 |
| 6 port MST, OptiTap Compatible ports, Single Stranded Tube Flat Drop Pigtail, EZnap Box, 500FT | 6 | 7.90"x 4.75" x 3.35" | Z1-EZN-2-6006-CA-X-D-0500-X-0 |
| 6 port MST, OptiTap Compatible ports, Single Stranded Tube Flat Drop Pigtail, EZnap Box, 1,000FT | 6 | 7.90"x 4.75" x 3.35" | Z1-EZN-2-6006-CA-X-D-1000-X-0 |
| 8 port MST, OptiTap Compatible ports, Single Stranded Tube Flat Drop Pigtail, EZnap Box, 300FT | 8 | 11" x 4.75"x 3.35" | Z1-EZN-2-1208-CA-X-D-0300-X-0 |
| 8 port MST, OptiTap Compatible ports, Single Stranded Tube Flat Drop Pigtail, EZnap Box, 500FT | 8 | 11" x 4.75"x 3.35" | Z1-EZN-2-1208-CA-X-D-0500-X-0 |
| 8 port MST, OptiTap Compatible ports, Single Stranded Tube Flat Drop Pigtail, EZnap Box, 1,000FT | 8 | 11" x 4.75"x 3.35" | Z1-EZN-2-1208-CA-X-D-1000-X-0 |
| 12 port MST, OptiTap Compatible ports, Single Stranded Tube Flat Drop Pigtail, EZnap Box, 300FT | 12 | 11" x 4.75"x 3.35" | Z1-EZN-2-1212-CA-X-D-0300-X-0 |
| 12 port MST, OptiTap Compatible ports, Single Stranded Tube Flat Drop Pigtail, EZnap Box, 500FT | 12 | 11" x 4.75"x 3.35" | Z1-EZN-2-1212-CA-X-D-0500-X-0 |
| 12 port MST, OptiTap Compatible ports, Single Stranded Tube Flat Drop Pigtail, EZnap Box, 1,000FT | 12 | 11" x 4.75"x 3.35" | Z1-EZN-2-1212-CA-X-D-1000-X-0 |
The EZfi Solution is a patent-pending, no reel, no spool, kink-free payoff system that comes packaged with a minimum of a NID and drop cable, and options for an I/O cable, wall plate, and fiber patch cable for connector to an indoor ONT. Custom Lengths Available.
| Description |
Dimensions |
Part # |
| FIS 1F Flat Drop Cable, Toneable 500FT, OptiTap to Pigtail, EZFi Box | 17.5"x17.5"x9.5" | Z1-EZF-1-FT-1-0500-AX-X-X-000-000-X |
| FIS 1F Flat Drop Cable, Toneable 500FT, OptiTap to SC/APC to NID, EZFi Box | 17.5"x17.5"x9.5" | Z1-EZF-2-FT-1-0500-AJ-1-X-000-000-X |
| FIS 1F Flat Drop Cable, Toneable 500FT, OptiTap to SC/APC to NID, I/O Assembly 25FT, EZFi Box | 17.5"x17.5"x9.5" | Z1-EZF-3-FT-1-0500-AJ-1-2-025-000-X |
| FIS 1F Flat Drop Cable, Toneable 500FT, OptiTap to SC/APC to NID, I/O Assembly 25FT, Wall Plate, 3FT Patchcord, EZFi Box | 17.5"x17.5"x9.5" | Z1-EZF-5-FT-1-0500-AJ-1-2-025-003-1 |
Email or Call a FIS FTTx Representative With Any Questions:
FTTX@fissales.com | 1-800-5000-FIS(347)
| Description |
Dimensions |
Part # |
| Zeus MST Box 4 Port, with SC/APC - Pigtail, 100' |
9" x 4.75" x 3.50" |
Z1-MST-04-YA-P-100 |
| Zeus MST Box 4 Port, with SC/APC - Pigtail, 250' |
9" x 4.75" x 3.50" |
Z1-MST-04-YA-P-250 |
| Zeus MST Box 4 Port, with SC/APC - Pigtail, 500' |
9" x 4.75" x 3.50" |
Z1-MST-04-YA-P-500 |
| Zeus MST Box 4 Port, with SC/APC - Pigtail, 1000' |
9" x 4.75" x 3.50" |
Z1-MST-04-YA-P-1000 |
| Zeus MST Box 6 Port, with SC/APC - Pigtail, 100' |
9" x 4.75" x 3.50" |
Z1-MST-06-YA-P-100 |
| Zeus MST Box 6 Port, with SC/APC - Pigtail, 250' |
9" x 4.75" x 3.50" |
Z1-MST-06-YA-P-250 |
| Zeus MST Box 6 Port, with SC/APC - Pigtail, 500' |
9" x 4.75" x 3.50" |
Z1-MST-06-YA-P-500 |
| Zeus MST Box 6 Port, with SC/APC - Pigtail, 1000' |
9" x 4.75" x 3.50" |
Z1-MST-06-YA-P-1000 |
| Zeus MST Box 8 Port, with SC/APC - Pigtail, 100' |
12" x 4.75" x 3.50" |
Z1-MST-08-YA-P-100 |
| Zeus MST Box 8 Port, with SC/APC - Pigtail, 250' |
12" x 4.75" x 3.50" |
Z1-MST-08-YA-P-250 |
| Zeus MST Box 8 Port, with SC/APC - Pigtail, 500' |
12" x 4.75" x 3.50" |
Z1-MST-08-YA-P-500 |
| Zeus MST Box 8 Port, with SC/APC - Pigtail, 1000' |
12" x 4.75" x 3.50" |
Z1-MST-08-YA-P-1000 |
| Zeus MST Box 12 Port, with SC/APC - Pigtail, 100' |
16" x 4.75" x 3.50" |
Z1-MST-12-YA-P-100 |
| Zeus MST Box 12 Port, with SC/APC - Pigtail, 250' |
16" x 4.75" x 3.50" |
Z1-MST-12-YA-P-250 |
| Zeus MST Box 12 Port, with SC/APC - Pigtail, 500' |
16" x 4.75" x 3.50" |
Z1-MST-12-YA-P-500 |
| Zeus MST Box 12 Port, with SC/APC - Pigtail, 1000' |
16" x 4.75" x 3.50" |
Z1-MST-12-YA-P-1000 |
