FIS Test Equipment

The ATLAS OTDR by FIS is the perfect handheld testing device for a range of fiber optic applications. With a dynamic range of 26dB it can test through a 1x8 splitter for FTTH applictions. It has an on-board Visual Fault Locator, Power Meter, Light Source; having the capability of an all-in one optical loss test set (OLTS). The ATLAS OTDR stores files in the commonly used .SOR format and comes with reporting software that will print large batches of OTDR scans into professional, easy to read PDF reports. What’s also included is our user friendly graphical mapping software or called “gMAP”. This alternative OTDR scan allows even the most inexperienced user to easily interpret the information needed to identify, troubleshoot and verify the important characteristics of a fiber optic cable installation.

Product Features

• Copper Continuity Tester Module
• Onboard Features: Power Meter, Light Source, VFL, OTDR, Graphical Event Map Display, Fiber Inspection (Optional)
• Filtered 1560nm LIVE/Filtered available
• 4.3-inch TFT touch screen.
• SC & FC interchangeable adapters
• Handheld ( 6.9” x 4.1” x 1.8” )

The FIS Firecat OTDR provides an industry-leading value with its low cost and easy functionality. This unit is perfect for both inexperienced and experienced technicians alike with its simple on-screen ‘soft key menus’. By providing the essentials for fiber optic troubleshooting, this OTDR is the perfect tool for basic link troubleshooting and is affordable enough for every truck, office, or tool kit.

Accessories

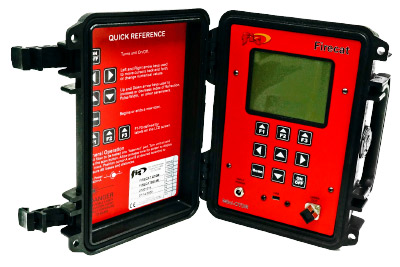

The FIS Firecat OTDR is offered in a ruggedized version.

Accessories

Fully operational OTDR with functions that enable complete trace analysis and automatically displays the event table that simplifies the operator's data collection. Power Meter input providing a reading showing dBm power and dB loss with zero/reference capability. Visual Fault Locator that is most commonly used to visibly identify continuity, bends or breaks in the cable. NEW Enhanced Reporting Software capability to provide Pass/Fail certification reports. Endface Inspection Probe (Optional) USB inspection probe plugs right into the unit.

Product Features

• Singlemode or Quad (SM/MM) Versions Available
• 36dB Dynamic Range
• Trace Overlay for Macro Bend Detection
• 9 Pulse Widths
• Gigabit Analyzer
• 8 Gigs of Storage
• 6.5” Color LCD Screen
• Available with SC, ST, or FC test port
• Unit Dimensions: 16.5"(L) x 7.5"(H) x 4"(W)

Additional Product Features

• Fully operational OTDR with functions that enable complete trace analysis and automatically displays the event table that simplifies the operator's data collection.

• Power Meter input providing a reading showing dBm power and dB loss with zero/reference capability.

• Visual Fault Locator that is most commonly used to visibly identify continuity, bends or breaks in the cable.

• Enhanced Reporting Software capability to provide Pass/Fail certification reports.

• Endface Inspection Probe (Optional) USB inspection probe plugs right into the unit.

• Link Checker with a quick and easy push of a button a technician reads a display of critical measurements including fiber link length and attenuation. Get results in 5 seconds. Tests at 1550nm - This feature is only available for Singlemode testing.

• Gigabit Analyzer identify the fiber type and plug in. The unit measures length, dB loss, back reflection and compares to the fiber manufacturer's standards to determine if bandwidth requirements pass. Does not generate or evaluate an actual signal.

ThunderBolt Test Kits

These special FIS made test kits allow the user to perform OTDR scans as well as take accurate dB loss readings for end-to-end link verification. The kit includes the standard version of our ThunderBolt OTDR, a power meter & light source kit with reference cords, a mini-VFL, and a special cleaning kit.

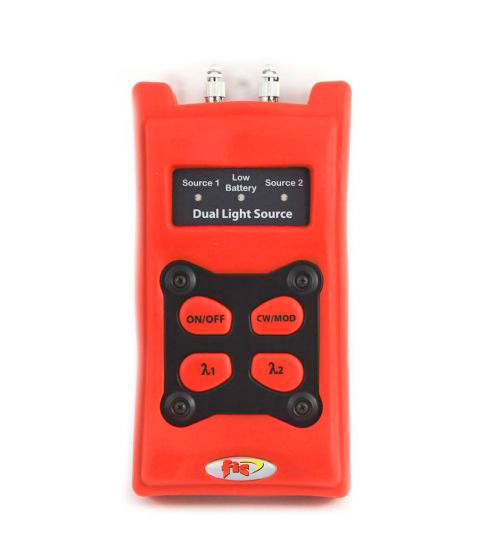

Our fiber optic test kit, proudly manufactured in Upstate NY, includes a power meter calibrated for six wavelengths and a unique duplex LC/UPC optical light source. The fixed duplex LC port allows independent operation of 1310 & 1550nm wavelengths. With a 2kHz tone modulation for fiber identification, the kit comes complete with a connector ferrule cleaner and necessary accessories for dB loss testing. Kit Contents: FIS Power Meter, FIS Dual SM Light Source(1310/1550), FIS Connector Cleaner, Patch cords (2 each - LC, SC, and ST, Mating Sleeves (2 each - LC, SC and ST), Soft Carry Case and User Manual.

• Power Meter is calibrated for: 850/1300/1310/1490/1550/1625nm
• Power Meter comes with SC,ST,FC & LC switchable adapters
• Light Source operated at 1310 & 1550nm
• Light Source has fixed LC duplex port w/shutter & soft protector case

This rugged, weather and shock resistant MPO VFL for Multimode or Singlemode cable assemblies is a great troubleshooting tool that is needed to establish or confirm polarity, continuity, and macrobends within an MPO optical system. If no breakout cassette is present, the polarity verifier unit (F1-OPV), when used on the far end of a MPO/MTP cable can provide the user a quick, safe and easy determination of continuity and polarity of the fibers within the MPO cable assembly. This new one of a kind product is a must for any pre- and post-installation technician!

The new FIS Mini MPO Visual Fault Locator is able to test all channels utilizing two sources with source "A" lighting up channels 1 thru 6 and source "B" lighting up channels 7 thru 12. As with most MPO networks, continuity and polarity verification can prove challenging and time consuming. Traditional methods involve expensive breakout cables and single fiber visual fault locators, checking only one channel at a time. The new Mini MPO Visual Fault Locator made by FIS, allows the user to quickly ensure the proper continuity of all channels of the MPO cable with visible light. Its handheld design, coupled with its straight forward easy to use keypad interface will determine if all channels are properly installed.

With the steady increase of utilizing 40 and 100 Gig systems using Multimode MPO assemblies, the “SR4” polarity verifier has proven to be a very useful setup around the industry.  As with most MPO networks, continuity and polarity verification can prove challenging and time-consuming.  Traditional methods involve expensive breakout cables and single fiber visual fault locators, checking only one channel at a time.  The new SR4 Visual Verifier made by FIS, allows the user to quickly ensure the proper continuity of the first four and last four channels of the MPO cable with visible light.  Its handheld design, coupled with its straightforward easy to use keypad interface will determine if all channels are properly installed.

As an accessory, the Optical Polarity Verifier can be used to confirm proper continuity with SR4 configurations if an MPO breakout cassette is not available. It is also utilized in confirming A, B, and C polarities in traditional MPO networks.

The FIS Fiber Optic Pocket Fault Locators are designed to be rugged, compact, and lightweight. These units are 7.1" in length and weigh approximately 4.5oz. With a 30-hour battery life in continuous mode and 40 hours in modulated mode, the bright 650nm (red) laser which has a range of up to 5Km ensures the fast and easy location of fault points within fiber optic patchcords, patch panels, and enclosures. They can also be used to identify fibers in multi-fiber cables, and it is designed for both singlemode and multimode fiber optic applications. These units are shipped with two "AA" batteries and a belt holster.

This adapter allows you to convert the 2.5mm adapter on your VFL into a 1.25mm ferrule typically for LC style connectors.

Fiber Instrument Sales introduces its Dual Source Visual Fault Locator specially made for duplex LC connectors. Because LC connectors are commonly clipped together this product eliminates the common mistake that is made of crossing Tx and Rx patch cords to active equipment. This unit allows the user to toggle between the “A” and “B” sources to ensure that everything is properly connected.

Each Unit Includes: Carrying pouch, 9V Battery, User Manual, One Year Warranty

The FIS Visual Fault Locator is an essential tool for troubleshooting a fiber optic system. A 1mW packaged laser sends a 650nm visible red light down the length of the fiber. The escaping light allows easy identification of breaks or severe macro bends. Internal optics are used to optimize the unit’s performance for either singlemode or multimode applications. Fiber end identification and continuity testing for long distances are also natural applications.

Each Unit Includes: Manual, (1) 9v Batteries, and Carry Case.

A Continuity Tester enables you to easily verify light throughput as the LED transmits red light down the fiber, providing visual identification at the fiber’s far end. Operates with two “AA” size batteries (provided).
Recommended for Multimode Use Only. Each Unit Includes: Tester and (2) AA Batteries.

This 12 Fiber MPO/MTP Test Set will provide the technician with link attenuation readings over all 12 fibers of the MPO/MTP ferrule in 10 seconds. MPO/MTP connectors are growing in popularity so the ability to measure efficiently, quickly and accurately the correct location of each fiber and its attenuation can assist technicians with certification. The test set will recognize A, B or C polarity wiring configurations used in the industry. Includes (2) MPO to MTP® PRO reference cables, and reporting software. *MPO/MTP to LC Breakout cable available upon request

FIS MPO Test Set is offered in a ruggedized version.

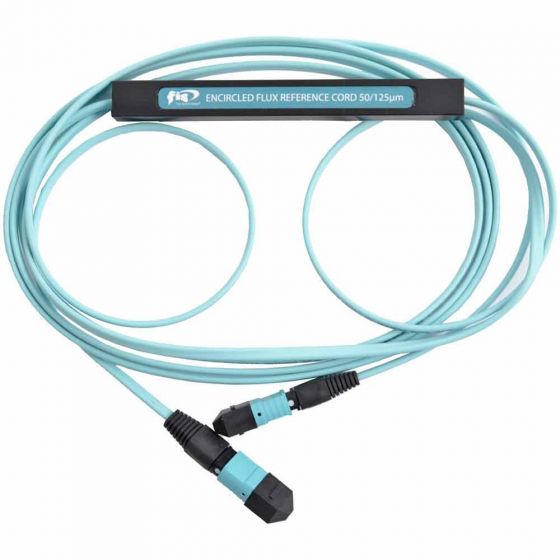

Ever increasing network speeds and tighter loss budgets make qualifying multimode fiber links a formidable challenge. Part of the challenge can stem from test instruments. In some scenarios different test instruments can produce different measurement results on the same network due to variations in launch conditions between test sources. Encircled Flux (EF) standards, TIA-526-14-B and IEC 61280-4-1 Ed. 2.0, define a method of controlling multimode launch conditions for optical test sources. More consistent test source launch conditions equate to more accurate and repeatable measurements. This is the goal driving the migration to encircled flux standards.

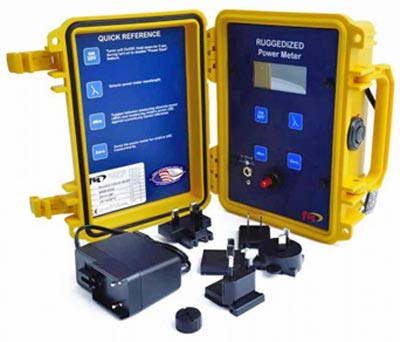

FIS Ruggedized Loss Test sets are designed to withstand outdoor field environments where traditional handheld units are not appropriate. Units are available for both multimode and singlemode applications and run on re-chargeable NiCd batteries. Please specify ST or FC adapter style when ordering any FIS Ruggedized Test Equipment. The Power Meter has an easy to read LCD display and germanium detector incorporating three wavelength (850nm, 1300nm, 1550nm) measurement capability. The Light Source is a dual wavelength source with a continuous wave or 2KHz modulation. The 850nm and 1300nm light source is for multimode applications. The 1310nm and 1550nm Light Source is for singlemode applications.

Purchase our handheld series power meter and light source kit. They come in either Singlemode, Multimode, or Quad versions. Included are a carrying case, reference cords, mating sleeves needed for testing SC, ST, and LC terminated cables, operating manuals, and batteries. The Power Meters are supplied with universal 2.5mm and 1.25mm adapter caps. Other interchangeable adapters are available for purchase separately.

A power meter is the essential tool for measuring optical power within a fiber optic link. The FIS
Power Meter is a solid performer, with 0.01dB resolution. Standard FIS units test from +5dBm to
-65dBm, and FIS CATV units test from +23dBm to -45dBm.
Each Unit Includes: Operating Manual, 9V Battery, 2.5mm and 1.25mm Adapters, and Carry Case.

The FIS Light Source is the perfect match for the FIS Power Meter. Singlemode units are equipped with lasers having a typical output power of -1.0dBm. Multimode units have LED’s with a minimum output of -17dBm.
Each Unit Includes: Operating Manual, 9V Battery and Carry Case.

The new FIS E-Series Power Meter and Light Sources are also available in kits. These kits come in either Singlemode, Multimode or Quad versions with carrying case and mating sleeves needed for testing SC, ST and LC terminated cables. Reference cords include (2) of each: SC/SC, SC/LC and SC/ST. Multimode and Quad Kits include OM1 and OM3 reference cords with 62.5µm and 50µm mandrels.

The FIS E-Series Power Meter and Light Source provide an industry leading value for handheld test gear. With a new design for ease of use, LED backlight and referencing, technicians will have no problem testing and trouble shooting fiber optic links. Data Save version includes PC reporting software.

Each Unit Includes: Operating Manual, (3) AA Batteries, interchangeable SC, FC, ST adapters; LC adapter for PM only and Carry Case.

The FIS Fiber Ranger is portable, rugged, lightweight, and easy to use. Up to 8 fiber faults can be detected in each measurement. It comes with an automatic pulse width control design to ensure a convenient operation. It is easy to identify the fault's location. It offers live fiber detection and comes with a built-in visual fault locator (VFL), to conveniently find the faults in a dead zone.

The FIS Fiber Optic Talk Set units are designed for transmitting voice in both directions on a single fiber using two different wavelengths. Works with SM or MM fiber. Units include adjustments for power and sensitivity. The Talk Set comes standard with SC and FC interchangable adapter ports. These sets have a dynamic range up to 45dB. Finally, each Talk Set comes equipped with a stereo headset with boom microphone, providing comfort for long-term use and high performance.
Talk Set includes: (2) Units, (2) Headphones with Microphone, (6) AA Batteries

The use of mandrels in multimode insertion loss testing helps to ensure the proper launch condition into the fiber under test. By wrapping the fiber around the correct size mandrel, high order modes are stripped out and low order modes are spread out to achieve the desired launch conditions for testing. Each includes the mandrel and clip for holding the cable firmly in place during testing. Accepts jacket diameters from 1.6mm to 3.0mm and for use with both OM1, OM2 cable. When testing Corning CleareCurve fiber it requires a smaller 4mm radius mandrel which is available.

This Fiber Inspection Probe, our newest offering at FIS, is loaded with features at a comparably low cost. The ergonomic hand held design can be used in a completely vertical/horizontal fashion or it can fold inward to about a 45 degree angle allowing it to be used in a number of positions within anenclosure or patch panel.

With the push of one button the probe will lock onto the connector end faceimage, automatically center and focus it and then analyze it against theindustry I.E.C. end face inspection criteria to display a PASS or FAIL. The probehas a WiFi USB adapter that can be used to transfer saved data wirelessly to a laptop or computer. USB hardwire connection also is available.

FEATURES

• Auto-Focus, Auto-Centering, with Pass/Fail Analysis
• Unit comes included with 2.5mm & 1.25mm UPC patch cord tips and UPC SC & LC bulkhead tips
• APC and MPO tips available upon request
• Convenient LED flashlight on-board

This American made high resolution benchtop microscope for inspecting connector end faces works great with large core fiber or standard optical fiber. It is made with a powder coated aluminum housing that will sit firmly on any surface for your benchtop/laboratory set up. This microscope is available in 200x or 400x magnification power and includes an interchangeable 2.5mm universal adapter which allows for the inspection of SC, ST, and FC connectors. This microscope allows the user to manually center the image by turning the easily accessible centering adjustment knobs, so you’ll never have to tolerate an off-centered image. Simply plug the microscope into a laptop or PC's USB port, the microscope can use the computer's built in camera app (Win10 & Win11) to display the magnified image of the ferrule endface. The FIS Video Microscope can also be viewed on most USB enabled tablets and cell phones using free viewing apps (call for details). Note: the tablet battery life between charges will be reduced when attached to microscope. Each Unit comes with: (1) Video Microscope, (1) 2.5mm universal adapter

• Coaxial LED Lighting
• 200X and 400X versions available.
• 2.5mm Universal Adapter (Included)
• Other Additional Adapters Available (See Below)
• User Adjustable Image Centering
• Optional Andriod Tablet Available (Call your FIS Representative for Information)

FIS PROBE ADAPTER TIPS FOR FIS INSPECTION PROBE *Call For More Tip Options

MONITOR MODULE
• 3.5” TFT-LCD Screen with adjustable brightness and contrast
• 9.6V battery pack and AC power supply (4hr Life)
• Includes charger adapters for US, EU, UK
and Australian standard

HANDHELD VIDEO INSPECTION PROBE
• 400x Magnification
• Resolution – 0.5µm detectable
• Manual focus adjustment
• Kits come with SC and LC male and female (bulkhead) probe tips

FEATURES
• Fast, easy focus with one hand operation
• USB version for use in laptop or PC
• Comprehensive line of tips for both
PC and APC type connectors

FIS PROBE ADAPTER TIPS FOR FIS INSPECTION PROBE *Call For More Tip Options

The FIS Video Microscope is a natural choice for fast-paced production environments, where ease of use and fast, accurate inspections are a necessity. The microscope offers a high-resolution look at the end face of most standard connectors, with a choice of either 200x or 400x magnifications. The optics and internal components are designed to be rugged and reliable, with no user-serviceable parts.
Each Package comes with: (1) Video Microscope, (1) 10” LCD monitor (monitor sizes may vary), (1) 6’ Video Cable, (1) 2.5mm Universal Adapter only

The FIS Universal Microscope is provided with a 2.5mm universal faceplate. Insert the ferrule into the microscope and inspect the end face with ease. This complete 100x microscope is perfect for multimode connectors and is easy to use.

Utilize this compact scope to inspect connector ferrule end faces for dirt, debris or oils that may interfere with signal transmission. Scope has both Oblique and Coaxial white LED lighting.
Includes: Microscope,(3) 1.5v LR44 Button Batteries, 2.5mm adapter, 1.25mm adapter

These low cost, high quality microscopes are available in 200x or 400x magnification, and utilize white LED light to provide coaxial illumination of connector end faces. Three AAA batteries provide more than 40 hours of use before battery replacement is required. Provided with a universal 1.25mm and a 2.5mm adapter, with other connector styles available. Dimensions: 8.76”L x 2.16”H

Adapters are for use with the FIS Video Microscope VM Series only.
