FIS Test Equipment

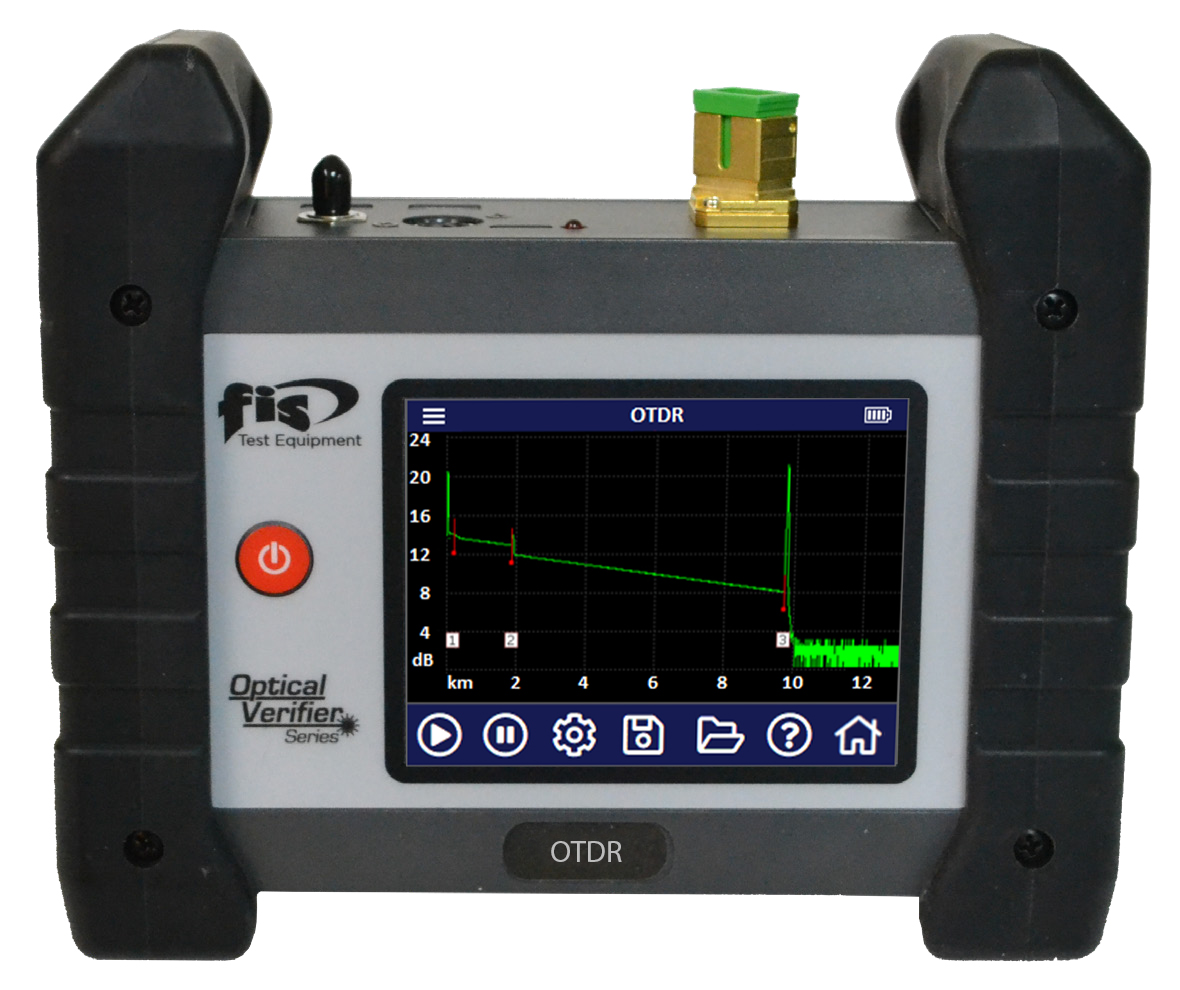

The OV-350 OTDR delivers advanced test and measurement capabilities. As one of the most compact and full-featured OTDRs available. Designed for field technicians and network engineers, it combines a bright, high-resolution display with intuitive touchscreen operation for project management, file storage, Fib-R-Map™ schematic event analysis, configurable pass/fail thresholds, and an onboard Express Help system for faster setup and reduced training time.

Built for ease of use, the OV-350 OTDR offers a simple fault-finder mode, construction mode (for large projects), or expert mode to accommodate every skill level and application. Each unit comes with standard pass/fail software to certify connector end-faces using IEC 61300-3-35 criteria by adding the VIS300 inspection probe.

The OV-350 OTDR is available in dual single-mode or multimode, quad (SM/MM), and PON/LIVE wavelength configurations. The extended range models allow for longer range testing with a 37dB dynamic range. This OTDR is a flexible and powerful solution for installation, certification, and troubleshooting across today’s fiber optic networks.

Product Features

• Standard: 32dB Dynamic Range

• Extended: 37dB Dynamic Range

• 4in Touch Screen

• VIS-300 Scope with Auto Pass/Fail (Optional)

• On Board VFL & Power Meter

• Fib-R- Map Event Analyzer for Entry Level

• Macro Bend Analysis

• Full Auto, Construction and Expert Modes

• SM, MM, Quad & PON Units Available

• Instant On, Immediate Scan

• Live Fiber Detection

• Onboard Memory of ~40,000 traces

• CW/Fiber Identifier Light Source

• FIS Connect Report Software

• Dimensions 6"(w) x 5.25"(h) x 2"(d)

The ATLAS OTDR by FIS is the perfect handheld testing device for a range of fiber optic applications. With a dynamic range of 26dB it can test through a 1x8 splitter for FTTH applictions. It has an on-board Visual Fault Locator, Power Meter, Light Source; having the capability of an all-in one optical loss test set (OLTS). The ATLAS OTDR stores files in the commonly used .SOR format and comes with reporting software that will print large batches of OTDR scans into professional, easy to read PDF reports. What’s also included is our user friendly graphical mapping software or called “gMAP”. This alternative OTDR scan allows even the most inexperienced user to easily interpret the information needed to identify, troubleshoot and verify the important characteristics of a fiber optic cable installation.

Product Features

• Copper Continuity Tester Module
• Onboard Features: Power Meter, Light Source, VFL, OTDR, Graphical Event Map Display, Fiber Inspection (Optional)
• Filtered 1560nm LIVE/Filtered available
• 4.3-inch TFT touch screen.
• SC & FC interchangeable adapters
• Handheld ( 6.9” x 4.1” x 1.8” )

FIS Power Meter and Light Source delivers accurate dBm power and dB loss measurements across six calibrated wavelengths (850/1300/1310/1490/1550/1625). Automatic wavelength switching streamlines testing while user-defined pass/fail thresholds provide easy verification. A 3.2-inch color touchscreen presents large, easy-to-read results, and the integrated visual fault locator simplifies fiber identification. With dynamic ranges from –70 dBm to +5 dBm and CATV support from +23 dBm to -45 dBm, the rugged unit and 40+ hour battery life (full charge) are ideal for extended field use.

• Measure dBm Power & dB loss for 6  Calibrated Wavelengths (SM/MM)

• Set Pass/Fail Thresholds

• Large, easy-to-read results

• 3.2” Color Display w/ Touchscreen

• Built-in VFL

• Auto-Wave Switching with Light Source

• Dynamic Range: -70dBm to + 5dBm

• Dynamic Range - CATV: -45dBm to +23dBm

• 40+ Hour Battery Life

• Rugged Design

• Dimensions 6"(w) x 5.25"(h) x 2"(d)

Enhance fiber testing with the FIS Video Inspection/Test Set, featuring a +5 to -70 dBm range power meter, and 650nm VFL for precise fault detection. When light source is added this set has auto wavelength switching and modulated tone for fiber identification. Built for reliability, its rugged case with impact-resistant bumpers offer protection. Also included is the auto center/pass/fail video scope (VIS-300) to simplify and certify connector inspections—perfect for professionals demanding accuracy and speed. Dimensions 6"(w) x 5.25"(h) x 2"(d).

• Optical Loss/ORL Tester

• ORL Measurement Range to -60 dB

• +5 to -70 dBm PM Dynamic Range

• Auto Center/Pass/Fail Video Scope (probe sold separately)

• Auto Wavelength Switching

• 650nm VFL

• Stores up to 5,000 tests

• 3.5” Touch Color Display

• Rugged Case w/ Impact Resistant Bumpers

• Fiber Identification Feature

The FIS Bi-Directional loss test set is a great low-cost test set for when bi-directional testing and averaging is needed.  The Gemini Test Set, which is used as a pair of units (main & remote) is made to measure the cable length, the dB link loss and the ORL (Optical Return Loss) in both directions and then has the ability to automatically average the test data of both directions. This allows for the most complete fiber optic characterization one can achieve in Tier I testing.

By having the main and remote units connected onto the same fiber on each end, the user only needs to push one button to initiate the 10 second test. This test set can also be used as a traditional power meter and light source kit, has an on-board VFL and memory to store up to 1,000 files. With a measurement range of up to 40km, this value oriented test set is ideal for port-installation verification & troubleshooting, as well as full Tier I certification.

• Measures cable length, db loss and ORL bi-directionally within ten seconds

• 4” Color Touch Screen Display

• Used on cable lengths up to 40 kilometers

• Stores up to 1,000 files

• Power Meter and Light Source can function independently

• LTS is used as a pair of units each having a Power

   Meter and Light Source

• No loopback needed

• Save data as PDF report directly form unit

The FIS OV350 Downstream PON Power Meter Deluxe Kit is expertly designed with the FTTx technician in mind, offering the precision and reliability needed for seamless network testing. This advanced tool accurately reads GPON, and XGS PON downstream traffic simultaneously, including 1490nm, 1550nm, and 1577nm allowing for testing at the OLT or ONT. Also included is our VIS-300 microscope which allows for thorough connector endface inspection with the on-board pass/fail software. This all-in-one kit is the ultimate solution for efficient and accurate fiber optic diagnostics within the FTTx industry.

• Pass/Fail Video Scope System - VIS 300 included
• +5 to -70 dBm PM Dynamic Range (CATTV version available)
• 650nm VFL
• Stores and Exports Scope Images and Power Measurements
• Rugged Case w/ Impact Resistant Bumpers
• Fiber Identification Feature
• Dimensions 6"(w) x 5.25"(h) x 2"(d)

The FIS EZ-Tester Power Meter for Downstream PON measurements provides fast, accurate verification of GPON (1490 nm) and XGS-PON (1577 nm) downstream OLT signals simultaneously. It also can support RF video configurations for expanded network coverage. A bright color touchscreen displays large, easy-to-read results with configurable pass/fail thresholds. The built-in visual fault locator simplifies fiber identification, while the rugged design and 40+ hour battery life ensures reliable field operation in demanding installation and maintenance environments.

• Measure downstream GPON (1490nm) and XGS-PON

(1577nm) simultaneously

• Also Available RF Video Configurations.

• Set Pass/Fail results for downstream traffic

• Large, easy-to-read results

• Color Display w/ Touchscreen

• Built-in VFL

• 40+ Hour Battery Life

• Rugged Design

• Dimensions 6"(w) x 5.25"(h) x 2"(d)

The FIS XG-PON power Meter is used to measure G-PON and next generation high speed 10G PON such as XG-PON and 10G-EPON networks. With the ability to measure up to five wavelengths including upstream and downstream measurements with its throughput and burst mode capabilities.

• Supports tests in G-PON and XG-PON/10G-EPON networks

• Through-mode capability for simultaneous measurement and display of voice, data and RF video signals on fiber at 1490/1550/1577nm downstream and 1270nm/1310nm upstream

• Convenience for threshold setting, which can set the threshold on the tester

• USB communication port enables data transfer to a PC

• Offers up to 10 pass/fail threshold sets in total

• 10 minutes Auto-off function can be activated or deactivated with keypad operation.

The FIS "xWDM" Channel Analyzers are among the most rugged, affordable, and full-featured handheld analyzers on the market, designed for superior performance in field operations. The DWDM Channel Analyzer supports up to 96 channels with 50 and 100 GHz spacing and features a 6 GHz slicing line graph mode. With a user-friendly touch screen and rapid twice-per-second scanning, it ensures precise measurements with power drift monitoring and customizable scale limits. Users can easily select channel numbers in wavelength or frequency and view data in bar graph, line graph, or table mode on a 3.5” bright auto-rotating color touchscreen. Similarly, the CWDM Channel Analyzer, available in various channel configurations with 20 nm spacing, offers an intuitive interface, durable construction, and fast scanning for efficient CWDM analysis. Both analyzers allow users to set pass/fail thresholds, store up to 1000 tests, and seamlessly download reports via USB. The included certification software streamlines documentation, while the onboard Help system simplifies setup. An optional Video Inspection Scope ensures connector cleanliness before testing, making these analyzers the ultimate choice for professionals seeking precision, durability, and efficiency in optical network testing.

• 50 or 100 GHz DWDM Spacing

• Up To 96 Channels DWDM

• Bar Graph, Data Table, & DWDM 6.25 GHz Line Graph

• 20nm CWDM Channel Spacing

• 8,10 or 18 Channels CWDM

• Fast Real Time with <1/2 second Update

• Zoom in on Active Channels

• Rugged Case w/ Impact Resistant Bumpers

• Solid State Optics - No Moving Parts

• Adjustable Pass/Fail Thresholds

• 650nm VFL included

• 4” Touch Color Display

• Stores up to 1,000 tests

• IEC61300-3-35 auto center/pass/fail video inspection feature for use with the optional video probe

• Dimensions 6"(w) x 5.25"(h) x 2"(d)

CALL FOR CUSTOM CHANNEL CONFIGURATIONS

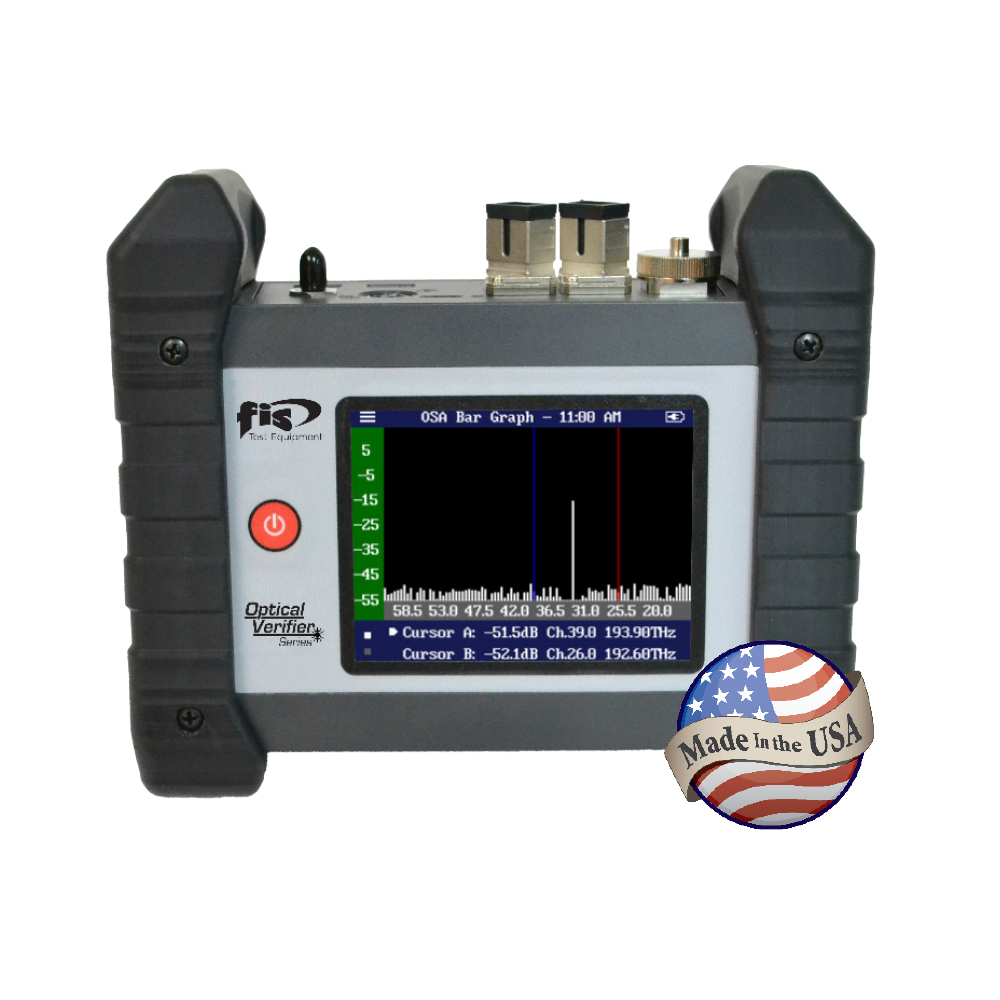

The OV-350 Hand Held Optical Spectrum Analyzer is a rugged, affordable DWDM C-band Mini OSA supporting up to 96 channels with 50/100 GHz spacing and 6 GHz resolution. Dual power inputs measure from –50 dBm to +10 dBm. A touchscreen with fast scanning enables power tilt and channel analysis in bar, line, or table views. User-defined pass/fail limits store up to 1,000 tests, exportable via USB, with optional video inspection probe. Dimensions 6"(w) x 5.25"(h) x 2"(d).

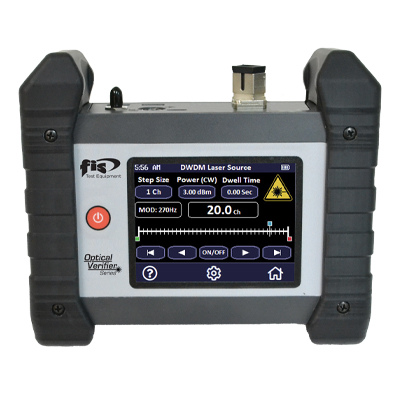

The FIS OV350-DWDM Handheld Tunable Laser Source provides up to 96 C-band channels with wavelength, frequency, or ITU channel display. Built in a rugged, boot-protected housing, it delivers fast startup and stable wavelength and power output for DWDM installation, commissioning, and troubleshooting. The unit integrates an IEC61300 fiber inspection scope (VIS-300 probe sold separately) and a visual fault locator, making it a compact, cost-effective all-in-one DWDM test solution.

• Selectable Step Size Down to 50 GHz

• Selectable Start & Stop Channels

• Settable in Wavelength, Frequency or ITU Channel

• Settable Dwell Time

•  Rugged Case with Impact Resistant Boot

• Simple Operation with On-Board Help Mode

• IEC61300 Auto Pass/Fail/Centering Fiber Inspection Software

• Visual Fault Locator (650nm)

• Interchangeable Fiber Optic Connectors

• Up to 98 Channels on the ITU Grid (ch.14 - 62.5)

• 4” Color Touch Display

• 10 hr Battery Life

• 270/1000/2000Hz Modulation

• Dimensions 6"(w) x 5.25"(h) x 2"(d)

The CWDM Channel Analyzer from Fiber Instrument Sales, proudly made in the USA, is a powerful, all-in-one solution for fast and accurate CWDM fiber testing. Its bright 4” color touchscreen, solid-state optics, and lightning-fast sub-0.5-second updates deliver reliable results with no moving parts. Wide wavelength coverage, precise power measurement, and user-defined pass/fail thresholds simplify validation. Onboard storage for up to 1,000 results and PC reporting software included. When used with the optional VIS300 probe this the user has ability to pass/fail connector endfaces. Dimensions 6"(w) x 5.25"(h) x 2"(d).

The OV-DWDM OTDR is a handheld tunable DWDM OTDR supporting 96 C-Band wavelengths in a single compact instrument. It also operates as a tunable laser source with a 3 dB output range, making it ideal for certifying and troubleshooting DWDM Metro networks.

One-Touch Auto Test enables automated multi-wavelength testing with pass/fail results using Fib-R-Map trace analysis. The OV-DWDM OTDR can test through MUX/DEMUX units or be used as a DWDM tunable laser source. Professional network documentation is generated with the included FIS Connect certification software. The unit also supports an auto-center, pass/fail video inspection scope (VIS300 probe sold separately).

• Tunable OTDR with 96 C Band Wavelengths

• Tunable CW/Pulsed Laser Source with 50/100GHz Spacing

• Touch Screen Operation

• Fib-R-Map Comprehensive Event Analysis

• 35 dB OTDR Dynamic Range

• 10 Hour Li-ion Battery Pack

• Report Generating Software Included

• 4” Touch Color Display

• 650nm VFL included

• Rugged Case w/ Impact Resistant Bumpers

• Auto Center/Pass/Fail Fiber Inspector

• VIS300 Optional

• Dimensions 6"(w) x 5.25"(h) x 2"(d)

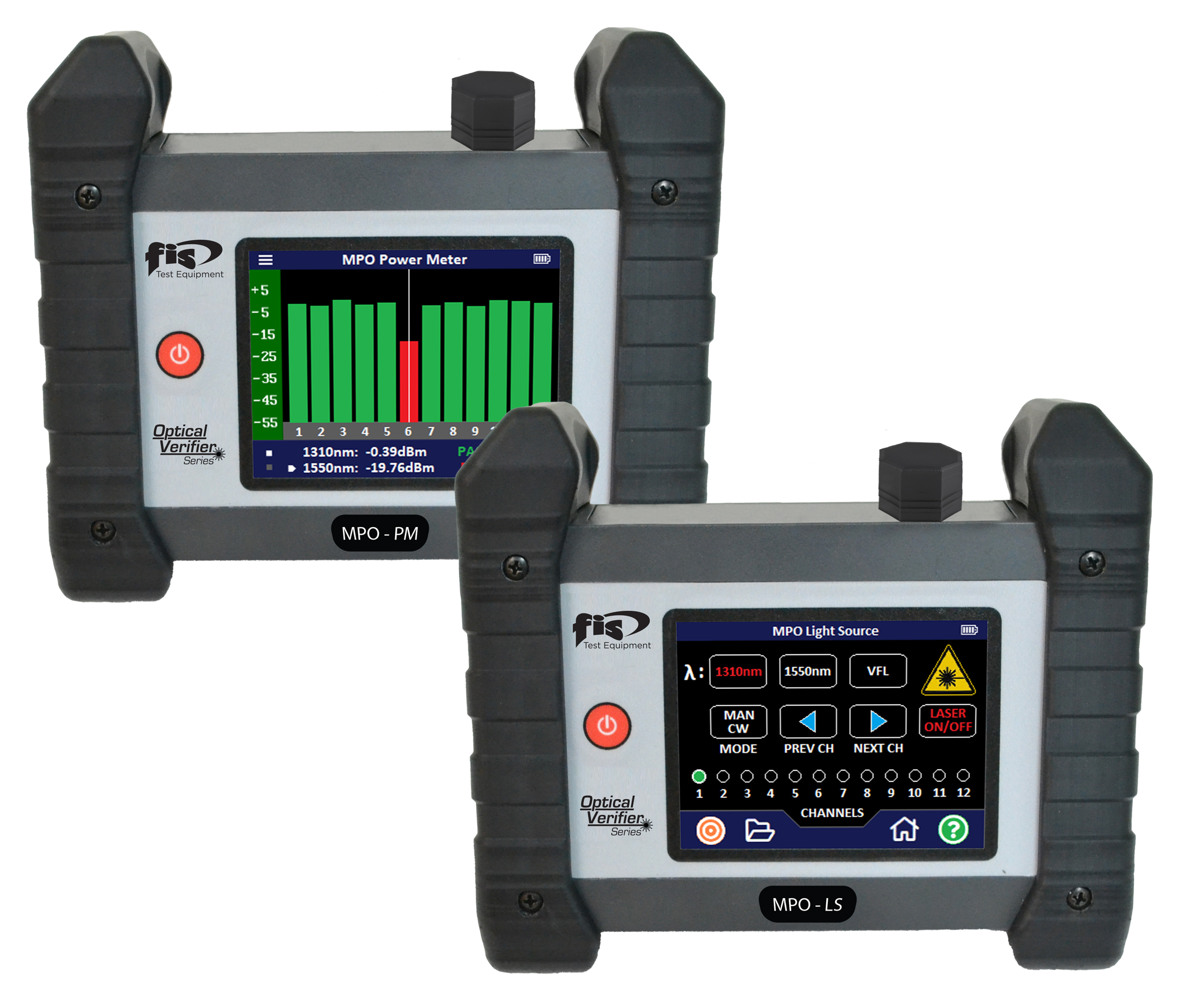

The FIS Multi-Fiber Test Set is a two-piece kit that contains a power meter and light source designed to test up to 12 fibers quickly and easily. This set will provide the user with link attenuation (dB loss) and ORL readings in less than 15 seconds! By using the included MPO reference cords, the units operate like a traditional power meter & light source.

A new ORL Optical Return Loss feature provides both 1310nm and 1550nm measurements automatically on Singlemode networks. Also included is the multi-fiber VFL Visual Fault Locator feature for automatic 12 fiber visual analysis. Both the Light Source and Power Meter can be configured with the optional VIS300 Video Inspection probe and MPO adaptors to scan connector images, mark defective connections, and save image files for display on your PC with the included FIS Connect software application. Dimensions 6"(w) x 5.25"(h) x 2"(d).

• Measure Optical Loss on all 12 MPO Channels

• Pass/Fail Reporting with Customizable Thresholds

• Dual Wavelength Auto-Test Feature

• ORL Measurement Range to -60 dB (SM only)

• Verify A, B, C and 40G Polarities

• 650nm VFL (For Single Fiber and MPO)

• Auto Center/Pass/Fail Video Scope (probe sold separately)

• Rugged Case w/ Impact Resistant Bumpers

• Fiber Identification Feature

Call and speak with a FIS Representative to inquire about 16 or 24 fiber options.

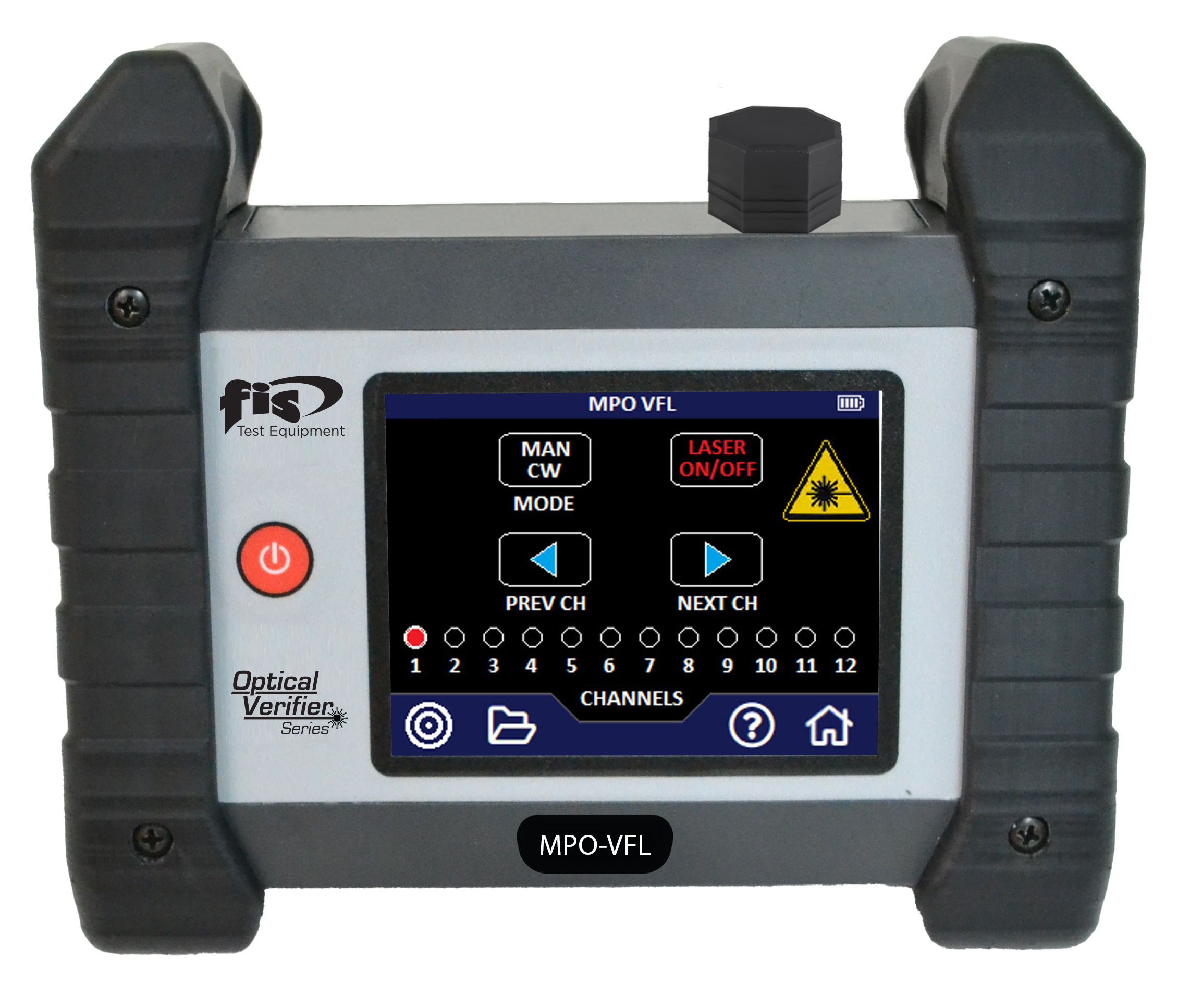

The new FIS MPO VFL with 12 or 16-channel configurations, is a great troubleshooting tool that is needed to establish or confirm polarity, continuity, and macrobends within an MPO optical system. If no breakout cassette is present, the included polarity verifier unit (F1-OPV) when used on the far end of a MPO/MTP cable can provide the user a quick, safe and easy determination of continuity and polarity of the fibers within the MPO cable assembly. Also, included with this unit is the FIS VIS-300 Inspection Scope Probe which will confirm the cleanliness of the MPO connectors. The scope comes with MPO APC and UPC tips. This unique product is a must for any pre and post-installation technician! Dimensions 6"(w) x 5.25"(h) x 2"(d).

• Multiple Laser output sequences: Auto Scan & Manual Scan

• Rugged, lightweight design

• Self-closing shutter on MPO adapter port

• Long battery life, up to 10 hours on full charge

• 4” Outdoor Enhanced Touch Screen

• Great for dim lighted areas

• 650nm visible light source

• Includes Optical Polarity Verifier For Easily & Safely Confirming MPO System Polarities

• VIS-300 Inspection Scope Probe Included with MPO/APC & MPO/UPC tips)

• Available In 12 or 16 - Channel Configurations

• Works For Both Singlemode and Multimode with Hybrid Jumper Included

This rugged, weather and shock resistant MPO VFL for Multimode or Singlemode cable assemblies is a great troubleshooting tool that is needed to establish or confirm polarity, continuity, and macrobends within an MPO optical system. If no breakout cassette is present, the polarity verifier unit (F1-OPV), when used on the far end of a MPO/MTP cable can provide the user a quick, safe and easy determination of continuity and polarity of the fibers within the MPO cable assembly. This new one of a kind product is a must for any pre- and post-installation technician!

The new FIS Mini MPO Visual Fault Locator is able to test all channels utilizing two sources with source "A" lighting up channels 1 thru 6 and source "B" lighting up channels 7 thru 12. As with most MPO networks, continuity and polarity verification can prove challenging and time consuming. Traditional methods involve expensive breakout cables and single fiber visual fault locators, checking only one channel at a time. The new Mini MPO Visual Fault Locator made by FIS, allows the user to quickly ensure the proper continuity of all channels of the MPO cable with visible light. Its handheld design, coupled with its straight forward easy to use keypad interface will determine if all channels are properly installed.

The FIS Fiber Optic Pocket Fault Locators are designed to be rugged, compact, and lightweight. These units are 7.1" in length and weigh approximately 4.5oz. With a 30-hour battery life in continuous mode and 40 hours in modulated mode, the bright 650nm (red) laser which has a range of up to 5Km ensures the fast and easy location of fault points within fiber optic patchcords, patch panels, and enclosures. They can also be used to identify fibers in multi-fiber cables, and it is designed for both singlemode and multimode fiber optic applications. These units are shipped with two "AA" batteries and a belt holster.

This adapter allows you to convert the 2.5mm adapter on your VFL into a 1.25mm ferrule typically for LC style connectors.

Fiber Instrument Sales introduces its Dual Source Visual Fault Locator specially made for duplex LC connectors. Because LC connectors are commonly clipped together this product eliminates the common mistake that is made of crossing Tx and Rx patch cords to active equipment. This unit allows the user to toggle between the “A” and “B” sources to ensure that everything is properly connected.

Each Unit Includes: Carrying pouch, 9V Battery, User Manual, One Year Warranty

The FIS Visual Fault Locator is an essential tool for troubleshooting a fiber optic system. A 1mW packaged laser sends a 650nm visible red light down the length of the fiber. The escaping light allows easy identification of breaks or severe macro bends. Internal optics are used to optimize the unit’s performance for either singlemode or multimode applications. Fiber end identification and continuity testing for long distances are also natural applications.

Each Unit Includes: Manual, (1) 9v Batteries, and Carry Case.

A Continuity Tester enables you to easily verify light throughput as the LED transmits red light down the fiber, providing visual identification at the fiber’s far end. Operates with two “AA” size batteries (provided).
Recommended for Multimode Use Only. Each Unit Includes: Tester and (2) AA Batteries.

This 12 Fiber MPO/MTP Test Set will provide the technician with link attenuation readings over all 12 fibers of the MPO/MTP ferrule in 10 seconds. MPO/MTP connectors are growing in popularity so the ability to measure efficiently, quickly and accurately the correct location of each fiber and its attenuation can assist technicians with certification. The test set will recognize A, B or C polarity wiring configurations used in the industry. Includes (2) MPO to MTP® PRO reference cables, and reporting software. *MPO/MTP to LC Breakout cable available upon request

FIS MPO Test Set is offered in a ruggedized version.

Ever increasing network speeds and tighter loss budgets make qualifying multimode fiber links a formidable challenge. Part of the challenge can stem from test instruments. In some scenarios different test instruments can produce different measurement results on the same network due to variations in launch conditions between test sources. Encircled Flux (EF) standards, TIA-526-14-B and IEC 61280-4-1 Ed. 2.0, define a method of controlling multimode launch conditions for optical test sources. More consistent test source launch conditions equate to more accurate and repeatable measurements. This is the goal driving the migration to encircled flux standards.

FIS Ruggedized Loss Test sets are designed to withstand outdoor field environments where traditional handheld units are not appropriate. Units are available for both multimode and singlemode applications and run on re-chargeable NiCd batteries. Please specify ST or FC adapter style when ordering any FIS Ruggedized Test Equipment. The Power Meter has an easy to read LCD display and germanium detector incorporating three wavelength (850nm, 1300nm, 1550nm) measurement capability. The Light Source is a dual wavelength source with a continuous wave or 2KHz modulation. The 850nm and 1300nm light source is for multimode applications. The 1310nm and 1550nm Light Source is for singlemode applications.

Purchase our handheld series power meter and light source kit. They come in either Singlemode, Multimode, or Quad versions. Included are a carrying case, reference cords, mating sleeves needed for testing SC, ST, and LC terminated cables, operating manuals, and batteries. The Power Meters are supplied with universal 2.5mm and 1.25mm adapter caps. Other interchangeable adapters are available for purchase separately.

A power meter is the essential tool for measuring optical power within a fiber optic link. The FIS
Power Meter is a solid performer, with 0.01dB resolution. Standard FIS units test from +5dBm to
-65dBm, and FIS CATV units test from +23dBm to -45dBm.
Each Unit Includes: Operating Manual, 9V Battery, 2.5mm and 1.25mm Adapters, and Carry Case.

The FIS Light Source is the perfect match for the FIS Power Meter. Singlemode units are equipped with lasers having a typical output power of -1.0dBm. Multimode units have LED’s with a minimum output of -17dBm.
Each Unit Includes: Operating Manual, 9V Battery and Carry Case.

The new FIS E-Series Power Meter and Light Sources are also available in kits. These kits come in either Singlemode, Multimode or Quad versions with carrying case and mating sleeves needed for testing SC, ST and LC terminated cables. Reference cords include (2) of each: SC/SC, SC/LC and SC/ST. Multimode and Quad Kits include OM1 and OM3 reference cords with 62.5µm and 50µm mandrels.

The FIS E-Series Power Meter and Light Source provide an industry leading value for handheld test gear. With a new design for ease of use, LED backlight and referencing, technicians will have no problem testing and trouble shooting fiber optic links. Data Save version includes PC reporting software.

Each Unit Includes: Operating Manual, (3) AA Batteries, interchangeable SC, FC, ST adapters; LC adapter for PM only and Carry Case.

The FIS Fiber Ranger is portable, rugged, lightweight, and easy to use. Up to 8 fiber faults can be detected in each measurement. It comes with an automatic pulse width control design to ensure a convenient operation. It is easy to identify the fault's location. It offers live fiber detection and comes with a built-in visual fault locator (VFL), to conveniently find the faults in a dead zone.

The FIS Fiber Optic Talk Set units are designed for transmitting voice in both directions on a single fiber using two different wavelengths. Works with SM or MM fiber. Units include adjustments for power and sensitivity. The Talk Set comes standard with SC and FC interchangable adapter ports. These sets have a dynamic range up to 45dB. Finally, each Talk Set comes equipped with a stereo headset with boom microphone, providing comfort for long-term use and high performance.
Talk Set includes: (2) Units, (2) Headphones with Microphone, (6) AA Batteries

The use of mandrels in multimode insertion loss testing helps to ensure the proper launch condition into the fiber under test. By wrapping the fiber around the correct size mandrel, high order modes are stripped out and low order modes are spread out to achieve the desired launch conditions for testing. Each includes the mandrel and clip for holding the cable firmly in place during testing. Accepts jacket diameters from 1.6mm to 3.0mm and for use with both OM1, OM2 cable. When testing Corning CleareCurve fiber it requires a smaller 4mm radius mandrel which is available.

This Fiber Inspection Probe, our newest offering at FIS, is loaded with features at a comparably low cost. The ergonomic hand held design can be used in a completely vertical/horizontal fashion or it can fold inward to about a 45 degree angle allowing it to be used in a number of positions within anenclosure or patch panel.

With the push of one button the probe will lock onto the connector end faceimage, automatically center and focus it and then analyze it against theindustry I.E.C. end face inspection criteria to display a PASS or FAIL. The probehas a WiFi USB adapter that can be used to transfer saved data wirelessly to a laptop or computer. USB hardwire connection also is available.

FEATURES

• Auto-Focus, Auto-Centering, with Pass/Fail Analysis
• Unit comes included with 2.5mm & 1.25mm UPC patch cord tips and UPC SC & LC bulkhead tips
• APC and MPO tips available upon request
• Convenient LED flashlight on-board

This American made high resolution benchtop microscope for inspecting connector end faces works great with large core fiber or standard optical fiber. It is made with a powder coated aluminum housing that will sit firmly on any surface for your benchtop/laboratory set up. This microscope is available in 200x or 400x magnification power and includes an interchangeable 2.5mm universal adapter which allows for the inspection of SC, ST, and FC connectors. This microscope allows the user to manually center the image by turning the easily accessible centering adjustment knobs, so you’ll never have to tolerate an off-centered image. Simply plug the microscope into a laptop or PC's USB port, the microscope can use the computer's built in camera app (Win10 & Win11) to display the magnified image of the ferrule endface. The FIS Video Microscope can also be viewed on most USB enabled tablets and cell phones using free viewing apps (call for details). Note: the tablet battery life between charges will be reduced when attached to microscope. Each Unit comes with: (1) Video Microscope, (1) 2.5mm universal adapter

• Coaxial LED Lighting
• 200X and 400X versions available.
• 2.5mm Universal Adapter (Included)
• Other Additional Adapters Available (See Below)
• User Adjustable Image Centering
• Optional Andriod Tablet Available (Call your FIS Representative for Information)

FIS PROBE ADAPTER TIPS FOR FIS INSPECTION PROBE *Call For More Tip Options

MONITOR MODULE
• 3.5” TFT-LCD Screen with adjustable brightness and contrast
• 9.6V battery pack and AC power supply (4hr Life)
• Includes charger adapters for US, EU, UK
and Australian standard

HANDHELD VIDEO INSPECTION PROBE
• 400x Magnification
• Resolution – 0.5µm detectable
• Manual focus adjustment
• Kits come with SC and LC male and female (bulkhead) probe tips

FEATURES
• Fast, easy focus with one hand operation
• USB version for use in laptop or PC
• Comprehensive line of tips for both
PC and APC type connectors

FIS PROBE ADAPTER TIPS FOR FIS INSPECTION PROBE *Call For More Tip Options

The FIS Video Microscope is a natural choice for fast-paced production environments, where ease of use and fast, accurate inspections are a necessity. The microscope offers a high-resolution look at the end face of most standard connectors, with a choice of either 200x or 400x magnifications. The optics and internal components are designed to be rugged and reliable, with no user-serviceable parts.
Each Package comes with: (1) Video Microscope, (1) 10” LCD monitor (monitor sizes may vary), (1) 6’ Video Cable, (1) 2.5mm Universal Adapter only

The FIS Universal Microscope is provided with a 2.5mm universal faceplate. Insert the ferrule into the microscope and inspect the end face with ease. This complete 100x microscope is perfect for multimode connectors and is easy to use.

Utilize this compact scope to inspect connector ferrule end faces for dirt, debris or oils that may interfere with signal transmission. Scope has both Oblique and Coaxial white LED lighting.
Includes: Microscope,(3) 1.5v LR44 Button Batteries, 2.5mm adapter, 1.25mm adapter

These low cost, high quality microscopes are available in 200x or 400x magnification, and utilize white LED light to provide coaxial illumination of connector end faces. Three AAA batteries provide more than 40 hours of use before battery replacement is required. Provided with a universal 1.25mm and a 2.5mm adapter, with other connector styles available. Dimensions: 8.76”L x 2.16”H
