MPO/MTP PRE-TERMINATED SYSTEMS

The FIS MPO/MTP Module is a pre-terminated, pre-tested, rack mount module system allowing for a simple installation of MPO/MTP backbone cables with a transition to standard LC or SC connections. The FIS modules are designed to fit into enclosures with LGX slot configurations. Using a pre-terminated cable assembly in conjunction with modules within a rack allows for easier installation and simpler cable management. Contact your FIS sales representative today for further details or use the configurators below to construct the proper combination to meet any requirement. All stock cassettes are built using elite ferrules.

Call a FIS Sales Representative To Get Pricing for MPO Patch Cords

1-800-5000-FIS(347)

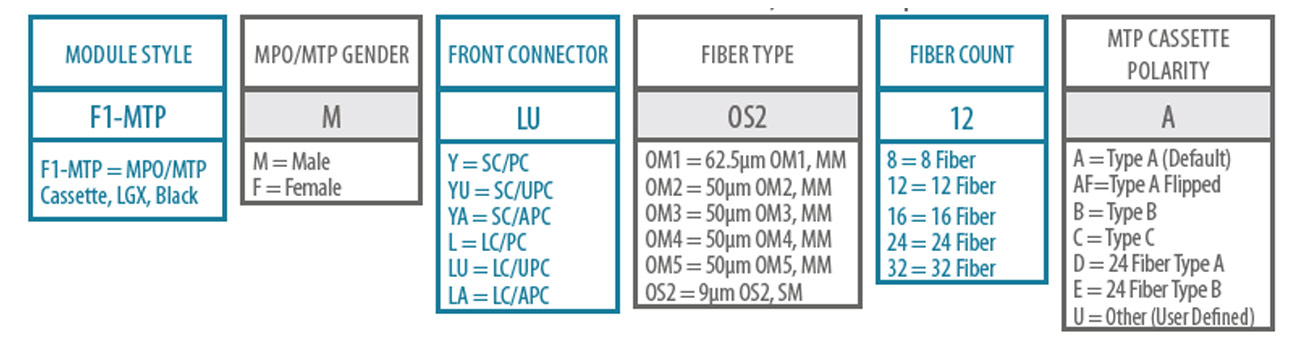

BUILD YOUR OWN CUSTOM MPO/MTP MODULE / CASSETTE
Use this chart to build a MPO/MTP module to your exact specifications.

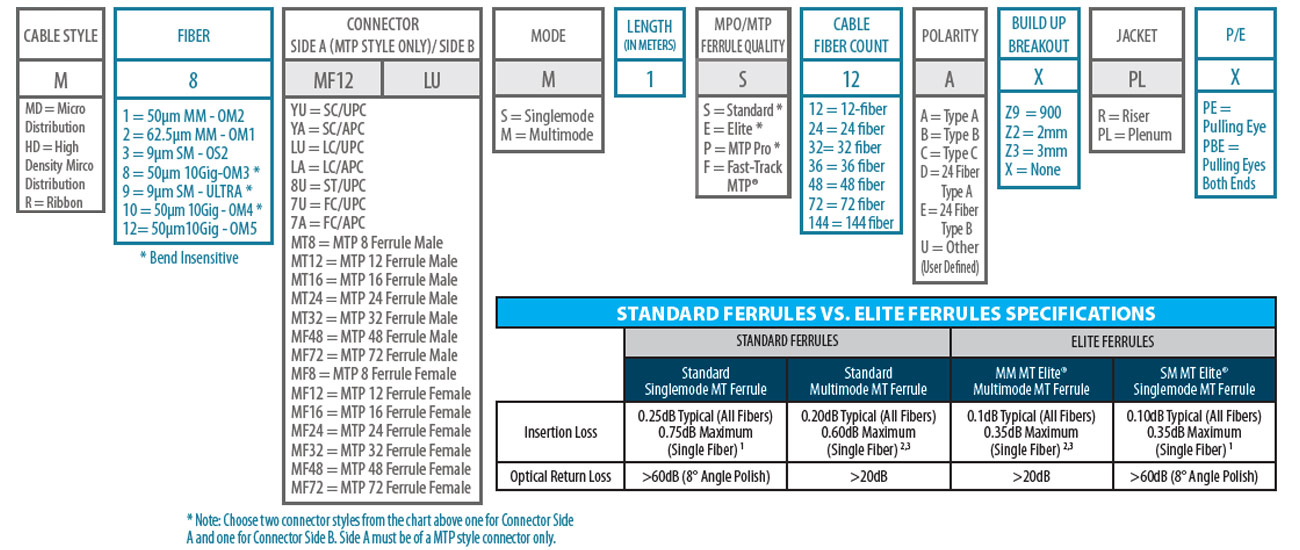

CUSTOM MPO/MTP TRUNK CABLE ASSEMBLY CONFIGURATOR:
Use this chart to build your MPO/MTP custom cable assembly

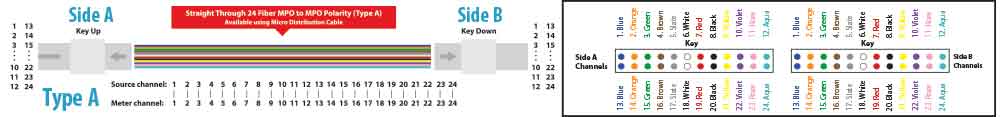

24 Fiber MPO/MTP Straight Polarity

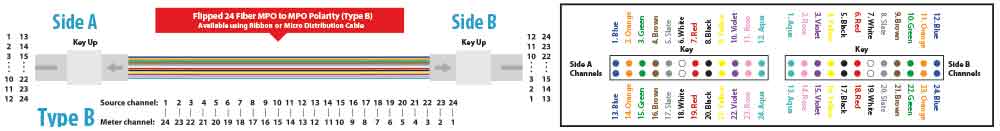

24 Fiber MPO/MTP Type-B Reversed Polarity

CUSTOM 12 FIBER MPO/MTP TO MPO/MTP TRUNK CABLE DIAGRAMS
Use these diagrams to help build the cables you need to your exact specifications.

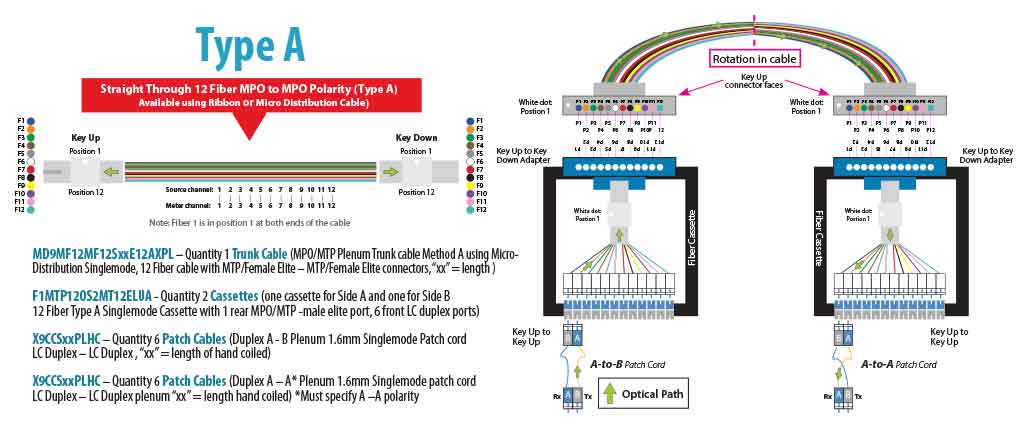

12 Fiber Type-A MPO/MTP Polarity

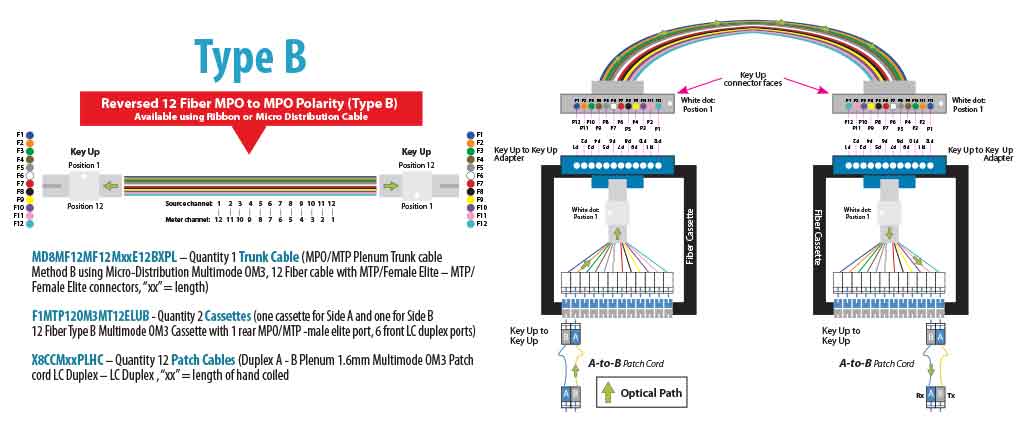

12 Fiber Type-B MPO/MTP Polarity

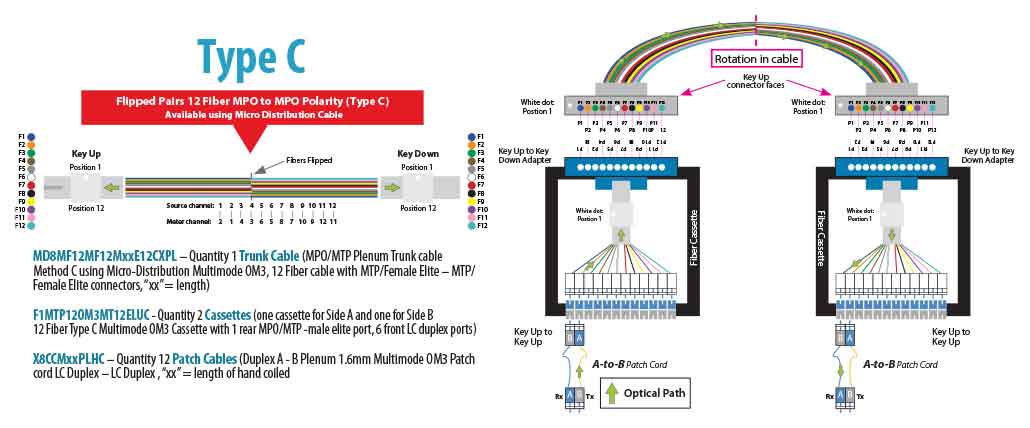

12 Fiber Type-C MPO/MTP Polarity
