Polishing Disks and Accessories

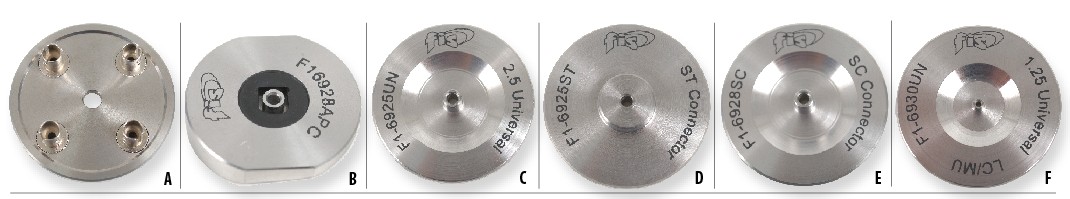

HAND POLISHING DISCS
The metal fiber optic polishing discs are especially durable and are machined to close tolerances. They are designed to hold your fiber optic endface at exactly the correct angle to the polishing film during the polishing process.
Description |
Part # |
| ST/SC/FC Universal 2.5mm Polish Disc (C) | F1-6925UN |
| ST Polish Disc (D) | F1-6925ST |
| ST 4 Position Polish Disc (A) | F1-6977ST |
| SC Polish Disc (E) | F1-6928SC |
| SC/APC Polish Disc (B) | F1-6928APC |
| FC/PC Polish Disc | F1-6925FC |
| FC/APC Polish Disc | F1-6925FCAPC |
| MU/LC Polish Disc (F) | F1-6930UN |
| LC/APC Polish Disc | F1-6900APC |
| SMA Polish Disc | F1-6925SMA |
| D4 Polish Disc | F1-6926 |

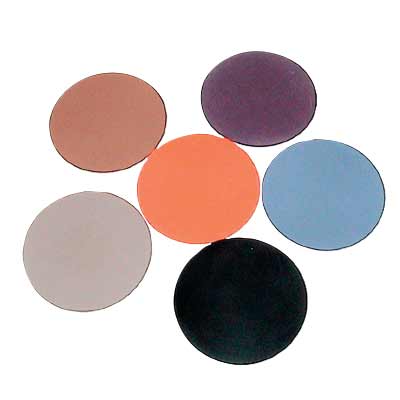

ULTRA PRECISION POLISHING PADS
Ultra Pads are color coded for easy recognition by the machine operators. 4” and 5” discs are .079” thick and 6”x 6” squares are 0.250” thick.
Description |
Part # |
| 4” Circular Rubber Pad 70 Durometer (purple) | F1-70D4 |
| 4” Circular Rubber Pad 90 Durometer (black) | F1-90D4 |
| 5” Circular Rubber Pad 70 Durometer (purple) | F1-70D5 |
| 5” Circular Rubber Pad 90 Durometer (black) | F1-90D5 |
| 6” x 6” Square Rubber Pad 70 Durometer (purple) | F1-70DX6 |
| 6” x 6” Square Rubber Pad 90 Durometer (black) | F1-90DX6 |

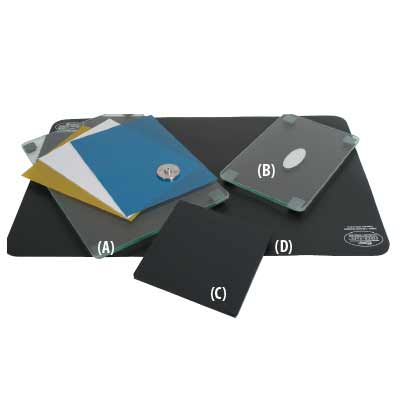

POLISH PLATES, PADS AND MATS
The polishing of fiber optic connectors calls for both a hard flat surface and a cushioned pad. The 9” x 13” or 6” x 9” polish plate is available in safety glass and mounted on four rubber feet for support. When polishing PC style pre-radius connectors, use the soft polish pad on the glass plate. Placing the lapping film over the pad assures the removal of epoxy and proper polish of fiber without destroying the pre-radius of the ferrule.
