Polishing Equipment

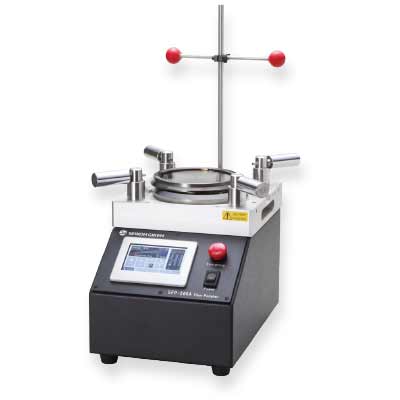

SFP-560A Ruggedized Polish Machine
Seikoh Giken’s SFP-560A provides high volume assemblers with an ultra ruggedized polisher for long hours and everyday operation. Mechanical durability, low operational costs and reduced maintenance requirements offer near zero downtime for maximum return on investment.
Description |
Part # |
| SFP-560A Ruggedized Polish Machine | SFP-560A2 |
SFP-550C MASS PRODUCTION POLISHING MACHINE
This high-performance polish machine offers superior quality and maximum throughput at a very affordable price. Utilizing a patented, high speed rotation and revolution method, this polisher prepares connectors which exceed Telcordia GR-326 requirements for end face geometry. Standard capacity 18 connectors, up to 48 LC/MU.
FEATURES
• Compatible with all existing
SFP series I.P.C. Holders
• Increased turntable speed
• Exceeds all requirements for
GR-326 End-Face Geometry
requirement
Description |
Part # |
| SFP-550C Polisher with standard package | SFP-550C |
| SFP-550E3 High Capacity Programable Polisher with standard package | SFP-550E3 |
| FC/PC Polish Fixture (20 position) | PH55-FP-20 |
| FC/APC Polish Fixture (18 position) | PH55-FP8RC-18-1 |
| SC/PC Polish Fixture (20 position) | PH55-CP-20 |
| SC/APC Polish Fixture (18 position) | PH55-CP8C-18 |
| ST/PC Polish Fixture (20 position) | PH55-SP-20 |
| LC Polish Fixture (24 position) | PH55-PL-24 |
| MT/PC Fixture, 24 Position (1mm Protrusion Type) | PH55-MT-24S1 |
ACCESSORIES FOR SFP-550C
Description |
Part # |
| 30µm Silicon Carbide Adhesive Removal Film | GA5D |
| 9µm Diamond Rough Polish Film | DR5D-9U |
| 5µm Diamond Rough Polish Film | DG5D-5U |
| 3µm Diamond Middle Polish Film | DH5D-3U |
| 1.5µm Diamond Middle Polish Film | DI5D-1.5U |
| 1µm Aluminum Oxide Final Polish Film | SF5D |
| 0.5µm Silica Final Polish Film | XF5D |

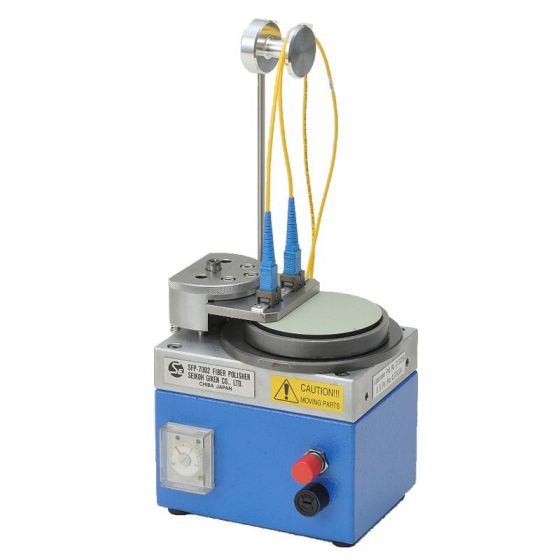

SFP-70D2 POLISHING MACHINE
The Seikoh Giken SFP-70D2 polishing machine polishes 2 ferrules at a time. It is best suited for lab use and as a re-polishing solution at mass production line. Its portability and light weight make this machine great for field polishing and re-polishing.
FEATURES
• High performance polishing for a variety of applications
• Ergonomic, simple design for ease of use
• Uses SG patented Independent Pressure Control
• Short cycle times (2 min. typical for reworks)
Description |
Part # |
| Programmable Polisher with standard accessories | SFP-70D2 |
| FC/PC Polish Fixture (2 position) | PH072-FP-2 |
| FC/APC Polish Fixture (Conical Narrow Key) | PH072-FP8RC-2 |
| SC/PC Polish Fixture (2 position) | PH072-CP-2 |
| SC/APC Polish Fixture (Conical 2 position) | PH072-CP8C-2 |
| ST/PC Polish Fixture | PH072-SP-2 |
| LC/PC Polish Fixture | PH072-PL-2 |
