Simplex Cable
Corning’s new SMF-28® Ultra optical fiber is the first in the market to combine the benefit of industry-leading attenuation and improved macrobend performance in one fiber. This premium single-mode fiber is designed for long-haul, metro, access, and fiber-to-the-home (FTTH) applications, and is fully backward compatible with the installed base of legacy single-mode fibers.
9/125um - OS2 SINGLEMODE
Corning® SMF-28® Ultra fiber
3.0mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Yellow | 900µm | TLC | S09-SX01-CZNRY |
| Riser Red | 900µm | TLC | S09-SX01-CZNRR |
| Plenum Yellow | 900µm | TLC | S09-SX01-CZNPY |
| Riser Yellow | 900µm | CCS | 1E31-311-31 |
2.0mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Yellow | 900µm | TLC | S09-SX01-CZNRY20 |
| Plenum Yellow | 900µm | TLC | S09-SX01-CZNPY20 |
| Riser Blue | 900µm | TLC | S09-SX01-CZNRB20 |
1.6mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Yellow | 650µm | TLC | S09-SX01-CZNRY16 |
| Plenum Yellow | 650µm | TLC | S09-SX01-CZNPY16 |
9/125um - SINGLEMODE ULTRA LOW BEND OPTIMIZED
Corning® ClearCurve® ZBL fiber (5mm Radius) G657.B3
3.0mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Yellow | 900µm | TLC | S09-SX01-CCNRY |
1.6mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Yellow | 650µm | TLC | S09-SX01-CCNRY16 |
62.5/125um - OM1 MULTIMODE
Corning® ClearCurve® OM1 fiber
3.0mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Orange | 900µm | TLC | M62-SX01-C3NRO |
| Plenum Orange | 900µm | TLC | M62-SX01-C3NPO |
| Riser Orange | 900µm | CCS | 1K31-311-41 |
2.0mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Orange | 900µm | TLC | M62-SX01-C3NRO20 |
| Plenum Orange | 900µm | TLC | M62-SX01-C3NPO20 |
1.6mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Orange | 650µm | TLC | M62-SX01-C3NRO16 |
| Plenum Orange | 650µm | TLC | M62-SX01-C3NPO16 |
50/125um - OM2 MULTIMODE
Corning® ClearCurve® OM2 fiber
3.0mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Orange | 900µm | TLC | M50-SX01-C2NRO |
| Plenum Orange | 900µm | TLC | M50-SX01-C2NPO |
2.0mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Orange | 900µm | TLC | M50-SX01-C2NRO20 |
| Plenum Orange | 900µm | TLC | M50-SX01-C2NPO20 |
1.6mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Orange | 650µm | TLC | M50-SX01-C2NRO16 |
| Plenum Orange | 650µm | TLC | M50-SX01-C2NPO16 |
50/125um - OM2 MULTIMODE
Corning® ClearCurve® OM2 fiber
3.0mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Aqua | 900µm | TLC | M50-SX01-CGNRA |
| Plenum Aqua | 900µm | TLC | M50-SX01-CGNPA |
2.0mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Aqua | 900µm | TLC | M50-SX01-CGNRA20 |
| Plenum Aqua | 900µm | TLC | M50-SX01-CGNPA20 |
1.6mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Aqua | 650µm | TLC | M50-SX01-CGNRA16 |
| Plenum Aqua | 650µm | TLC | M50-SX01-CGNPA16 |
50/125um - OM4 MULTIMODE-10 Gig
Corning® ClearCurve® OM4 fiber
3.0mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Aqua | 900µm | TLC | M50-SX01-C4NRA |
| Plenum Aqua | 900µm | TLC | M50-SX01-C4NPA |
| Riser Magenta | 900µm | TLC | M50-SX01-C4NRM |
| Plenum Magenta | 900µm | TLC | M50-SX01-C4NPM |
2.0mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Aqua | 900µm | TLC | M50-SX01-C4NRA20 |
| Plenum Aqua | 900µm | TLC | M50-SX01-C4NPA20 |
| Riser Magenta | 900µm | TLC | M50-SX01-C4NRM20 |
| Plenum Magenta | 900µm | TLC | M50-SX01-C4NPM20 |
1.6mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Aqua | 650µm | TLC | M50-SX01-C4NRA16 |
| Plenum Aqua | 650µm | TLC | M50-SX01-C4NPA16 |
| Riser Magenta | 650µm | TLC | M50-SX01-C4NRM16 |
| Plenum Magenta | 650µm | TLC | M50-SX01-C4NPM16 |
50/125um - OM5 MULTIMODE-40/100 Gig
Corning® ClearCurve® OM5 fiber
2.0mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Lime Green | 900µm | TLC | M50-SX01-C5NRLG20 |
| Plenum Lime Green | 900µm | TLC | M50-SX01-C5NPLG20 |
1.6mm
Description |
Buffer Size |
MFG |
Part # |
| Riser Lime Green | 900µm | TLC | M50-SX01-C5NRLG16 |
| Plenum Lime Green | 900µm | TLC | M50-SX01-C5NPLG16 |
Ribbon Cable

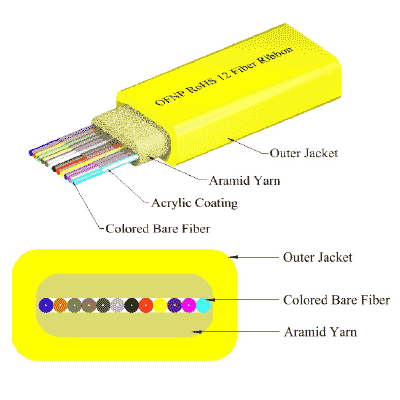

TLC FLAT RIBBON CABLE PVC JACKETED - OS2 / OM1 / OM2 / OM3 / OM4
Description |
Part # |
| 12 Fiber Singlemode 9/125µm Riser Jacket Yellow - OS2 | S09-RB12-CZNRY |
| 12 Fiber Singlemode 9/125µm Plenum Jacket Yellow - OS2 | S09-RB12-CZNPY |
| 12 Fiber Multimode 50/125µm Corning® ClearCurve® OM3 Riser Jacket Aqua | M50-RB12-CGNRA |
| 12 Fiber Multimode 50/125µm Corning® ClearCurve® OM3 Plenum Jacket Aqua | M50-RB12-CGNPA |
| 12 Fiber Multimode 50/125µm Corning® ClearCurve® OM4 Plenum Jacket Aqua | M50-RB12-C4NPA |
