Small Form-Factor Pluggable (SFP) Assemblies
SFP+ ACTIVE OPTICAL CABLE
SFP+ Active Optical Cables support data rates up to 10.3Gbps and lengths from 1m to 100m. Featuring an extended temperature range, direct attach interface, and compliance with SFP+ MSA. Ask your FIS salesperson to quote any non MSA standard programed SFP.
SFP+ ACTIVE OPTICAL CABLE 10Gbps
Description |
Part # |
| SFP+, Active OM-3 Optical Cable to SFP+, 850nm SR MMF, 10G DDM 1m, MSA Compatible | SFPP-10G-AOC1M-IO |
| SFP+, Active OM-3 Optical Cable to SFP+, 850nm SR MMF, 10G DDM 5m, MSA Compatible | SFPP-10G-AOC5M-IO |
| SFP+, Active OM-3 Optical Cable to SFP+, 850nm SR MMF, 10G DDM 10m, MSA Compatible | SFPP-10G-AOC10M-IO |
| SFP+, Active OM-3 Optical Cable to SFP+, 850nm SR MMF, 10G DDM 25m, MSA Compatible | SFPP-10G- AOC25M-IO |

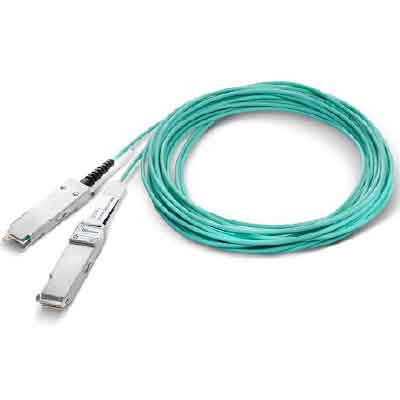

QSFP+ ACTIVE OPTICAL CABLE
QSFP+ and QSFP28 Active Optical Cables support a 40Gbps or 100Gbps operating data rate, with lengths ranging from 1m to 100m and have compatibility with commercial temperature ranges. They are QSFP+ and QSFP28 MSA compliant. Ask your FIS salesperson to quote any non MSA standard programed SFP.
QSFP+ ACTIVE OPTICAL CABLE 40Gbps
Description |
Part # |
| QSFP+, Active OM-3 Optical Cable to QSFP+, 850nm SR4 40G, 1m, MSA Compatible | QSFP-40G-AOC1M-IO |
| QSFP+, Active OM-3 Optical Cable to QSFP+, 850nm SR4 40G, 5m, MSA Compatible | QSFP-40G-AOC5M-IO |
| QSFP+, Active OM-3 Optical Cable to QSFP+, 850nm SR4 40G, 10m, MSA Compatible | QSFP-40G-AOC10M-IO |
| QSFP+, Active OM-3 Optical Cable to QSFP+, 850nm SR4 40G, 25m, MSA Compatible | QSFP-40G-AOC25M-IO |
QSFP28 ACTIVE OPTICAL CABLE 100Gbps
Description |
Part # |
| QSFP28, Active OM-3 Optical Cable to QSFP28, SR4 100G, 1m, MSA Compatible | QSFP28-100G-AOC1M-IO |
| QSFP28, Active OM-3 Optical Cable to QSFP28, SR4 100G, 5m, MSA Compatible | QSFP28-100G-AOC5M-IO |
| QSFP28, Active OM-3 Optical Cable to QSFP28, SR4 100G, 10m, MSA Compatible | QSFP28-100G-AOC10M-IO |
| QSFP28, Active OM-3 Optical Cable to QSFP28, SR4 100G, 25m, MSA Compatible | QSFP28-100G-AOC25M-IO |
SFP+ ACTIVE AND PASSIVE DIRECT ATTACH CABLES
SFP+ Active and Passive Direct Attach Cables with operating data rates up to 10.5Gbps and lengths from 0.5m to 10m. They operate in commercial temperature ranges, are SFP+ MSA compliant, and are suitable for Multi-Rate Fiber Channel, Data Center and Enterprise Networks. Ask your FIS salesperson to quote any non MSA standard programed SFP.
SFP+ ACTIVE DIRECT ATTACH CABLE 10Gbps
Description |
Part # |
| SFP+, Direct Attach Twinax Cable, Active, 7m, MSA Compatible | SFPP-10G-ADAC7M-IO |
| SFP+, Direct Attach Twinax Cable, Active, 10m, MSA Compatible | SFPP-10G-ADAC10M-IO |
SFP+ PASSIVE DIRECT ATTACH CABLE 10Gbps
Description |
Part # |
| SFP+, Direct Attach Twinax Cable, Passive, 1m, MSA Compatible | SFPP-10G-PDAC1M-IO |
| SFP+, Direct Attach Twinax Cable, Passive, 3m, MSA Compatible | SFPP-10G-PDAC3M-IO |
| SFP+, Direct Attach Twinax Cable, Passive, 5m, MSA Compatible | SFPP-10G-PDAC5M-IO |
QSFP+ PASSIVE DIRECT ATTACH CABLES
QSFP+ Passive Direct Attach Cables with a 40Gbps operating data rate and lengths ranging from 0.5m to 7m. These cables feature a Direct Attach Copper Cable Interface and are designed for commercial temperature ranges. They are QSFP+ MSA compliant. Ask your FIS salesperson to quote any non MSA standard programed SFP.

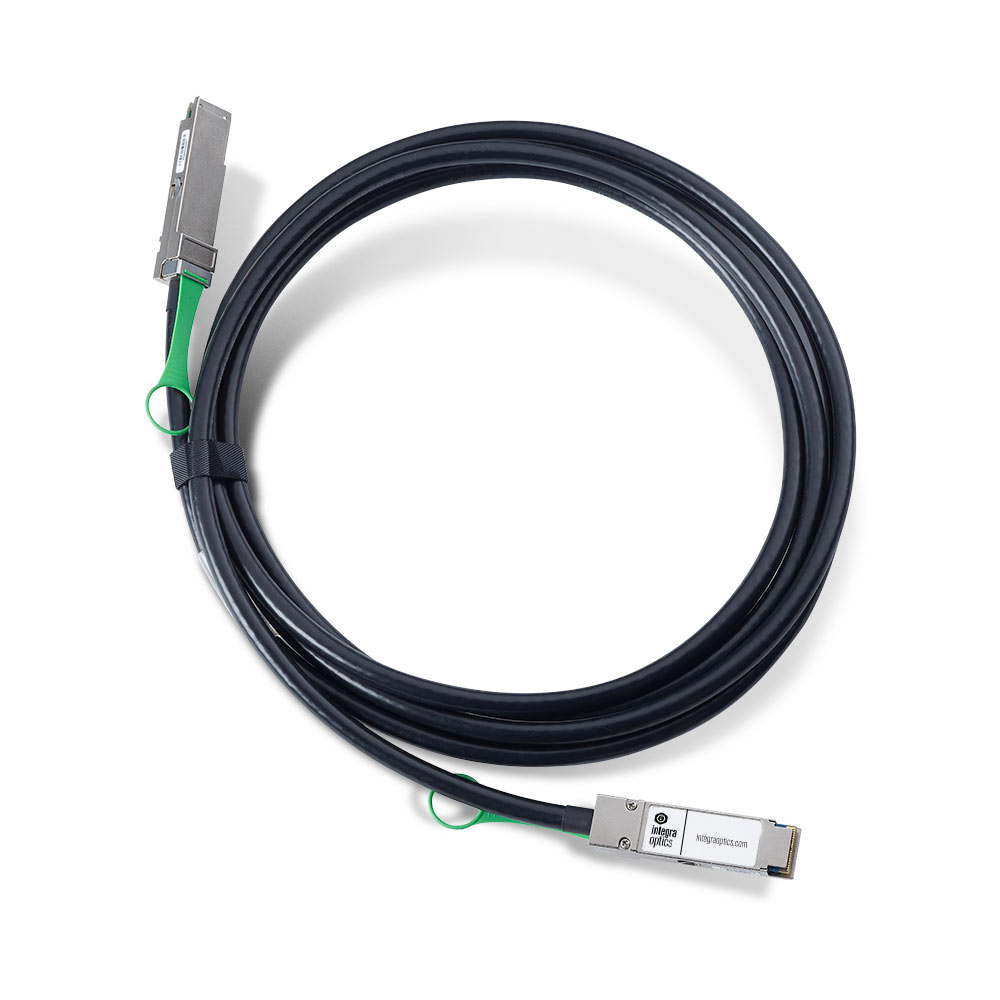

QSFP+ PASSIVE DIRECT ATTACH CABLE 40Gbps
Description |
Part # |
| QSFP+, Passive Copper Cable to QSFP+, CR4 40G, 1m, MSA Compatible | QSFP-40G-PDAC1M-IO |
| QSFP+, Passive Copper Cable to QSFP+, CR4 40G, 3m, MSA Compatible | QSFP-40G-PDAC3M-IO |
| QSFP+, Passive Copper Cable to QSFP+, CR4 40G, 5m, MSA Compatible | QSFP-40G-PDAC5M-IO |

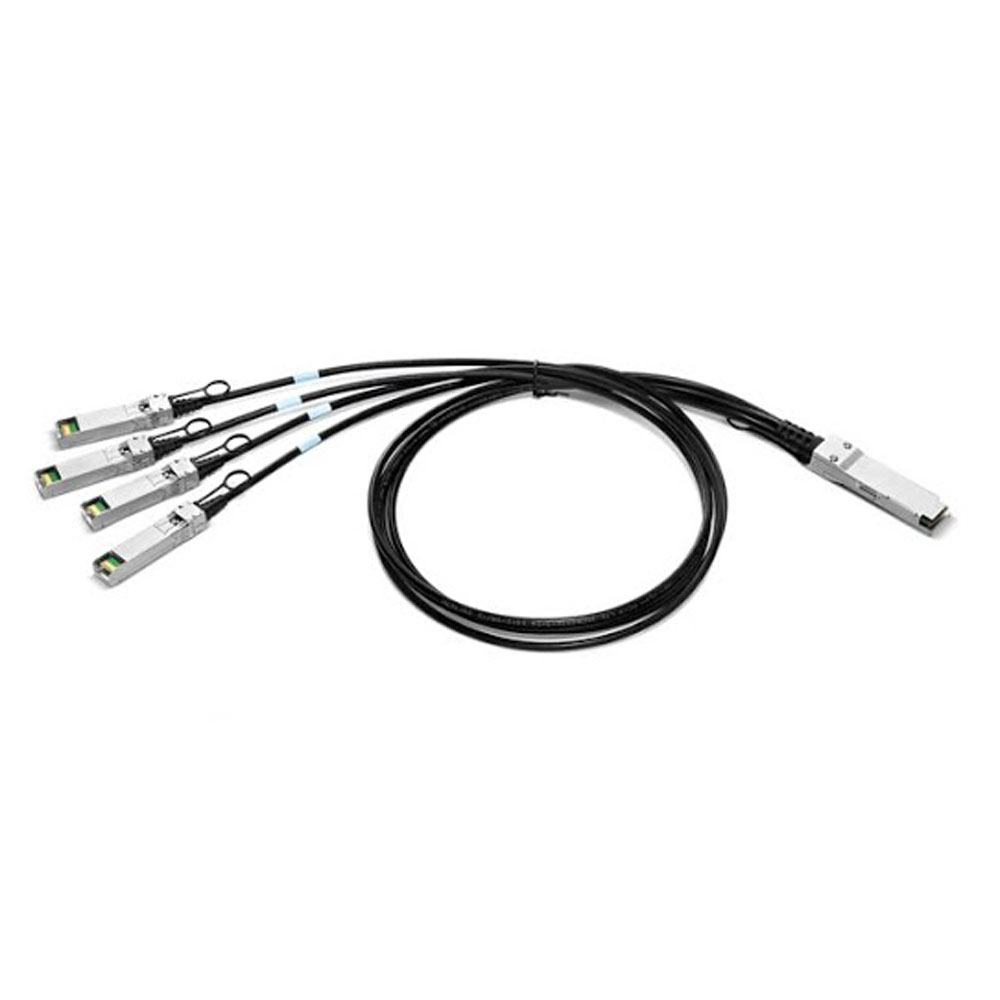

QSFP+ PASSIVE DIRECT ATTACH CABLE BREAKOUT 40Gbps
Description |
Part # |
| QSFP+, Passive Copper Cable 30AWG to 4xSFP+, CR4 40G, 1m, MSA Compatible | QSFP-4X10G-PDAC1M-IO |
| QSFP+, Passive Copper Cable 30AWG to 4xSFP+, CR4 40G, 3m, MSA Compatible | QSFP-4X10G-PDAC3M-IO |
| QSFP+, Passive Copper Cable to 4xSFP+, CR4 40G, 5m, MSA Compatible | QSFP-4X10G-PDAC5M-IO |
