Standard FC Connectors
FC connectors are specifically designed for telecommunication applications and provide non-optical disconnect performance. Designed with a threaded coupling for durable connections. The ferrule is PC finished to a pre-radius, which ensures low back reflection. Stainless alloy ferrules can be custom drilled to your specifications. All FIS FC connectors use narrow key (2.0mm).
FIS FC CONNECTORS
Type |
Boot Size |
Ferrule
|
Ferrule |
Part # |
| Multimode | 3mm | 127µm | Zirconia | F1-2073 |
| Multimode | 2mm | 127µm | Zirconia | F-1207320 |
| Multimode | 900µm | 127µm | Zirconia | F1-2073900 |
| Multimode | 3mm | 140µm | Zirconia | F1-2777 |
| Multimode | 3mm | 128µm | Stainless Alloy | F1-2771 |
| Multimode | 3mm | 140µm | Stainless Alloy | F1-2772 |
| Multimode | 3mm | 230µm | Stainless Alloy | F1-2774 |
| Singlemode | 3mm | 126µm | Zirconia | F1-2070 |
| Singlemode | 2mm | 126µm | Zirconia | F1-207020 |
| Singlemode | 900µm | 126µm | Zirconia | F1-2070900 |
| Singlemode APC | 3mm | 126µm | Zirconia | F1-2070APC |
| Singlemode APC | 2mm | 126µm | Zirconia | F1-2070APC20 |
| Singlemode APC | 900µm | 126µm | Zirconia | F1-2070900APC |
| Multimode 10 Gig | 3mm | 127µm | Zirconia | F1-2073AQ |
| Multimode 10 Gig | 900µm | 127µm | Zirconia | F1-2073AQ900 |
|
|

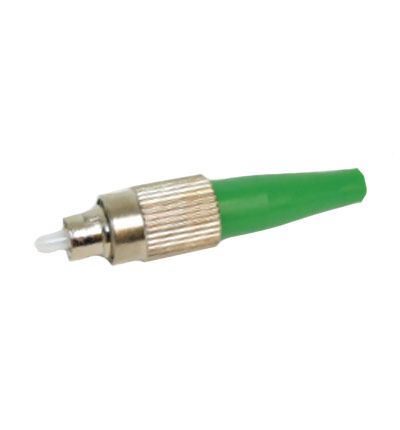

Type |
Boot Size |
Ferrule |
Part # |
| Import | Singlemode | 3mm / White | Zirconia | F12070CI |
| Import | Singlemode APC | 3mm / Green | Zirconia | F12070CIAPC |
| Import | Singlemode | 2mm / White | Zirconia | F12070CI2 |
| Import | Singlemode APC | 2mm / Green | Zirconia | F12070CI2APC |
| Import | Singlemode | 900µm / White | Zirconia | F12070CI900 |
| Import | Singlemode | 900µm / Blue | Zirconia | F12070CI900UPC |
| Import | Singlemode APC | 900µm / Green | Zirconia | F12070CI900APC |

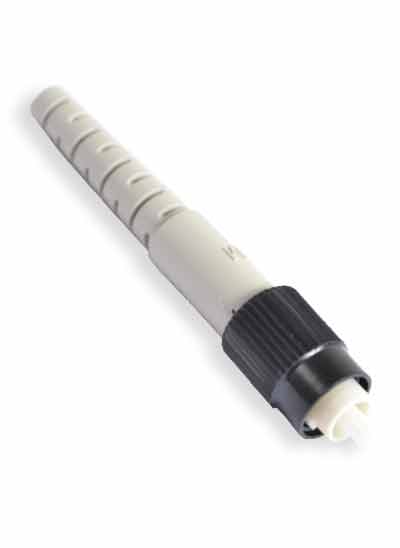

CORNING FC CONNECTORS
Type |
Boot Size |
Ferrule
|
Ferrule |
Part # |
| Singlemode with Plastic Housing APC | 3mm | 126µm | Zirconia | 8206FCAPC |
| Multimode | 3mm | 125µm | Zirconia | 95-100-10SP |
| Multimode | 3mm | 125.5µm | Zirconia | 95-100-10SP2 |

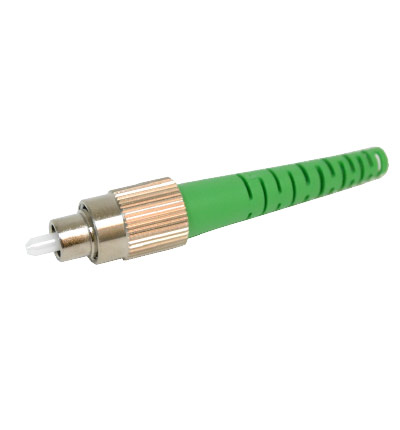

SEKOH GIKEN FC CONNECTORS
Type |
Boot Size |
Ferrule
|
Ferrule |
Part # |
| Singlemode | 900µm / White | 126µm | Zirconia | SAP8311260A300G |
| Singlemode APC | 3mm / Green | 126µm | Zirconia | SNP8871261B3K2G |
| Singlemode | 3mm / White | 126µm | Zirconia | SAP83331261A700G |
| Singlemode | 3mm / Blue | 126µm | Zirconia | SAP8531261A700G |
| Singlemode | 900µm / Blue | 126µm | Zirconia | SAP8591251A700G |

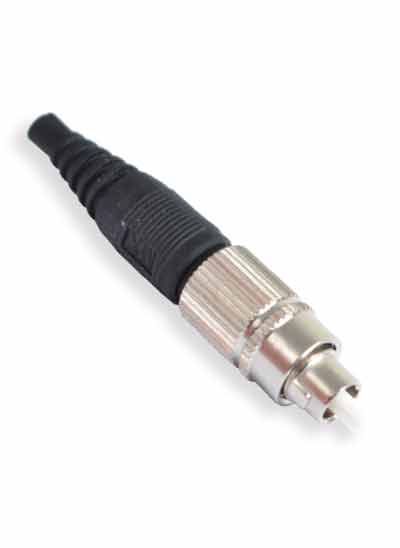

MOLEX FC CONNECTORS
Type |
Boot Size |
Ferrule
|
Ferrule |
Part # |
| Singlemode - Narrow Key APC | 3mm | 126µm | Zirconia | 106055-5000 |
| Singlemode - Narrow Key APC | 900µm | 126µm | Zirconia | 106055-5500 |
FIS BULK EPOXY STYLE CONNECTORS (Buy Bulk and Save)
FIS multimode and singlemode ST, SC, LC and FC connectors utilize high quality zirconia ferrules. Bulk packaged in lots of 100 pieces, these connectors offer the best value in performance and cost savings. Provided with 3mm or 900µm boots.
Description |
Part # |
| FIS MM FC Connector with 3mm boots - (100 pk.) | F1-2073-100 |
| FIS SM FC Connector with 3mm boots - (100 pk.) | F1-2070-100 |
Note: Connectors Available In 900µm Versions
