MTP Connectors
USCONEC MTP® CONNECTORS
US Conec manufactures durable MTP® brand connectors that provide quick connection for up to 72 optical fibers. MTP® ferrules are available as Standard or Elite options (see table below for specifications). MTP® Connectors have variants of 8, 12, 16, 24, 32, 48, and 72 fibers, with the 12 and 24 options being the most common. From 12 - 72 fibers listed are 12 & 24 variations.
Description |
Boot Size |
Ferrule
|
Part # |
| MTP Connector 12 Fiber Multimode OM1 Male Beige Housing | Standard | 3.0mm/Round | MTP-12MMBRD |
| MTP Connector 12 Fiber Multimode OM1 Female Beige Housing | Standard | 3.0mm/Round | MTP-12MFBRD |
| MTP Connector 12 Fiber Singlemode APC Female Mustard Housing | Elite | Ribbon/Oval | MTP-12SMFEOV |
| MTP Connector 12 Fiber Singlemode APC Male Mustard Housing | Elite | Ribbon/Oval | MTP-12SMMEOV |
| MTP Connector 12 Fiber Multimode OM3/4 Male Aqua Housing | Elite | Ribbon/Oval | MTP12MMMEOV |
| MTP Connector 24 Fiber Multimode OM3/4 Female Aqua Housing | Elite | Ribbon/Oval | MTP-24MFEOV |
| MTP Connector 24 Fiber Multimode OM3/4 Male Aqua Housing | Elite | Ribbon/Oval | MTP-24MMEOV |
| MTP Connector 24 Fiber Singlemode APC Male Green Housing | Standard | Ribbon/Oval | MTP-24SMOV |
| MTP Connector 24 Fiber Singlemode APC Female Green Housing | Standard | Ribbon/Oval | MTP-24SFOV |
| MTP Connector 12 Fiber Singlemode APC Female Mustard Housing | Elite | 3.0mm/Round | MTP12SMFERD |
| MTP Connector 12 Fiber Singlemode APC Male Mustard Housing | Elite | 3.0mm/Round | MTP12SMMERD |
| MTP Connector 12 Fiber Multimode OM3/4 Female Aqua Housing | Elite | 3.0mm/Round | MTP12MEFRD |
| MTP Connector 12 Fiber Multimode OM3/4 Male Aqua Housing | Elite | 3.0mm/Round | MTP12MEMRD |
NOTE: Singlemode MTP Connectors are angled at 8º to improve performance (indicated by green housing)

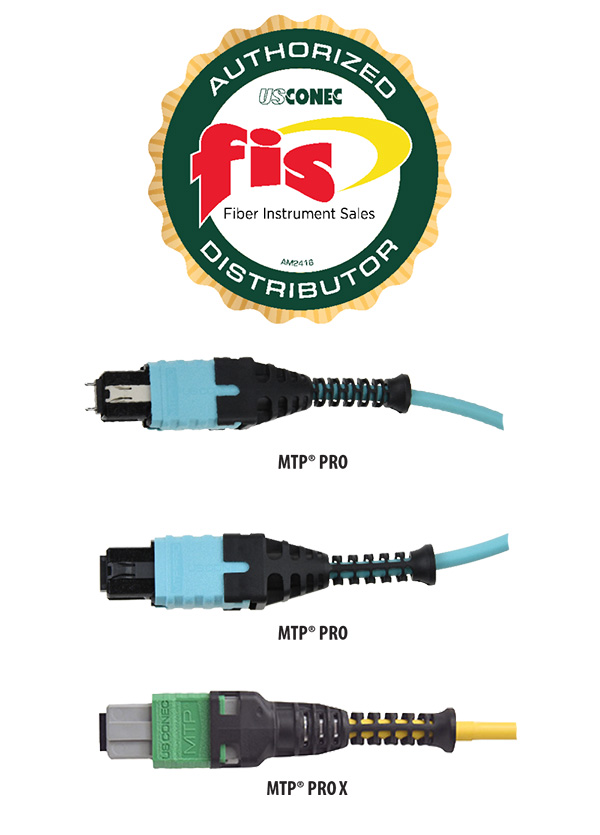

USCONEC MTP PRO Connector Field Tool
The MTP® PRO connector offers quick and effective polarity and pin reconfiguration in the field while ensuring product integrity and performance by utilizing the MTP® PRO field tool. The PRO connectors are available as an option on cable assemblies (see page 30). Purchase the Pro field tool to change gender or polarity, extra pin exchanges are available in ten packs.
Description |
Ferrule |
Cable Type |
Part # |
| MTP PRO Connector Kit, Female, MM, Aqua | Elite | 2.8-3.2mm Round | MTP-12MMF-PRO-RD |
| MTP PRO Connector Kit, Male, MM, Aqua | Elite | 2.8-3.2mm Round | MTP-12MMM-PRO-RD |
| MTP PRO Connector Kit, Male, SM, Green | Elite | 2.8-3.2mm Round | MTP-12SMM-PRO-RD |
| MTP PRO Connector Kit, Female, SM, Green | Elite | 2.8-3.2mm Round | MTP-12SMF-PRO-RD |
| MTP Pro Field Tool |
18814 | ||
| MTP Pro Pin Exchanger, SM Elite, Female (No Pins), Yellow holder, 10 pack |
18841 | ||
| MTP Pro Pin Exchanger, SM Elite, Male (With Pins), Yellow holder, 10 pack |
18843 | ||
| MTP Pro Pin Exchanger, MM, Female (No Pins), Aqua holder, 10 pack |
18256 | ||
| MTP Pro Pin Exchanger, MM, Male (With Pins), Aqua holder, 10 pack |
18842 | ||
