UBIQUITI PRODUCTS: PON/WISP | NETWORK  INFRASTRUCTURE EQUIPMENT

XG PON OPTICAL LINE TERMINALS(OLTs) / OPTICAL NETWORK UNITS (ONUs)

UISP Fiber XGS/XG/G-PON OLT  delivers 10 Gbps uplink/downlink speeds to over 2,000 subscribers. It supports XGS-PON 10 Gbps bi-directional capacity and has a 2048 client capacity (8 ports) with 4 25G SFP28 uplink ports. The device is a 1U rack mount and supports AC/DC power module redundancy. Optical Network Units provide interface at customer premise.

G PON OPTICAL LINE TERMINALS (OLTs) / OPTICAL NETWORK UNITS (ONUs)

The UFiber OLT is an eight-port GPON optical line terminal (OLT) designed to manage fiber internet service for up to 1,024 clients (128 per port). It has a capacity of 2.488 Gbps downstream / 1.244 Gbps upstream and comes with two 10G SFP+ uplink ports. Working with the OLT, the UFiber WiFi6 GPON CPE is a point-to-multipoint Wi-Fi 6 device that creates high-speed GPON connections capable of reaching a 2.4 Gbps downstream rate and 1.2 Gbps upstream rate. Also working with the UF-OLT, is the UFiber Loco, it is the customer-premises equipment (CPE) that pairs high performance with extremely low power consumption. It has one GPON port and one GbE RJ45 LAN port and can be powered by either 24V passive PoE or Micro-USB power.

Optical Transceiver Modules (SFP MODULES)

Ubiquiti optical transceiver modules for UISP for Optical Line Terminals.

UISP Routers and Switches

The UISP Router and the UISP Switch are designed to support wireless internet service provider (WISP) applications. They also work in conjunction with the UISP Console to manage WISP deployments. The Router is a fanless PoE unit that supports traffic shaping and automated customer suspension. These units may be staged outdoors when enclosed in the UISP Box listed below. All units are managed using the UISP application.

60 GHz Wireless Internet Access Points

Ubiquiti 60 GHz Wave Access Point base stations include the Wave AP and Wave AP Micro with up to 8 km link range. The Wave AP supports up to 5.4 Gbps max throughput, with 30 degree coverage (90 Degree with 3 units) and the AP Micro supports 5 Gbps max throughput at 90 degree coverage (Single unit). For the client side, below are the Wave Nano which supports up to 5 km range and 1 Gbps duplex signal and the Wave Long Range which support up to 8 km and 1 Gbps duplex signals.

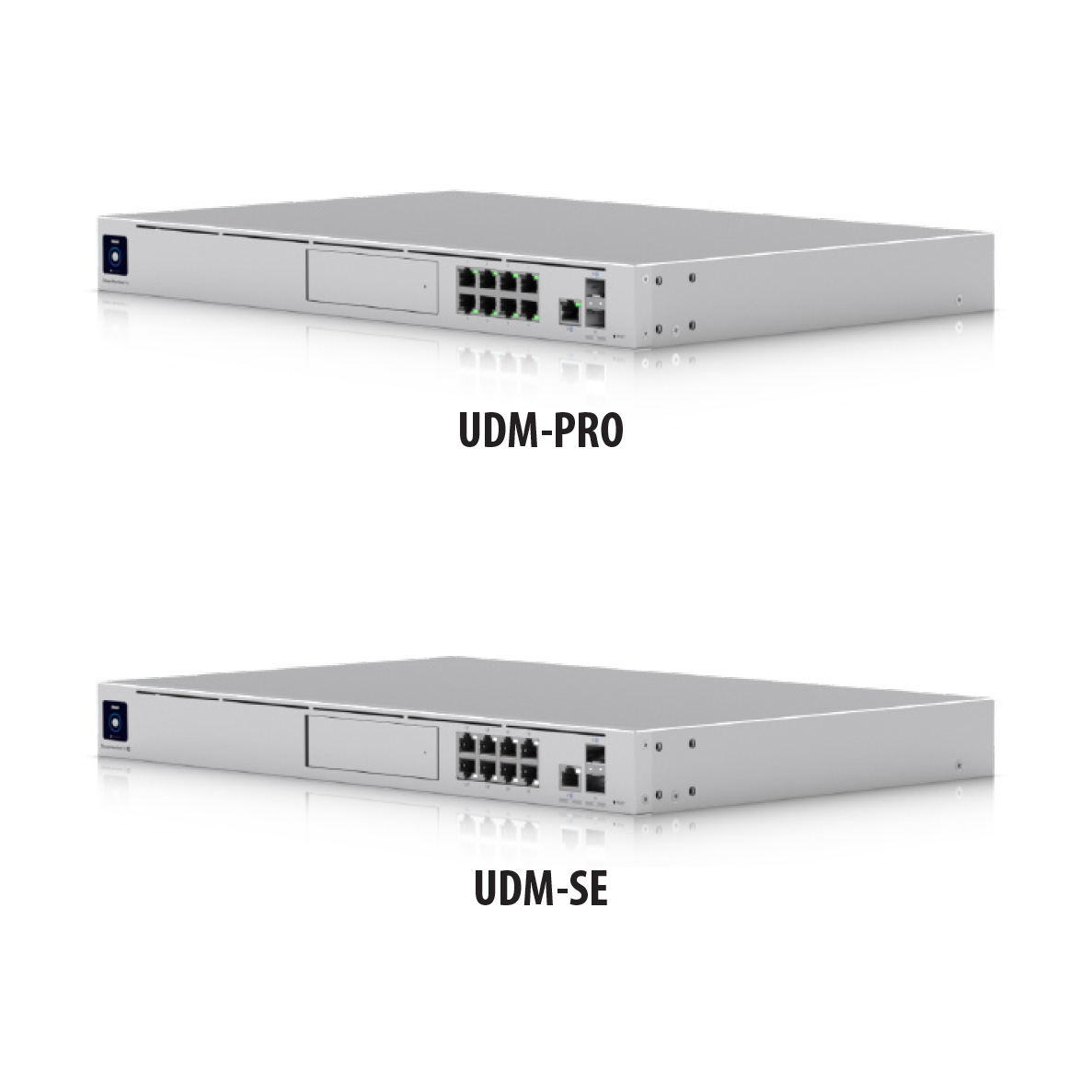

UNIFI Cloud Gateways/Consoles

Manage UNIFI network products with one of these Cloud Gateways that run the UNIFI cloud software. These gateways range from small business applications to enterprise grade performance. They support up to 10 Gbps and may have integrated PoE Switches.

Unifi Layer 2 Aggregation and Layer 3 Switches

Layer 2 aggregation switches are excellent choices for enhancing network performance and reliability. The layer 3 professional switch comes with 24 or 48 ports, up to 720W PoE availability, and up to 25 Gbps uplink speed. The professional Max switch has 16, 24, or 48 ports, up to 720W PoE availability, and up to 10 Gbps downlink speed. Ubiquiti offers a range of aggregation switches that cater to various networking needs. Please contact your FIS sales representative for SFP options.

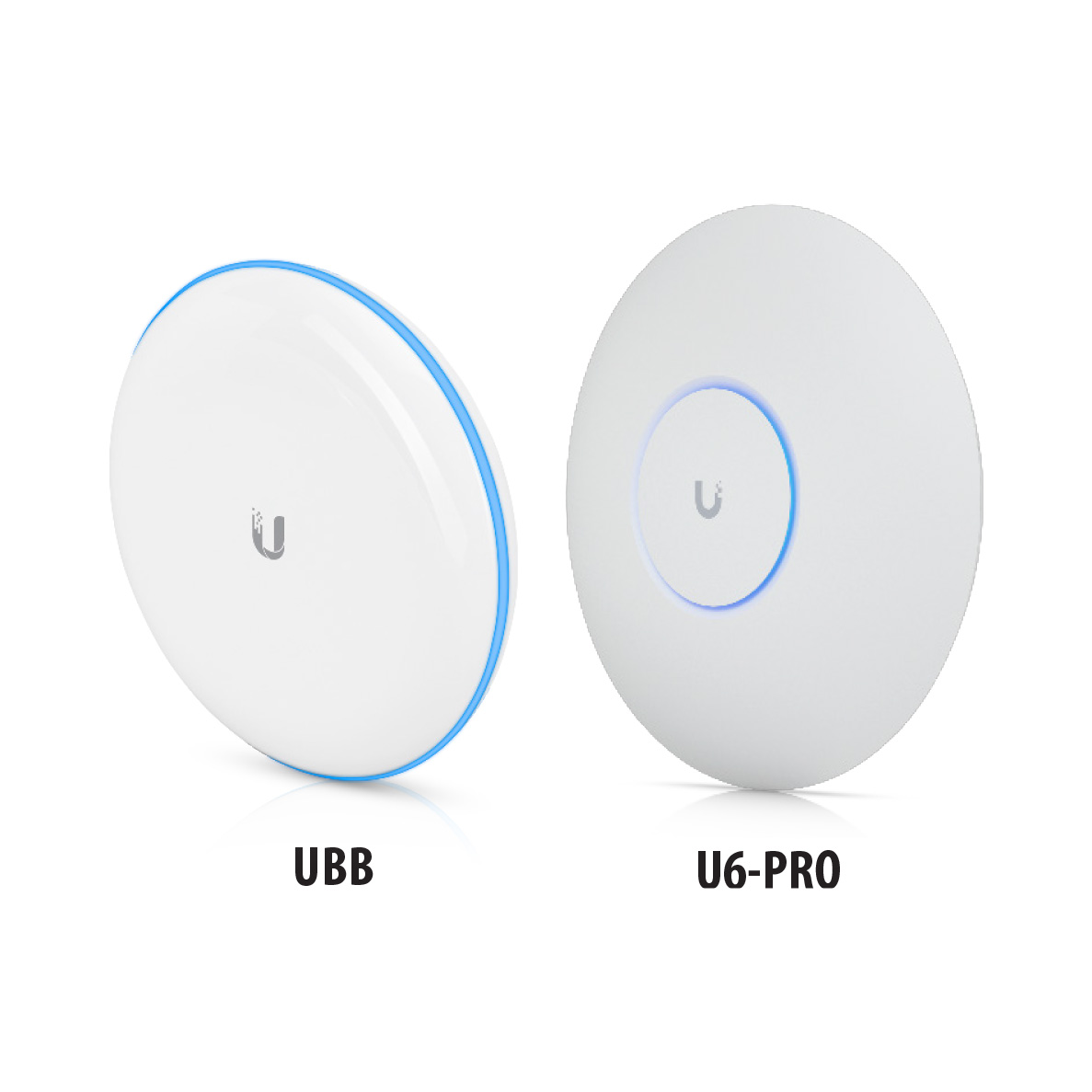

Wifi Access Points (AP) / Building Bridge

UniFi access points are designed to provide enterprise-class performance, effortless scalability, and an unrivaled management experience. The flagship ceiling-mounted model is designed for highest performance, while the in-wall model offers seamless installation and the versatile outdoor model can be deployed into any environment. The UniFi APs are WiFi 6 compatible and offer PoE (Power over Ethernet) operation.  The wireless point to point building bridge allows the extension of a network, wirelessly to remote buildings.

Cameras

UNIFI offers a wide range of cameras and recording options for all conditions. Below are a few of the options. Please contact your FIS sales representative for more information or choices in Ubiquiti product line.
