Wavelength Division Multiplexers & Couplers/Splitters
Wavelength Division Multiplexing is a technology utilized in fiber optics that allows multiple laser sources to broadcast through a single fiber. A WDM enables a single fiber to broadcast Bi-Directionally and increase bandwidth by a factor of the number of light sources utilized. There are sub categories of WDM that refer to the number of allowable lasers (channels) used, each source is spaced equally by a defined separation of wavelength.
250um

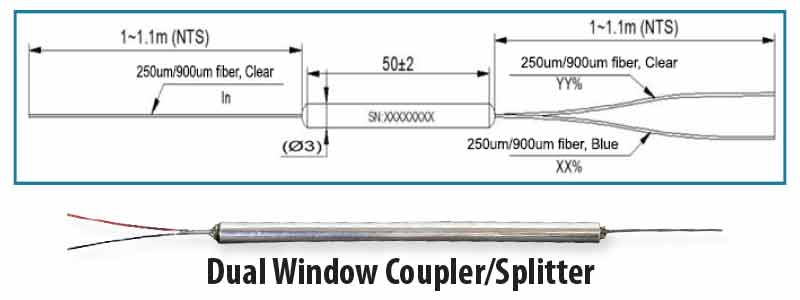

SINGLEMODE DUAL WINDOW COUPLERS/SPLITTERS
Description |
Part # |
| 1x2 (1310/1550nm) 50/50 Ratio | Z1SDW13550122UC |
| 1x2 (1310/1550nm) 10/90 Ratio | Z1SDW13510122UC |
| 1x2 (1310/1550nm) 20/80 Ratio | Z1SDW13520122UC |
| 1x2 (1310/1550nm) 30/70 Ratio | Z1SDW13530122UC |
| 1x2 (1310/1550nm) 40/60 Ratio | Z1SDW13540122UC |
| 2x2 (1310/1550nm) 50/50 Ratio | Z1SDW13550222UC |
900um SINGLEMODE DUAL WINDOW COUPLERS/SPLITTERS
Description |
Part # |
| 1x2 (1310/1550nm) 50/50 Ratio | Z1SDW13550129UC |
| 1x2 (1310/1550nm) 10/90 Ratio | Z1SDW13510129UC |
| 1x2 (1310/1550nm) 20/80 Ratio | Z1SDW13520129UC |
| 1x2 (1310/1550nm) 30/70 Ratio | Z1SDW13530129UC |
| 1x2 (1310/1550nm) 40/60 Ratio | Z1SDW13540129UC |
| 2x2 (1310/1550nm) 50/50 Ratio | Z1SDW13550229UC |
250um MULTIMODE COUPLERS/SPLITTERS (800-1600nm)
Description |
Part # |
| 1x2 62.5/125μm Coupler 50/50 Ratio 250µm Fiber | Z1MMC28550122C |
| 1x2 50/125μm Coupler 50/50 Ratio 250µm Fiber | Z1MMC38550122C |
900um MULTIMODE COUPLERS/SPLITTERS (800-1600nm)
Description |
Part # |
| 1x2 62.5/125μm Coupler 50/50 Ratio 900µm Fiber | Z1MMC28550129C |
| 1x2 50/125μm Coupler 50/50 Ratio 900µm Fiber | Z1MMC38550129C |
WAVELENGTH DIVISION MULTIPLEXERS
A Wave Division Multiplexer (WDM) is a coupler that enables you to channel a signal to multiple devices operating at different wavelengths.
250um
Description |
Part # |
| 1x2 Sm Dual Window (1310/1550nm) WDM 250µm Fiber | Z1WDM13550122UC |
900μm
Description |
Part # |
| 1x2 Sm Dual Window (1310/1550nm) WDM 900µm Fiber | Z1WDM13500129UC |

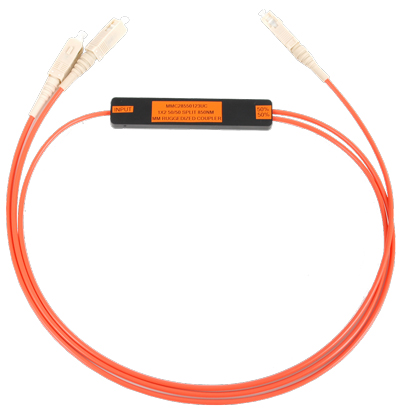

Ruggedized 2mm/3mm Jacketed Coupler/Splitters
Description |
Part # |
| Ruggedized Splitter, SM, 1 x 2, 50/50 split, SC/APC-SC/APC, 2mm jacketing | RSC-3-S-2-50-YA-YA-2 |
| Ruggedized Splitter, SM, 1 x 2, 55/45 split, SC/APC-SC/APC, 2mm jacketing | RSC-3-S-2-45-YA-YA-2 |
| Ruggedized Splitter, SM, 1 x 2, 60/40 split, SC/APC-SC/APC, 2mm jacketing | RSC-3-S-2-40-YA-YA-2 |
| Ruggedized Splitter, SM, 1 x 2, 70/30 split, SC/APC-SC/APC, 2mm jacketing | RSC-3-S-2-30-YA-YA-2 |
| Ruggedized Splitter, SM, 1 x 2, 90/5 split, SC/APC-SC/APC, 2mm jacketing | RSC-3-S-2-05-YA-YA-2 |
| Ruggedized Splitter, 50µm, 1 x 2, 50/50 split, SC/PC-SC/PC, 3mm jacketing | RSC-1-S-2-50-Y-Y-3 |
| Ruggedized Splitter, 50µm, 1 x 2, 60/40 split, SC/PC-SC/PC, 3mm jacketing | RSC-1-S-2-40-Y-Y-3 |

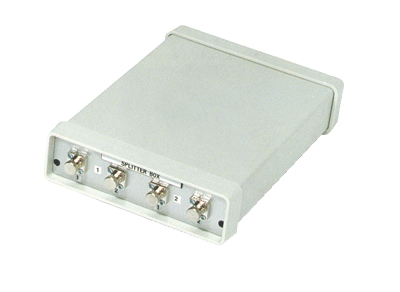

Packaged Network Coupler and Tree Coupler
Description |
Part # |
| Packaged Network Coupler Box, Singlemode, 50/50 split, 1x2 SC/UPC Adapters | PNC-3-S-2-50-YU-YU |
| Packaged Network Coupler Box, Singlemode, 90/10 split, 1x2, SC/UPC Adapters | PNC-3-S-2-10-YU-YU |
| Packaged Network Coupler Box, Singlemode, Even split, 1x4, SC/UPC Adapters | PNC-3-S-4-EV-YU-YU |
| SM Tree Coupler Module, 1x4, 1310/1550nm 900µm | SSSCA1X435259C |
