COYOTE ATC – AERIAL TERMINAL CLOSURE

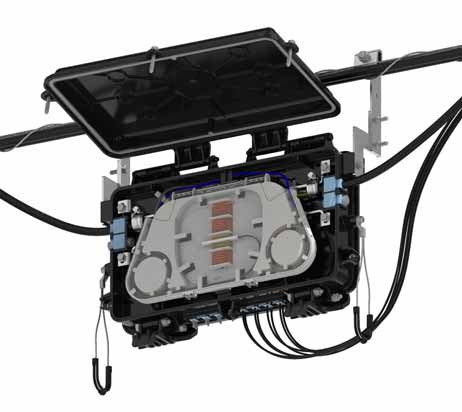

The new COYOTE® ATC is Preformed Line Products’ first purpose-built aerial closure system focused to support the drop distribution network without the need for specialized drop cable assemblies. The closure features a unique dual chamber design with independent access to the splice/slack storage chamber and to the drop connection chamber. Inside the closure is a large slack storage area and splice tray system which support single fusion, mass fusion, mechanical splice protectors or splitter technology.
• Size: 17” x 10” x 4” (432 x 254 x 102 mm)
• Max Splice Capacity: 48
• Max Adapter Capacity: 16
• Grommet Quantity: Splice Chamber – 4, Drop Chamber – 8
• Application: Aerial
• Adapter Types Supported: SCAPC, SCUPC, LCAPC, LCUPC
• Re-enterable and reusable

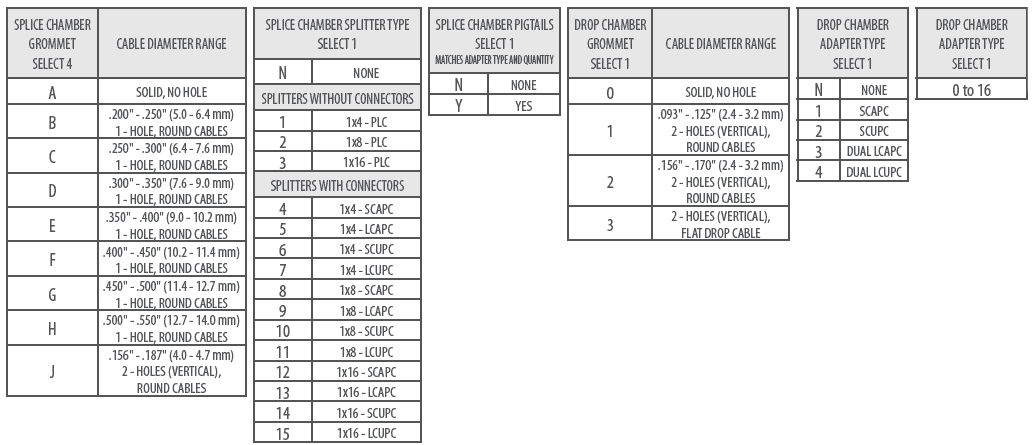

Coyote ACT Enclosure Configurator
