Standard configurations (typical lead-time 2-4 days) Convert your next project to “plug n’ go” by having your cable assemblies preterminated by FIS. Our expert technicians prepare assemblies from 1-fiber patchcords to 144-fiber assemblies, while offering a wide array of components for you to create the perfect assembly for your application. Included below are manufacturing specifications for FIS’s pre-terminated assemblies to better help you prepare your installation. If a need arises to change a specification to best meet your application, please call your FIS representative for more details and refer to the custom configuration section to see the various services available.

Length



Simplex / Duplex

Total Length -0/+3" (>5 MTRS), -0/+10% (<5 MTRS)
Breakout = N/A
Maximum Connector To Connector = 1.5"

Multifiber

Total Length
= -0/+3" (>5 MTRS), -0/+10% (<5 MTRS)=
Breakout = 1 MTR (-0/+3")
Maximum Connector To Connector = 1.5"

Testing



Insertion Loss

Multimode = >/= 0.4 dB (Typical)
Singlemode = >/= 0.3 dB (Typical)

Return Loss

PC = </= -25dB
UPC = </= -55dB
APC = </= -60 dB

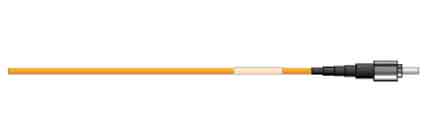

Simplex Patchcord

Simplex Patchcord

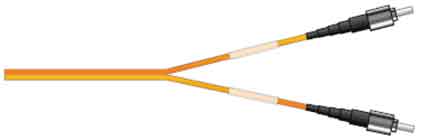

Unclipped Duplex Patchcord

Unclipped Duplex Patchcord

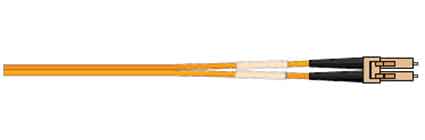

Clipped Duplex Patchcord

Clipped Duplex Patchcord

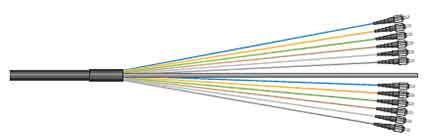

Loosetube Cable Assembly

Loosetube Cable Assembly

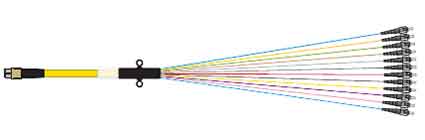

Ribbon Fanout Assembly

Ribbon Fanout Assembly

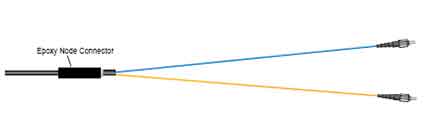

Node Cable Assembly

Node Cable Assembly

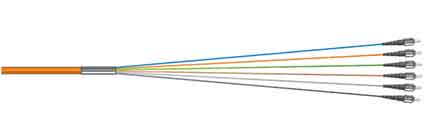

Distribution - Indoor/Outdoor Assembly


I/O Distrubution Assembly
