Fiber Video Inspection Probe

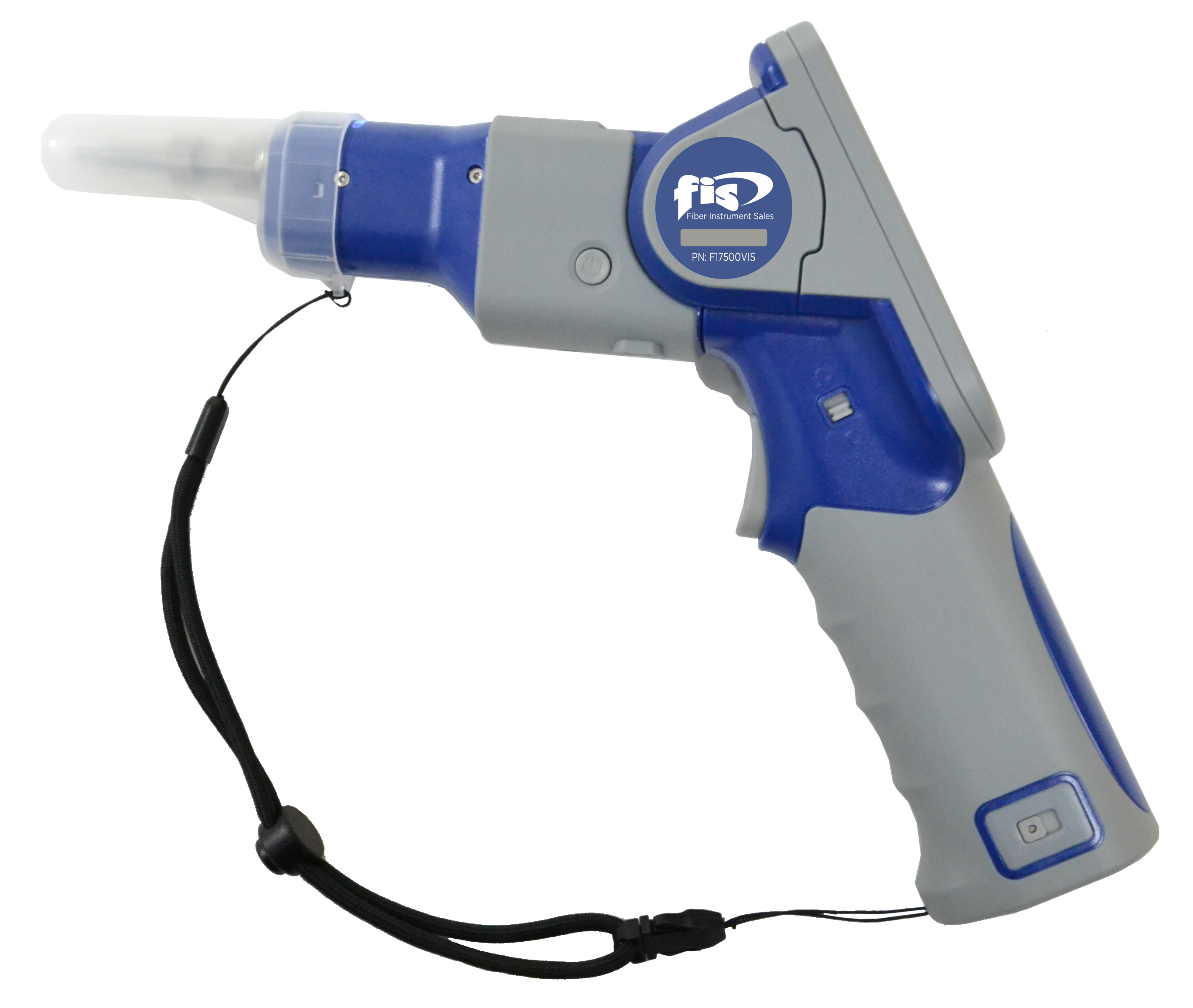

This Fiber Inspection Probe, our newest offering at FIS, is loaded with features at a comparably low cost. The ergonomic hand held design can be used in a completely vertical/horizontal fashion or it can fold inward to about a 45 degree angle allowing it to be used in a number of positions within an enclosure or patch panel.
With the push of one button the probe will lock onto the connector end face image, automatically center and focus it and then analyze it against the industry I.E.C. end face inspection criteria to display a PASS or FAIL. The probe has a WiFi USB adapter that can be used to transfer saved data wirelessly to a laptop or
computer. USB hardwire connection also is available.
Call A FIS Sales Representative 1-800-5000-FIS(347) or
• Auto-Focus, Auto-Centering, with Pass/Fail Analysis
• Unit comes included with 2.5mm & 1.25mm UPC patch cord tips and UPC SC & LC bulkhead tips
• APC and MPO tips available upon request
• Convenient LED flashlight on-board
| Projects | MTP/MPO Parameters | Common Interface Parameters |
| Resolution | 0.92μm | 0.52μm |
| Image Sensor | 1/1.8" CMOS | 1/1.8" CMOS |
| Optical Magnification | x5 | x8.72 |
| Display | 480 x 800 3.2" LCD touch screen | 480 x 800 3.2" LCD touch screen |
| Display Frame Rate | 25 fps | 25 fps |
| Field of View | 1440μm x 1100μm (Preview Mode) 220μm x 220μm (Measure Mode) 25 fps |
620μm x 620μm (Preview Mode) 250μm x 250μm (Measure Mode) 130μm x 130μm (Core Mode) |
| Image Magnification | 100x, 200x, and 400x | |
| Particle Detection | < 1 μm | < 1 μm |
| Focusing Mode | Auto | Auto |
| Signal Output | WiFi, USB Type C | WiFi, USB Type C |
| Power Supply | Built-In Li-Ion Battery (Chargeable, replaceable) | Built-In Li-Ion Battery (Chargeable, replaceable) |
| Battery Life | 9 Hours | 9 Hours |
| Charging Time | 4 Hours (Charging Current: 2A) | 4 Hours (Charging Current: 2A) |
| Charge Adapter | USB DC Adapter 5V/2A, Including US, EU, UK, AU adapters |
USB DC Adapter 5V/2A, Including US, EU, UK, AU adapters |
| Accessibility | With white LED environment lighting, 60º foldable body |
With white LED environment lighting, 60º foldable body |
| Operation Temperature | -5ºC ~ +40ºC | -5ºC ~ +40ºC |
| Storage Temperature | -20ºC ~ +55ºC | -20ºC ~ +55ºC |
| Relative Humidity | < 90% (Working/Storage) | < 90% (Working/Storage) |
| Weight (Ounces) | 20oz | 20oz |
| Dimensions (Inches) | 11in x 7.9in x 2.25in (foldable) 13.4in x 2.5in x 2.25in (straight) |
11in x 7.9in x 2.25in (foldable) 13.4in x 2.5in x 2.25in (straight) |
| PART# | DESCRIPTION | PRICE |
| F17500VIS | FIS Fiber Inspection Probe | $2,249.00 |
| F17500MPO | MPO/MTP Inspection Scope Tip MM UPC for F17500VIS | $1,285.00 |
| F17500SCA | FIS Bulkhead Inspection Tip SC/APC for F17500VIS | $52.00 |
| F17500UA25 | FIS 2.5 APC Universal Tip for F17500VIS | $52.00 |
