FTTx Solution

Your End to End Broadband Supplier

Let FIS work with your team to help you optimize your FTTx project. Our experienced team of technical professionals can assess the full scope of your FTTx project, help you determine your component requirements, and provide you with a structured bill of materials that will address your network needs today…and for its expansion tomorrow.

• Custom Metal Fabrication
• Cable Assembly Manufacturing
• Stocking Interconnects, Adapters, and Cable

• Technical Resources on PON Architectures
• “Made in USA” Products Available
• Quick Delivery of Stock Items

Head End / Central Office

In every central office, whether a remote centralized facility or a primary facility, you will find fiber optics components and active equipment necessary for connecting the FTTx network to the community. This environment-controlled cabinet or network room is used to power up the Optical Line Terminal (OLT). This location can be used to house several optical fiber interconnects, splitter modules, and patch cables. Call and Speak with a Representative at 1-800-500-0347 To Order.

• Custom Metal Fabrication
• Cable Assembly Manufacturing
• Stocking Interconnects, Adapters, and Cable

• Technical Resources on PON Architectures
• “Made in USA” Products Available
• Quick Delivery of Stock Items

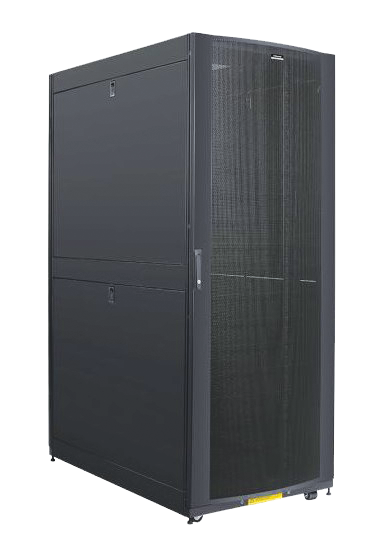

Free Standing Fiber Rack

• 47RU-87”x47” x 31.5”
• 45RU-80”x46” x 23.5”
• Steel Construction
• Adjustable mounting rails
• Top exhaust fans for optimal temperature control (optional)
• Removable side panels for pairing cabinets

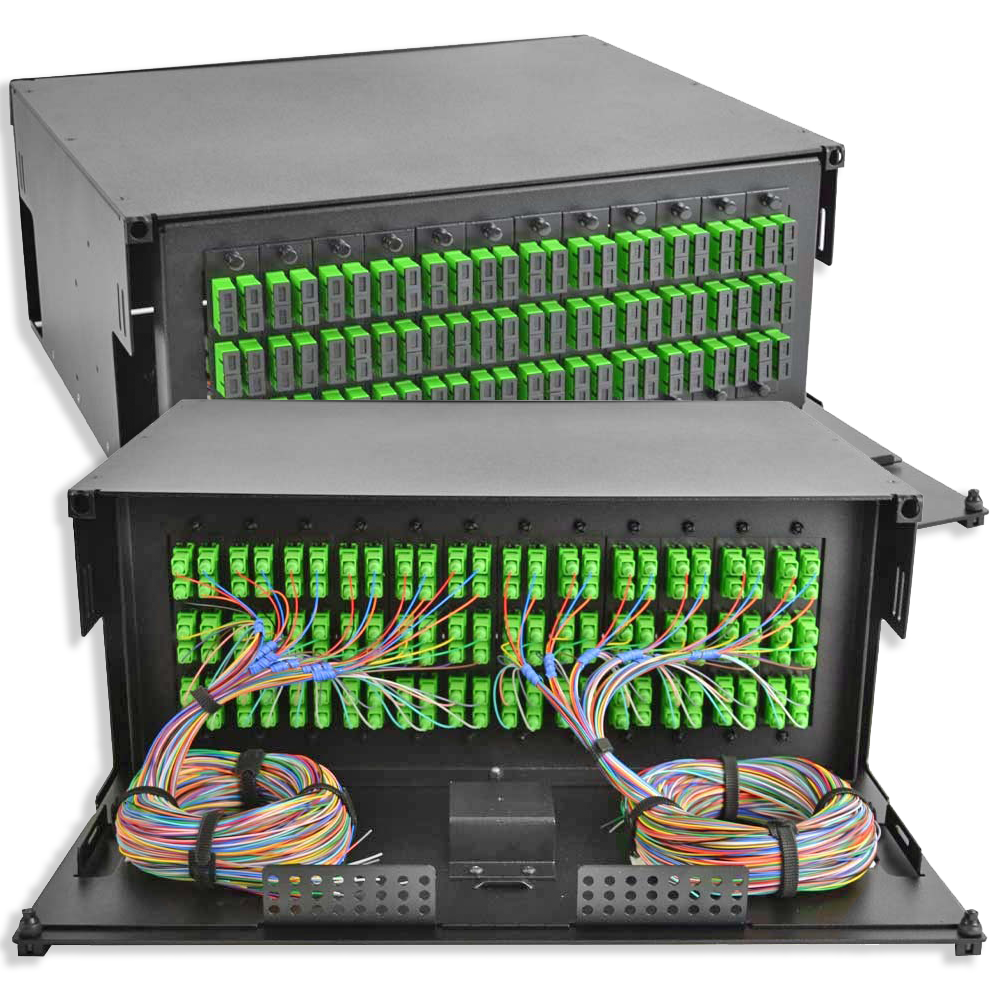

Rack Mount Enclosures w/ Loaded OSP Pigtails

• 4RU-144 SC Ports (288 LC)
• 8RU-288 SC Ports (576 LC)
• 100FT Pigtails loaded using Dielectric or Armored Outside Plant Cable
• Custom Configurations Available

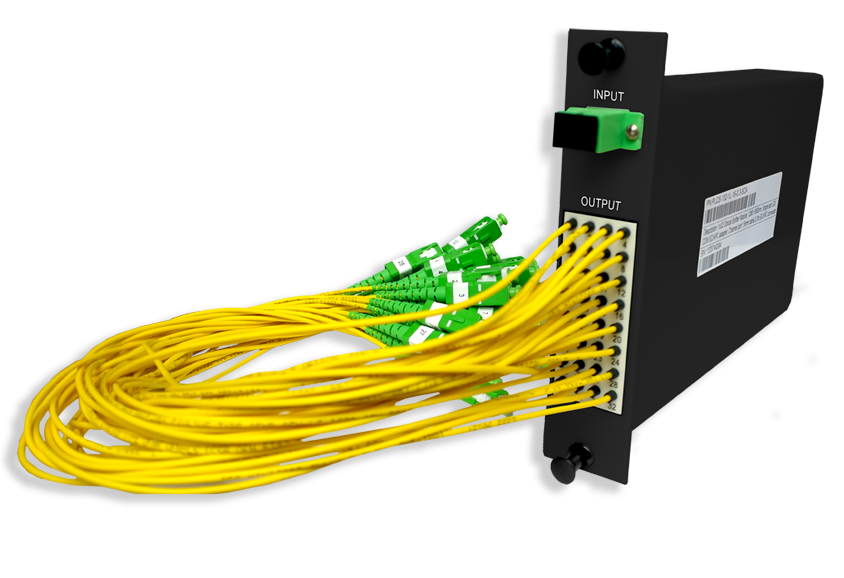

LGX Footprint Rack Mount Splitters

• Offered in 1x2, 1x4, 1x8, 1x16, 1x32 ratios
• Pre-terminated Pigtails or Adapters on the front
• Dedicated Enclosures - 1x32 and 1x64

WDM Modules

• CWDM - 2, 4, 8, 16 channels, 1271-1611nm
• DWDM - 2, 4, 8, 16, 20, 40 channels, 100GHz or 200GHz spacing
• Available connectorized with 1 meter 900um tails on front panel

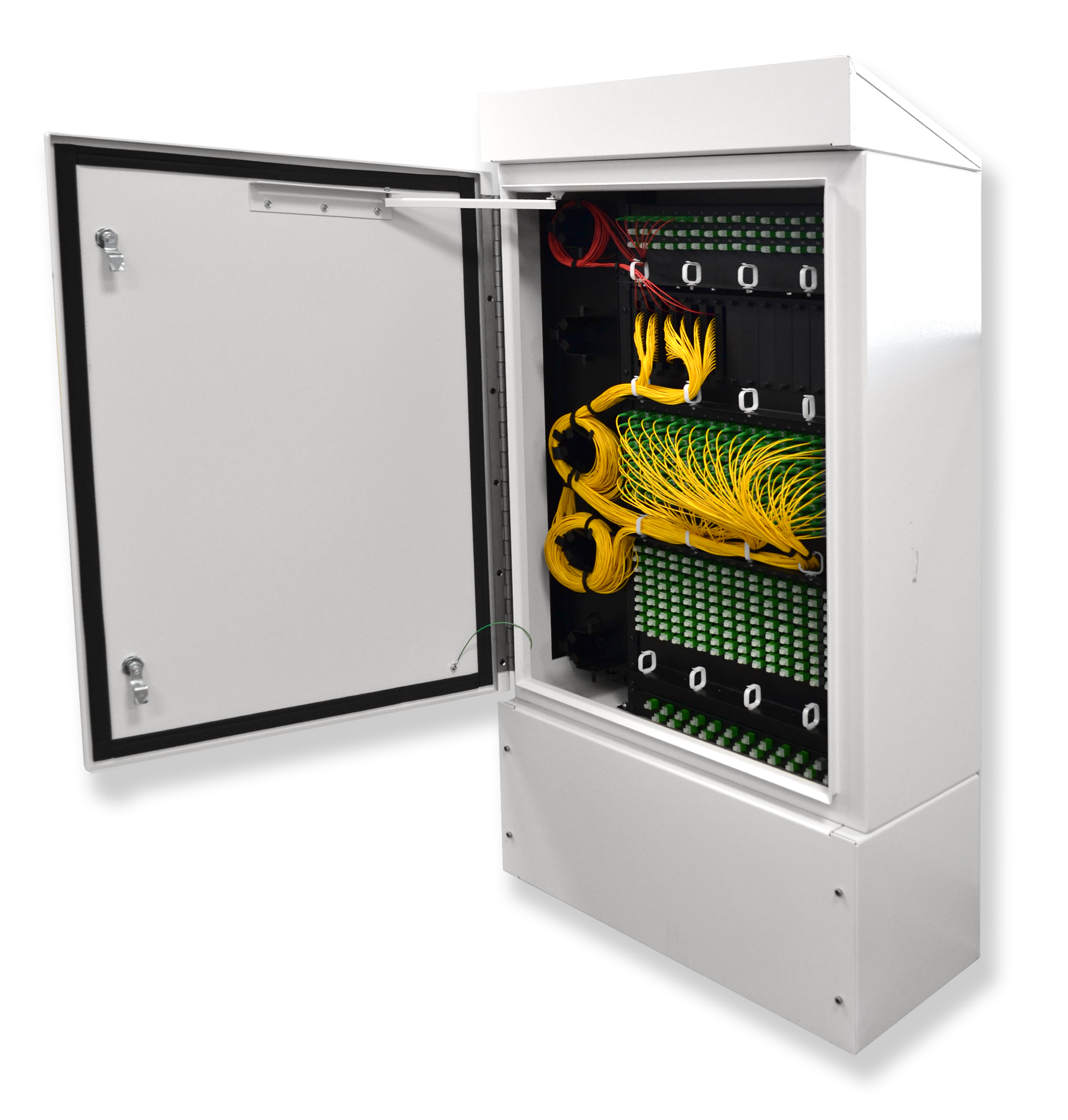

Outdoor Fiber Management Center

The Fiber Management Center (FMC) is a NEMA-rated, completely passive enclosure designed to interconnect fiber optic cables. The FMC comes in three sizes to accommodate any port size and stores custom-designed LGX footprint High-Density Splitter Modules for any PON architecture. Each cabinet includes a metal template for PAD Mount installation and all pole/wall mounting hardware.

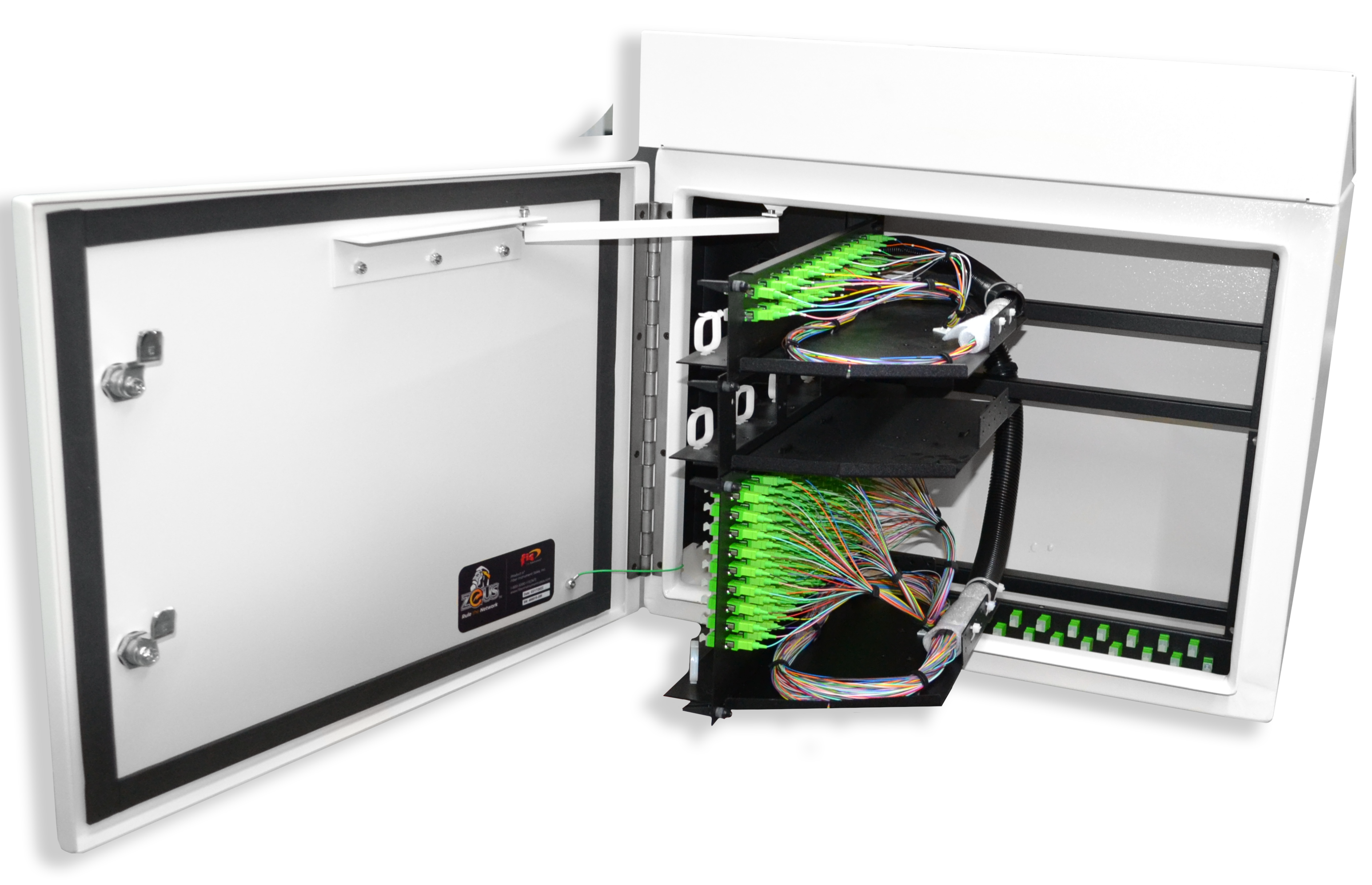

Mini FMC

• 24.71”(h) x 27”(w) x 14”(d)
• Input – 48 SC Ports (96 LC)
• Distribution – 144 SC Ports (288 LC)
• Up to 6 LGX Footprint Splitter Modules w/ Tails

Standard FMC

• 36”(h) x 27”(w) x 14”(d)
• Input – 48 SC Ports (96 LC)
• Distribution – 288 SC Ports (576 LC)

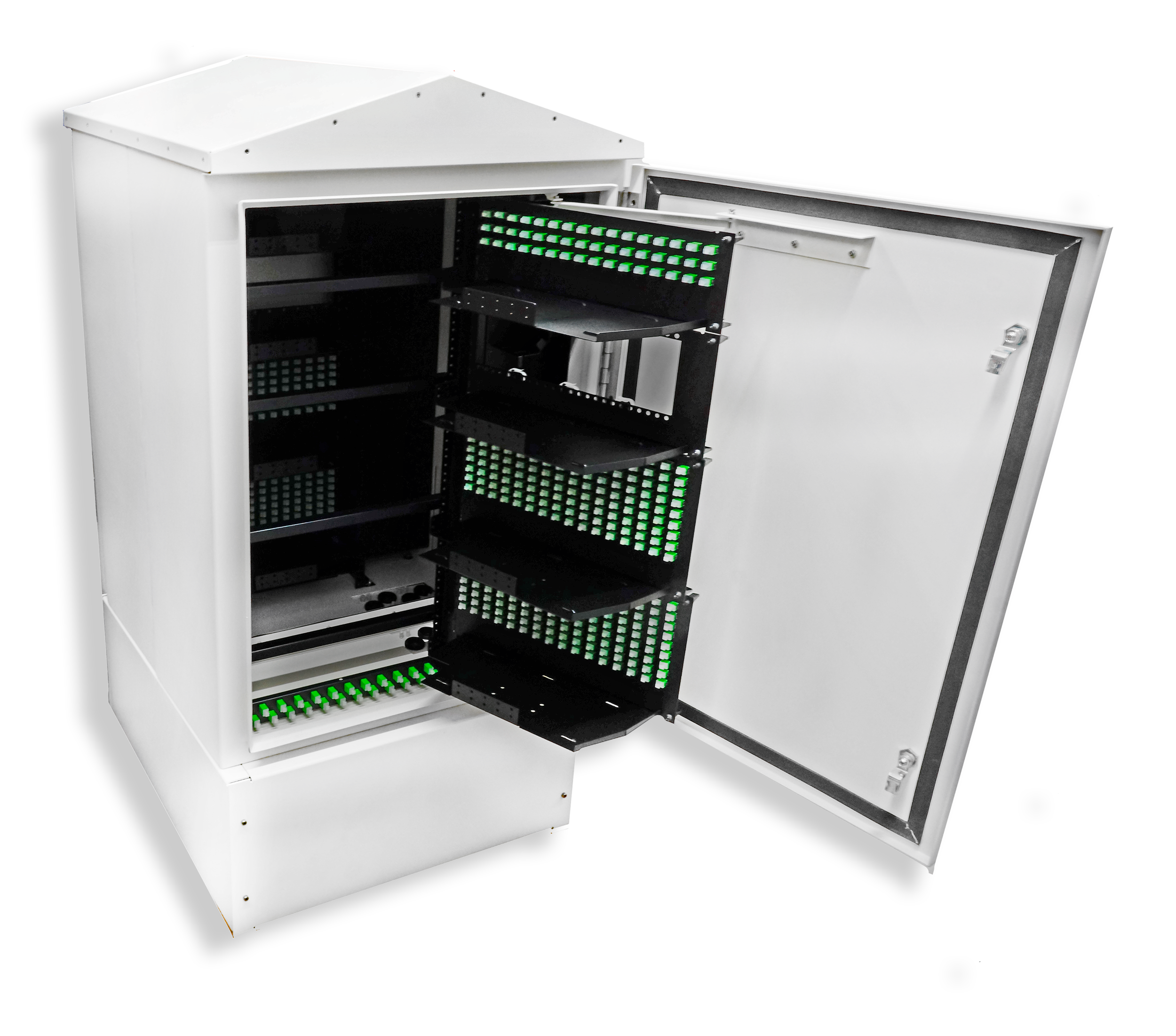

XL FMC

• 36”(h) x 27”(w) x 30”(d)
• Input – 96 SC Ports (192 LC)
• Distribution – 576 SC Ports (1,152 LC)
• Up to 48 LGX Footprint High-Density Splitter Modules
• Dual Door System (Front & Rear)
• Pad Mount Installation, Only

Drop Cable Termination

Drop cable is the main focal point of the network that shapes the final external link between the Provider and the Subscriber. Flat drop cable consists of a polyethylene jacket with 1, 2, or multiple fibers paired with 2 dielectric strength members giving it a high crush resistance for direct bury applications. FIS can install various connectors on drop cables such as the Corning Optitap, compatible ZTAP, or standard SC/APC for easy installation in either a Multi-Service Terminal (MST) enclosure or one of the many FIS Outside Plant Drop Termination Enclosures.

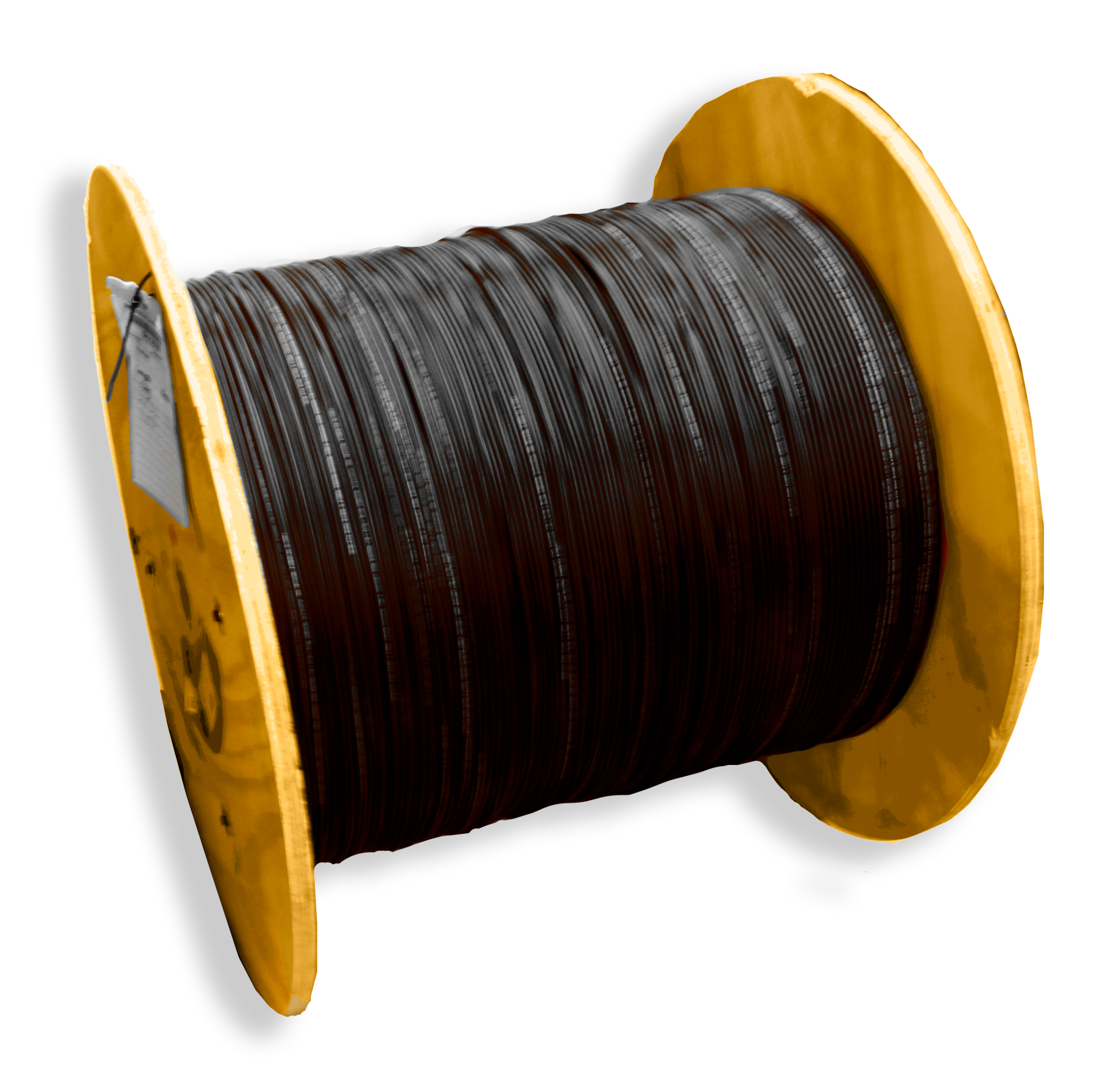

Flat Drop Bulk Cable

• Aerial, Underground, and Direct Burial Application
• Toneable and non Toneable Construction
• Fiber counts 1 – 12

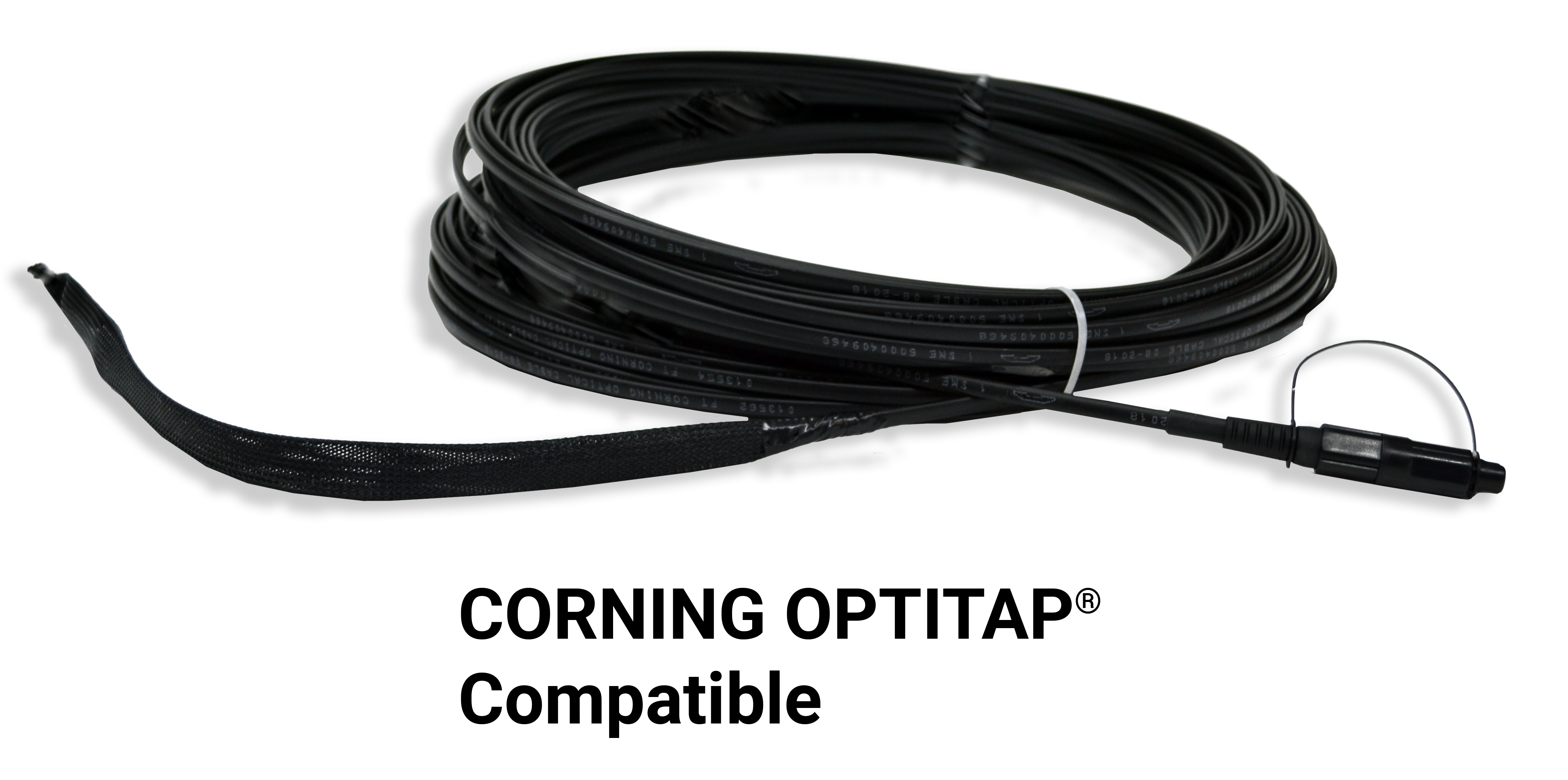

Flat Drop Cable Assemblies

• Installation of Corning OptiTap Connectors as well as other compatible connector styles
• Custom breakout lengths for easy access in Drop Enclosures
• Scheduled shipments for projects available

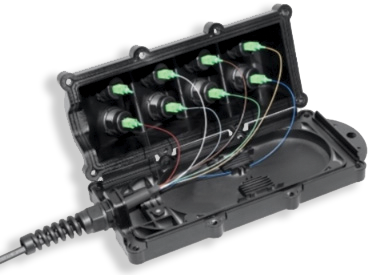

Multi-Service Terminals (MST)

• 4, 8, 12 Port Enclosures
• Pre-loaded with flat drop cable
• Incorporates hardened connector (ZTAP or OptiTap) technology

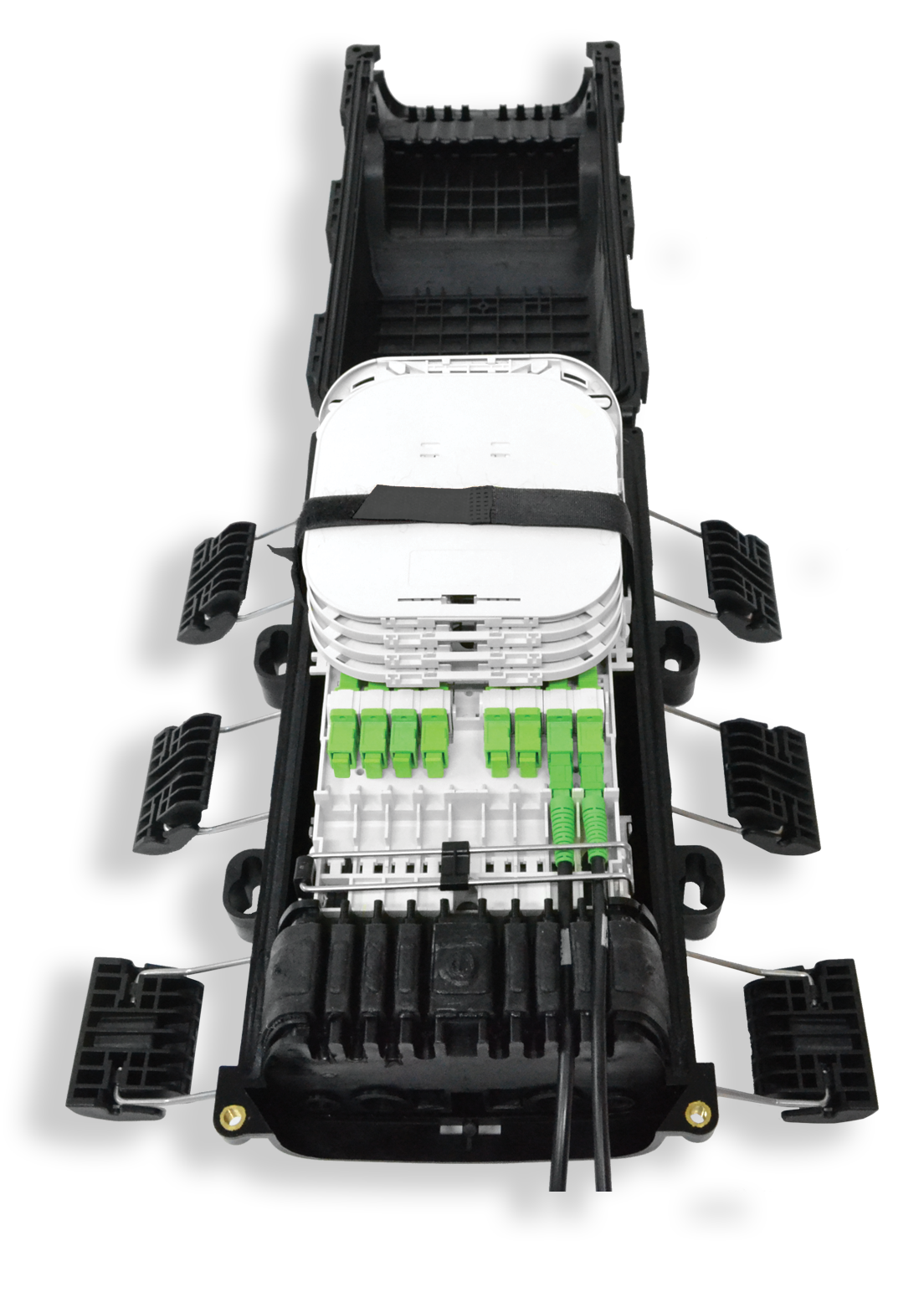

FIS Distribution Enclosures

• 8 Port Enclosure
• Pole, Pedestal, Strand, or Wall Mountable
• “Plug-n-Play” style
• Designed to accept 8 pre-terminated drop cables and up to 60 single splices

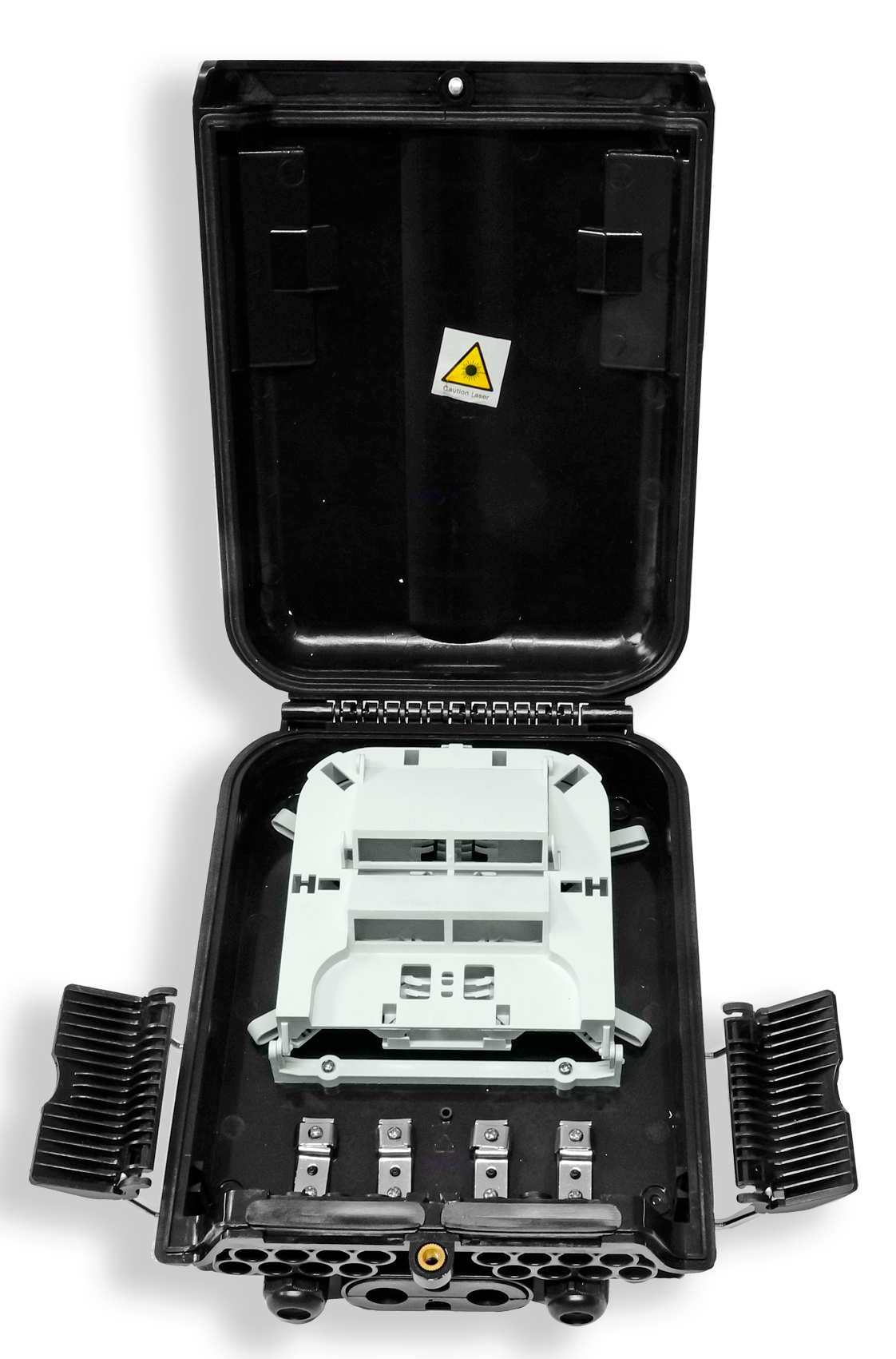

FIS ORION Series Enclosures

• 16, 24, 32 Port Enclosures
• Outdoor enclosures for harsh environments
• Up to 48 SC / 96 LC Ports

Customer / House

Usually located on the side of the house is a demarcation point often referred to as a Network Interface Device (NID). The NID is an outdoor rated box that allows a smooth transition from the flat drop cable to an indoor/outdoor rated cable that extends to the Optical Network Terminal (ONT).
