Fiber Optic Test Equipment

Anritsu MT9090A

Fiber Optic Test Kit

1350nm | 1550nm | Filtered 1650nm

FIS is providing high-performance optical fiber OTDR kits featuring the Anritsu MT9090A compact handheld Singlemode TriWave OTDR. This OTDR has both traditional OTDR trace scan format and Anritsu Fiber Visualizer for technicians unfamiliar with interpreting OTDR event trace scans.

Three wavelengths to locate the smallest macro bend and a built-in power meter make this a powerful troubleshooting tool for field engineers and technicians.

This optical tester is paired with armored test cables. The armored cables look like standard fiber patch cables, but they have a steel spiral armored core that protects the optical fiber from bends and breakage. Connector ferrule end-face cleaners for ongoing good practices, armored test reference jumpers to adapt in the field, and visual fault locators (VFLs) to provide visual continuity or troubleshooting are available for an all-around rocket ship of an optical test kit.

“Compact size without compromising specifications, built rugged for Singlemode fiber outside plant applications in Broadband, DAS, FTTx, and last-mile field installations.”

Verizon Wireless Approved

Call Fiber Instrument Sales

For Verizon Wireless Contractor Pricing

1-800-5000-FIS(347)

Key Features

Compact Powerful Handheld OTDR with built-in Optical Power Meter
Singlemode 1310/1550/Filtered 1650nm wavelengths to verify optical performance
Accurate attenuation and return loss measurements
Built-in Launch Cable with SCAPC Adapter Port
Fiber Event Analysis & Fiber Visualizer with Pass/Fail thresholds
Capable of last-mile and optical testing >50 miles
Operates 8 hours on full battery charge
Soft carry case
Armored test reference jumpers
4.3” color screen
Product Dimensions: 7.5” x 3.8” x 1.9”

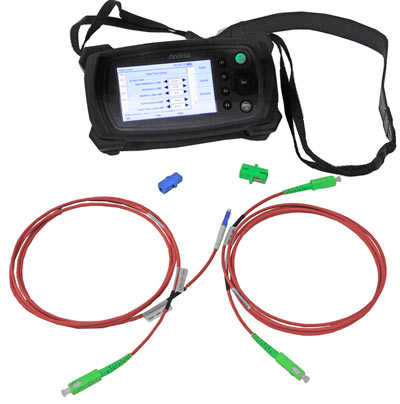

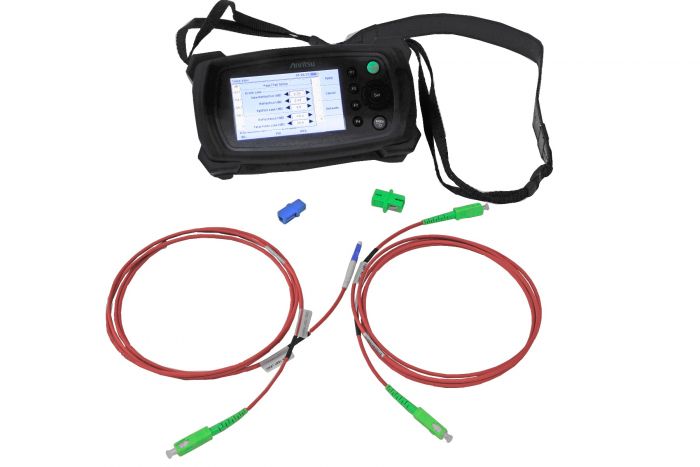

Handheld Singlemode OTDR Kit - F1T9090

Handheld Singlemode OTDR Kit - Anritsu MT9090A 1310/1550/Filtered 1650nm, 32.5/31/32.5dB Dynamic Range, Power Meter & Fiber Visualizer, SCAPC Port Adapter, Soft Carry Case, (2) Battery Packs and (2) Armored Test Reference Jumpers SCAPC-SCAPC, SCAPC-LCUPC 2 meters with SCAPC-SCAPC and LC-LC Mating Sleeve.

Learn More

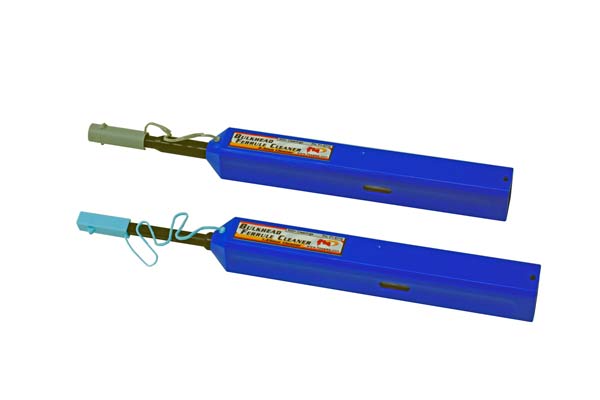

Fiber Ferrule End-Face Cleaner Kit for SC & LC - FMTC2

Fiber Ferrule End-Face Cleaning Kit for SC (2.5mm) and LC (1.25mm) style connectors.

Learn More

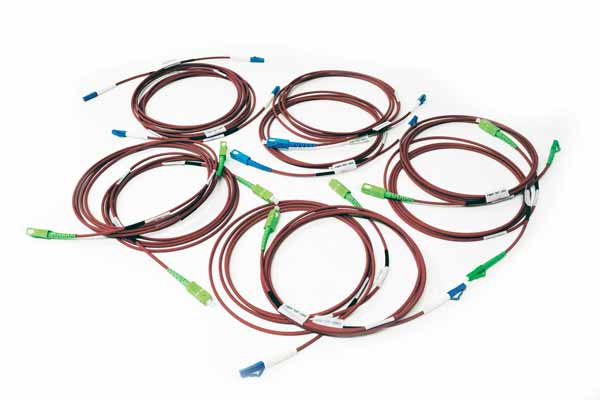

Simplex Armored Test Reference Jumper Kit - FMTR3

Simplex Armored Test Reference Jumper Kit 10 piece set (2 each) SCUPC-LCUPC, SCAPC-SCAPC, SCAPC-LCAPC, SCAPC-LCUPC, LCUPC-LCUPC – 2-meter length, Color Red Jacket, 3.0mm OD.

Learn More
