USE STATE OF THE ART FUSION SPLICERS BY SUMITOMO
Sumitomo means - innovation, speed and performance. Network expansion becomes easy when you choose one of Sumitomo’s fusion splicers.
Maintaining Fiber Optic Industry Leading Features
Sumitomo is known for breakthrough fusion splicer technology. This is the company that introduced the world to the ground breaking technology of the MPO Splice-On-Connector, which decidedly altered the way worksite connectivity was achieved. Not only that, the SOC lowered both the time it takes to complete the job, and the cost. The benefits were felt throughout the splicing industry. Users of Sumitomo products have come to rely on their expertise in designing and building quality splicers with innovation, speed, and performance.

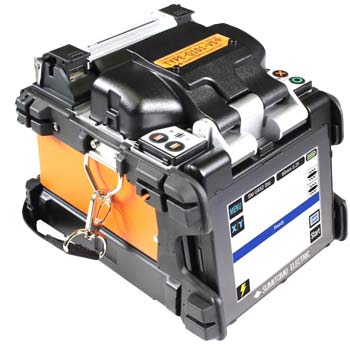

Sumitomo Q102 Fusion Splicer
INNOVATION. SPEED. PERFORMANCE.
You've got questions. We have the answers.
Our people are experts in fiber optic splicers.
INNOVATION. SPEED. PERFORMANCE.
You've got questions. We have the answers.
Our people are experts in fiber optic splicers.

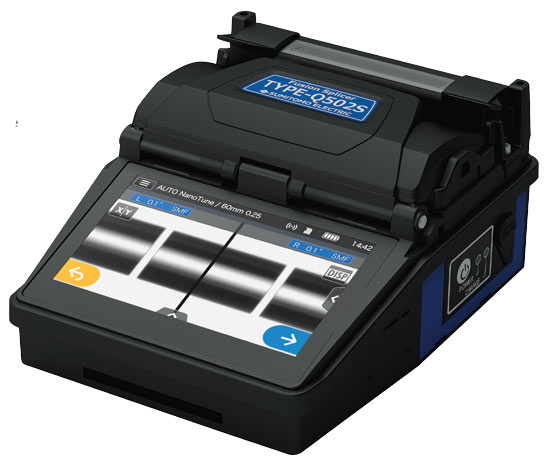

SUMITOMO Q502S ACTIVE CLAD ALIGNMENT FUSION SPLICER
With new features and new technologies, the Q502S fusion splicer offers improved performance, reliability, and user experience. The Q502S series maintains Sumitomo Electric’s industry-leading features, including a world-class*2 light and compact frame, quick splicing, and environmental durability.
DESCRIPTION |
PART # |
| TYPE-Q502S Quantum Fusion Splicer Kit |
TYPE-Q502S-KIT-2H |
| TYPE-Q502S Quantum Fusion Splicer Kit | TYPE-Q502S-KIT-8RH |

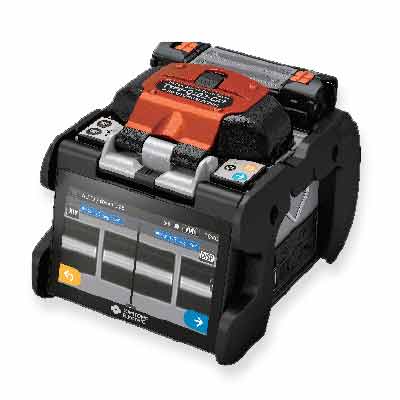

SUMITOMO TYPE Q102-CA+ QUANTUM FUSION SPLICER KIT
The Quantum Type-Q102-CA™ is Sumitomo Electric Lightwave’s next generation of industry-leading Quantum core alignment fusion splicers, redesigned from the ground up to redefine the industry standard in optical fiber core alignment fusion technology. Maintaining all of the qualities and industry-first features of the Quantum Type-Q101-CA, the TYPE-Q102- CA continues to raise the bar in performance by still being the fastest splicer with blazing fast 5-second splice and 9-second sleeve heating times. These new speeds, coupled with the splicer’s patent-protected dual-independent ovens, make it the fastest in the industry by far. The built-in dual heater system, with its unprecedented speed, improves splicing efficiency by over 80% for perfectly streamlined, consecutive, and cost-effective splices.
DESCRIPTION |
PART # |
| TYPE Q102-CA+ Quantum Fusion Splicer Kit |
TYPE-Q102-CAP-KIT-6RSC |
| TYPE Q102-CA+ Quantum Fusion Splicer Kit |
TYPE-Q102-CAP-KIT-6RSCFH |
| TYPE Q102-CA+ Quantum Fusion Splicer Kit | TYPE-Q102-CAP-KIT-8R |
|
TYPE Q102-CA+ Quantum Fusion Splicer Kit |
TYPE-Q102-CAP-KIT-8RFH |

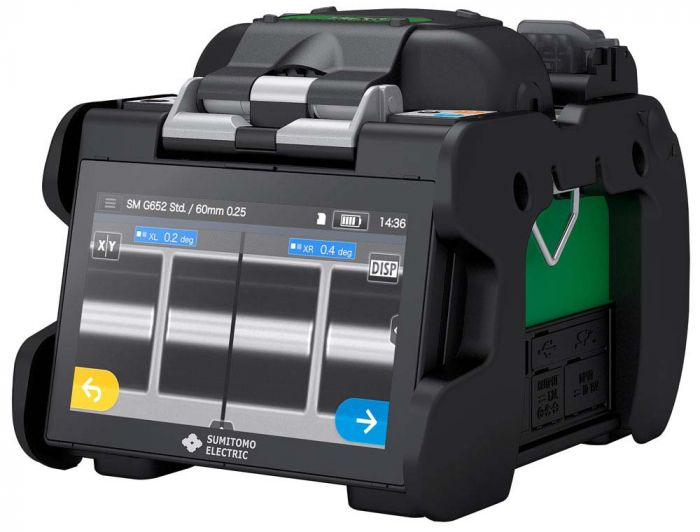

SUMITOMO TYPE 56 FUSION SPLICE KIT W/ AUTO PRECISION CLEAVER
DESCRIPTION |
PART # |
| TYPE-56 Fusion Splicer Kit | TYPE56CAKIT6RSC |
| TYPE-56 Fusion Splicer Kit | TYPE56CAKIT8R |
SUMITOMO ACCESSORIES
DESCRIPTION |
PART # |
| Sumitomo Electrodes for Q502 fusion splicer | ER17 |
| Sumitomo Electrodes for Sumitomo Splicer (pair) | ER10 |
| Sumitomo Electrode for QH201e Splicer (pair) | ER11 |
| Sumitomo Fiber Holders for 900um Single Fiber (Pair) | FHS09 |
| Sumitomo Fiber Holder for 250um Single Fiber (Pair) | FHS025 |
| Sumitomo Fiber Holder for 900um LT Fiber. Left side | FHS025LB5L |
SUMITOMO TYPE Q102M12 QUANTUM COMPACT MASS FUSION SPLICER KIT
Sumitomo Electric Lightwave announces its newest addition to the industry-leading Quantum® Fusion Splicer portfolio. Sumitomo Electric’s new Type-Q102-M12 is accompanied with new features and benefits capable of deploying next generation hyperscale networks.
Consistent and quality low-loss splicing, the compatibility with Lynx Custom-Fit® 2 Splice-On Connecters, and Sumitomo Electric’s patented dual independent ovens make this fusion splicer a preferred choice for extensive and diverse optical fiber networks. The new ribbon fiber splicer is capable of handling 250um and 200um ecosystems and is accompanied by SEL’s 24/7 fusion splicer technical support and a three-year warranty
FEATURES
• Dual independent ovens for increased productivity
• Reduce your work time. Splicing: 11s Heating: 35s
• Active Auto Clamping Alignment System, or ACAS optimizes splice loss 0.05dB
• Touch optimized user interface and high resolution display
DESCRIPTION |
PART # |
| TYPE Q102-M12 Quantum Compact Mass Fusion Splicer Kit |
TYPE-Q102-M12-KIT-6RM1 |
| TYPE Q102-M12 Quantum Compact Mass Fusion Splicer Kit |
TYPE-Q102-M12-KIT-8RM1 |

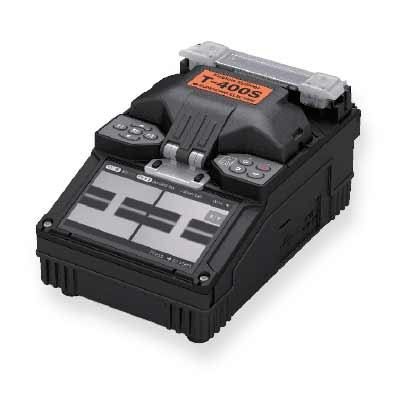

SUMITOMO TYPE-400S ACTIVE CLAD-ALIGN FUSION SPLICER KIT
• Carry out your mission as fast as possible
• All the FTTx fiber splices in one machine
• Simple operation by brand-new user interface
DESCRIPTION |
PART # |
| TYPE-400S Active Clad-Align Splicer Kit |
TYPE-400S-ACA-KIT-6RSFH |
| TYPE-400S Active Clad-Align Splicer Kit |
TYPE-400S-ACA-KIT-8RFH |
SUMITOMO SPLICER PARTS
Fiber Holders - Sumitomo’s fiber holders are designed to exacting tolerances. This attention to precise manufacturing helps load the fiber correctly and accurately. They are designed to be used specifically with Sumitomo fusion splicers. Fiber holders are purchased in pairs.

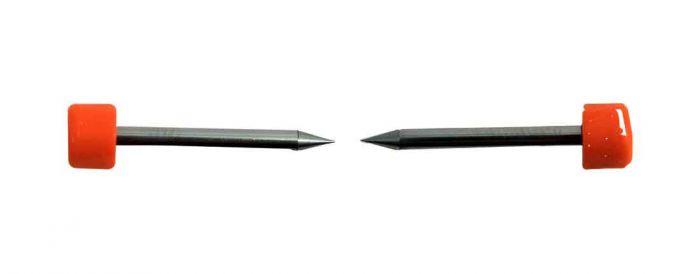

Electrodes - These are a consumable item that is used in a fusion splicer and they must be replaced on a regular basis. High temperatures used in the fusion process will begin to wear the tip of each electrode. Unless you replace the electrodes on regular basis, you will begin to induce increased attenuation each time a splice is attempted. This is one place you do not want to skimp. Always use the manufacturer’s replacement electrodes. The type of material used here makes the difference. After-market parts are usually substandard and will cause problems with this important function.
HOW DOES FUSION SPLICING WORK?
It’s really quite simple. Heat is applied to fuse together two pieces of optical fiber. A fusion splicer uses an electrical arc which melts the two pieces of optical fiber to form one continuous piece of fiber. When the splicing is done correctly the fusion splice will minimize back reflections, which are the light that is reflected back to the source after it encounters an imperfection in the fiber. There are 5 simple steps that must be adhered to. First of all, the fiber must remain clean during this process. The optical fiber needs to have all jackets and coatings removed until only the glass fibers remain. Next, the fiber must be cleaved. A special cleaving tool must be used for this process. In this step the cleaved end on each fiber must be perpendicular. A fusion splicer is then used for the next step. This is where the electrical arc from the fusion splicer melts the two ends into one continuous fiber. Finally, the splice itself must be protected against breakage. This is done by placing a protective sleeve over the exact splice location. Finally the fiber should then be tested for end to end loss.
