MPO/MTP PRE-TERMINATED SYSTEMS
The FIS MPO/MTP Module is a pre-terminated, pre-tested, rack mount module system allowing for a simple installation of MPO/MTP backbone cables with a transition to standard LC or SC connections. The FIS modules are designed to fit into enclosures with LGX slot configurations. Using a pre-terminated cable assembly in conjunction with modules within a rack allows for easier installation and simpler cable management. Contact your FIS sales representative today for further details or use the configurators below to construct the proper combination to meet any requirement.

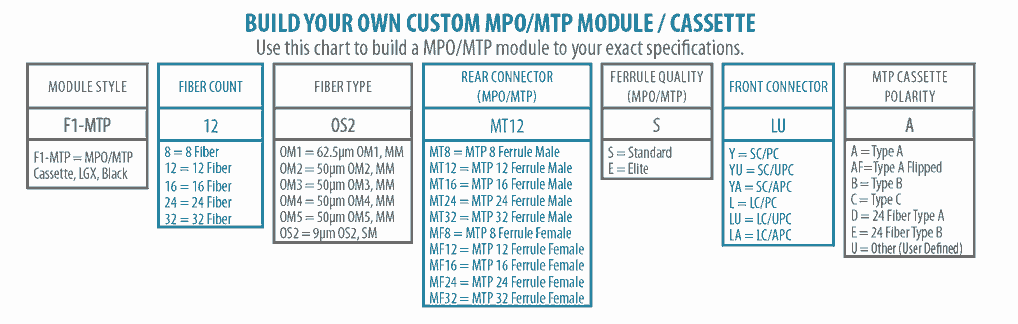

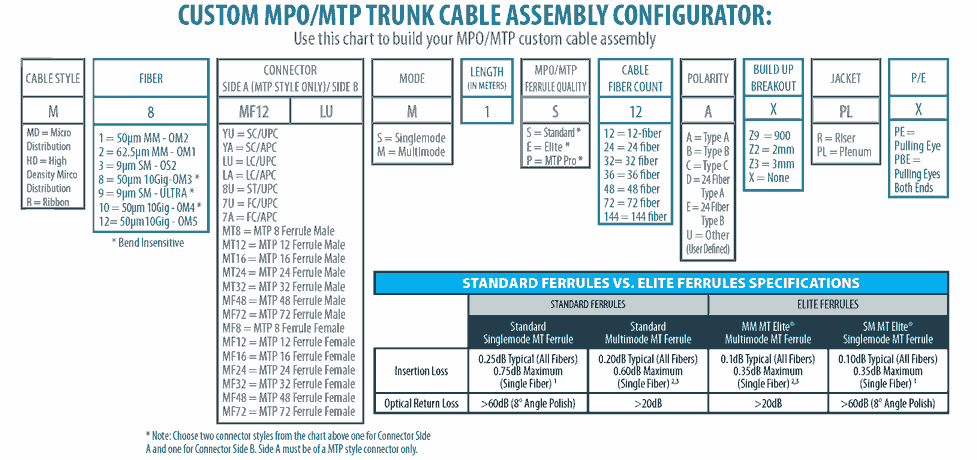

CUSTOM 12 FIBER MPO/MTP TO MPO/MTP TRUNK CABLE DIAGRAMS
Use these diagrams to help build the cable you need to your exact specifications.

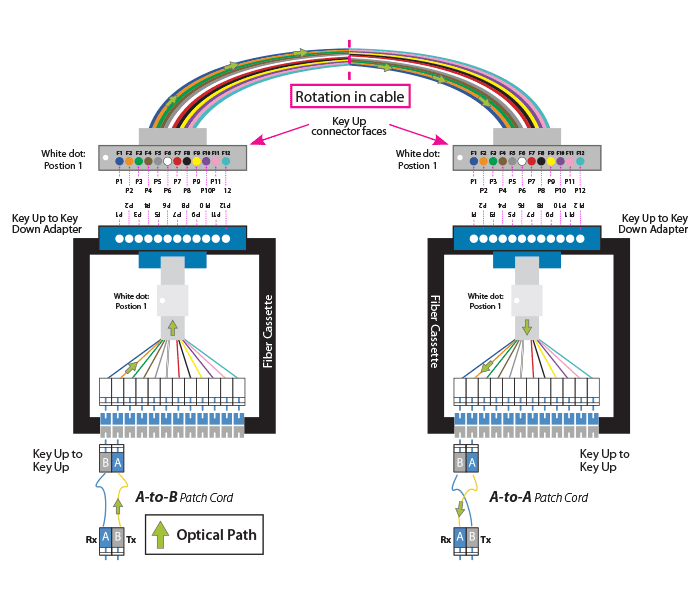

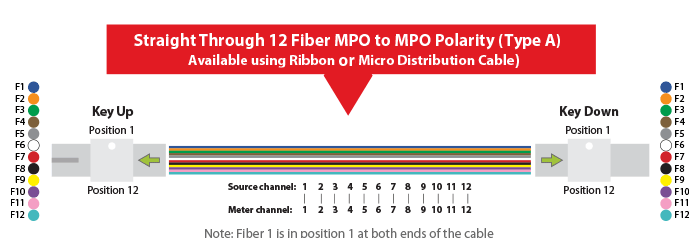

Type A
MD9MF12MF12SxxE12AXPL – Quantity 1 Trunk Cable (MPO/MTP Plenum Trunk cable Method A using Micro-Distribution Singlemode, 12 Fiber cable with MTP/Female Elite – MTP/Female Elite connectors, “xx” = length)
F1MTP12OS2MT12ELUA - Quantity 2 Cassettes (one cassette for Side A and one for Side B 12 Fiber Type A Singlemode Cassette with 1 rear MPO/MTP - male elite port, 6 front LC duplex ports)
X9CCSxxPLHC – Quantity 6 Patch Cables (Duplex A - B Plenum 1.6mm Singlemode Patch cord LC Duplex – LC Duplex , “xx” = length of hand coiled)
X9CCSxxPLHC – Quantity 6 Patch Cables (Duplex A – A* Plenum 1.6mm Singlemode patch cord LC Duplex – LC Duplex plenum “xx” = length hand coiled) *Must specify A –A polarity

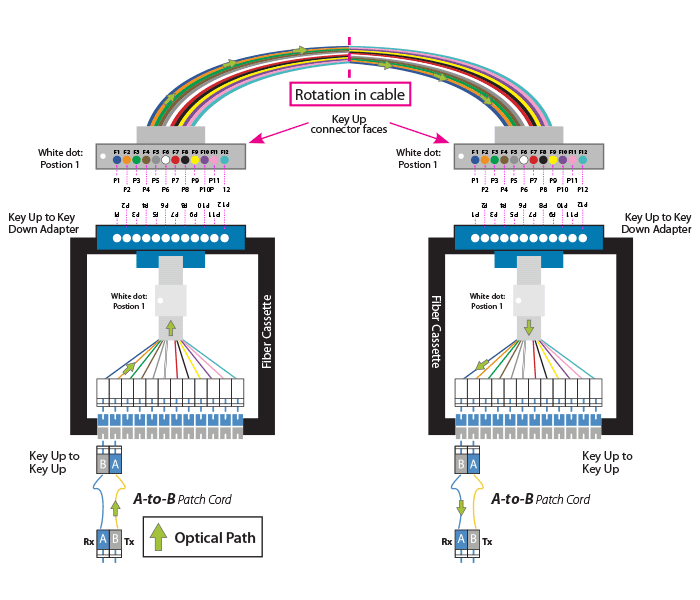

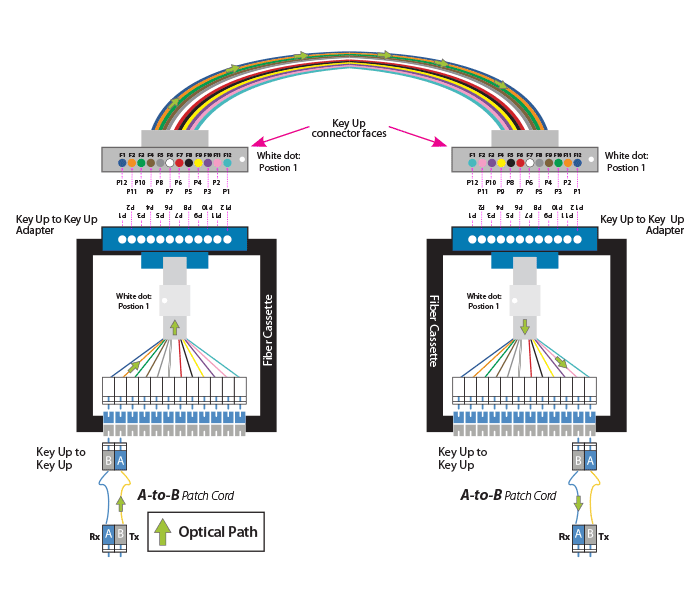

Type B
MD8MF12MF12MxxE12BXPL – Quantity 1 Trunk Cable (MPO/MTP Plenum Trunk cable Method B using Micro-Distribution Multimode OM3, 12 Fiber cable with MTP/Female Elite – MTP/Female Elite connectors, “xx” = length)
F1MTP12OM3MT12ELUB - Quantity 2 Cassettes (one cassette for Side A and one for Side B 12 Fiber Type B Multimode OM3 Cassette with 1 rear MPO/MTP - male elite port, 6 front LC duplex ports)
X8CCMxxPLHC – Quantity 12 Patch Cables (Duplex A - B Plenum 1.6mm Multimode OM3 Patch cord LC Duplex – LC Duplex , “xx” = length of hand coiled

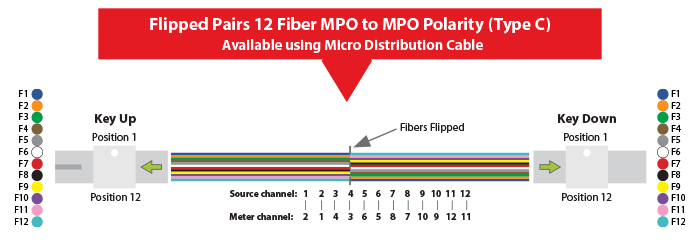

Type C
MD8MF12MF12MxxE12CXPL – Quantity 1 Trunk Cable (MPO/MTP Plenum Trunk cable Method C using Micro-Distribution Multimode OM3, 12 Fiber cable with MTP/Female Elite – MTP/Female Elite connectors, “xx” = length)
F1MTP12OM3MT12ELUC - Quantity 2 Cassettes (one cassette for Side A and one for Side B 12 Fiber Type C Multimode OM3 Cassette with 1 rear MPO/MTP -male elite port, 6 front LC duplex ports)
X8CCMxxPLHC – Quantity 12 Patch Cables (Duplex A - B Plenum 1.6mm Multimode OM3 Patch cord LC Duplex – LC Duplex , “xx” = length of hand coiled
