Drop / Flat Drop Cable
FIS FLAT DROP CABLE
FIS offers the flat-stranded single-tube drop cable for Fiber To The Home applications. This durable design incorporates two dielectric rigid rods for optimal tensile strength and crush protection.
Fiber Count |
Description |
Part # |
| 2 |
Fiber SM Corning® SMF-28® Ultra fiber Dry Flat Drop Cable PE Black, 250µm Fiber |
|
| 2 |
Fiber SM Corning® SMF-28® Ultra fiber Gel Flat Drop Cable PE Black, 250µm Fiber |
|
| 2 |
Fiber SM Corning® SMF-28® Ultra fiber Gel Flat Drop Toneable (24 AWG) Cable, 250µm Fiber |
|
| 2 |
900um Buffer SM Corning® SMF-28® Ultra fiber Dry Flat Drop PE Black |
|
| 2 |
900um Buffer SM Corning® SMF-28® Ultra fiber Dry Flat Drop Toneable 24 AWG |
|
| 4 |
Fiber SM Corning® SMF-28® Ultra fiber Dry Flat Drop Cable PE Black, 250µm Fiber |
S09FD04CZEBL |
| 6 |
Fiber SM Corning® SMF-28® Ultra fiber Dry Flat Drop Cable PE Black, 250µm Fiber |
|
| 12 |
Fiber SM Corning® SMF-28® Ultra fiber Flat Drop Cable PE Black, 250µm Fiber |
|
| 12 |
Fiber SM Drop Cable Dry Toneable (24 AWG) PE Black, 250µm Fiber |

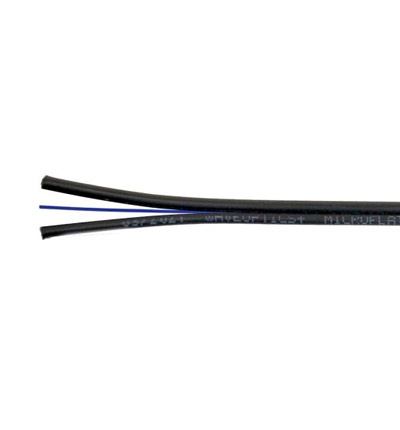

FIS MICRO FLAT DROP CABLE
The design of the cable provides fast simplified removal of the jacket, 55 percent faster than standard flat drop cable. Cable can be utilized in the field and factory for the installation of connectors. The dielectric version eliminates any bonding and grounding requirements. Available with 1 or 2 fibers. Dielectric strength member (2) 1.5mm EAA coated FRP. Cable diameter 3.0mm x 5.4mm singlemode fiber G.657A1.
Fiber Count |
Description |
Part # |
| 1 | Micro Flat Drop Cable (250µm Fiber) | S09MDC901CZEBL |
CORNING® CABLE SYSTEMS DROP CABLES
SST-Drop™ Cables offer the ease of installation of standard ALTOS® cable in an easy-access stranded single-tube (SST) design. Intended for FTTH networks, bridging the space between distribution network and subscriber premise.
Fiber Count |
Description |
Part # |
| 1 | SM 9/125µm SST Drop™ Cable - OS2 | 001-EB4-14101A20 |
| 2 | SM 9/125µm SST Drop™ Cable - OS2 | 002-EB4-14101A20 |
| 4 | SM 9/125µm SST Drop™ Cable - OS2 | 004-EB4-14101A20 |
| 12 | SM 9/125µm SST Drop™ Cable - OS2 | 012-EB4-14101A20 |
CORNING® CABLE SYSTEMS DROP CABLES
SST-Drop™ Cables offer the ease of installation of standard ALTOS® cable in an easy-access stranded single-tube (SST) design. Intended for FTTH networks, bridging the space between distribution network and subscriber premise.
Fiber Count |
Description |
Part # |
| 1 | SM 9/125µm SST Drop™ Cable - OS2 | 001-EB4-14101A20 |
| 2 | SM 9/125µm SST Drop™ Cable - OS2 | 002-EB4-14101A20 |
| 12 | SM 9/125µm SST Drop™ Cable - OS2 | 012-EB4-14101A20 |

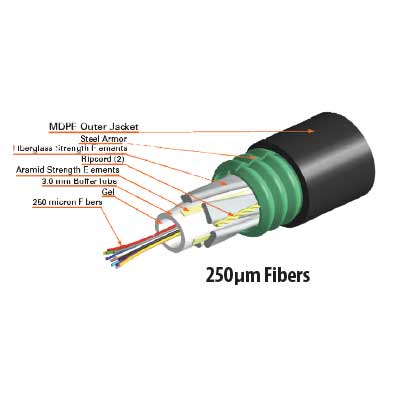

COMMSCOPE OSP DROP CABLE
FIS carries CommScope armored outside plant cable. The cable is for buried, underground and aerial applications. It uses Arid-Core® water blocking technology and is the cable used in FIS node cables.
Fiber Count |
Description |
Cable DIA |
Part # |
| 6 | Central LT Armored SM with Ripcord - OS2 | 8.1mm | 0006DA8WF06NS/BP |
| 12 | Central LT Armored SM with Ripcord - OS2 | 8.1mm | 0012DA8WF12NS/BP |
