Welcome, and congratulations on becoming a Certified Splice-On Connector Installer through the successful completion of the FIS University Splice-On Connector Training!
You’ve earned it, and we couldn’t be more proud of your accomplishment. Be sure to download your official badge—it’s perfect for adding to your email signature or sharing on social media to showcase your certification. Celebrate your achievement with confidence, because we’re celebrating right alongside you!
On this page, you’ll also find a collection of helpful product documents and instructional videos designed to support you as you put your new skills into action. We’ll continue to add fresh resources as they become available, so be sure to check back periodically for the latest updates and new product content.
Cheetah Splice-On Connector Video
Learn About the FIS 900um Cheetah Splice-On Connector
Cheetah Splice-On Connector Reference Documents

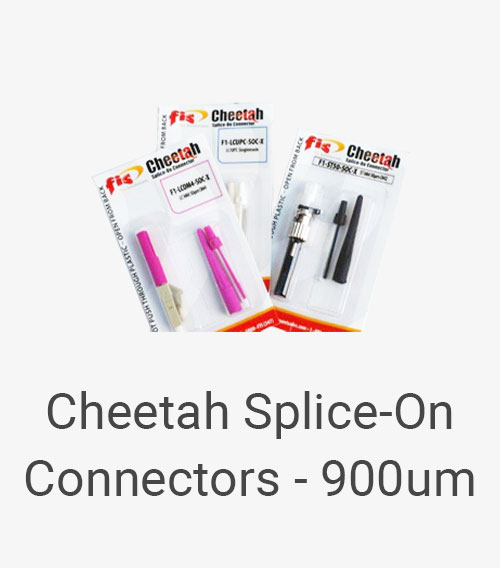

CHEETAH
• Return loss: APC >60dB, UPC >55dB and MM 35dB (typical)
• 20+ styles available: SM, MM, 10Gig (OM5 available upon request)
• Connector holders compatible with many industry leading splicers including (but not limited to) FIS, AFL, Sumitomo, and Fitel fusion splicers
• 900um strain relief boot protects splice point for easy cable management
The Cheetah Splice-On Connector is the industry's fastest pre-polished, factory terminated pigtail to prepare, splice and install. The Cheetah Splice-On Connector's 27mm splice protection sleeve is encapsulated and protected by the custom strain relief boot eliminating the need for additional splice trays, chips, and rack space. Our patented SOC holder allows for flexibility of use with the industry's best fiber optic fusion splicers, to ensure that you can easily use our pre-cleaved connector regardless of your equipment.
FIS offers over 20+ styles, between connector and fiber type, to accommodate any of your network needs. Quick, clean, and convenient; the FIS Cheetah SOC gets your network up to speed.
Contact your FIS sales representative today and request a Cheetah Splice-On Connector sample.
Each Cheetah SOC kit contains the following:
• (1) Universal dust cap with extension handle
• (1) Splice-On Connector (SOC) pigtail with cleave protector
• (1) 27mm Mini Splice Sleeve
• (1) Custom molded Strain Relief Boot
**ST connectors include a Key Alignment Tab to ensure optimal performance
Armordillo Splice-On Connector Video
Learn About the Armordillo Splice On Connector
Armordillo Splice-On Connector Reference Documents

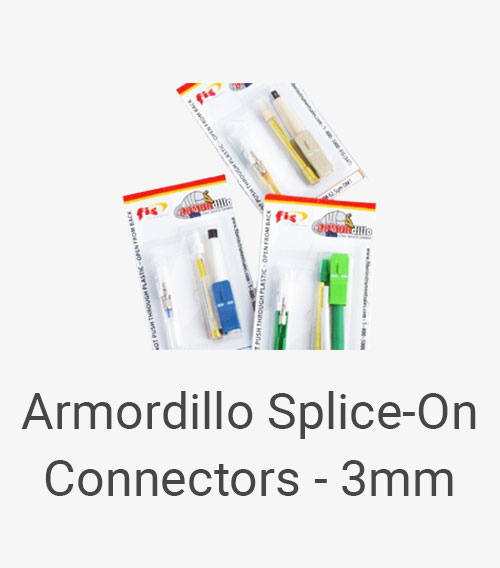

ARMORDILLO
• Return loss: APC >60dB, UPC >55dB and MM 35dB (typical)
• 20+ styles available: SM, MM, 10Gig (OM5 available upon request)
• Unique extended crimp sleeve provides industry leading pull strength
• Jacket insert to fit 1.6mm, 2.0mm, or 3.0mm with the same connector package
The FIS Armordillo SOC provides a termination option for 2.0mm and 3.0mm cable that has a custom extended crimp sleeve that attaches the Kevlar to the connector giving pull strength that is second to none. Using a factory-terminated and pre-polished connector, a crimp tool, and an FIS Universal SOC oven you can install the Armordillo connectors in the field with the same flexibility of splice machines as the FIS Cheetah SOC.
FIS offers over 20+ styles, between connector and fiber type, to accommodate any of your network needs. Quick, clean, and convenient; the FIS Armordillo SOC gets your network up to speed.
Contact your FIS sales representative today.
Each kit contains one of each of the following:
• (1) Universal dust cap with extension handle
• (1) Splice-On Connector (SOC) pigtail with cleave protector
• (1) Custom 3.0mm ID splice sleeve
• (1) Custom molded Strain Relief Boot
• (1) Custom crimp sleeve
• (1) Boot crimp ring
**ST connectors include a Key Alignment Tab to ensure optimal performance
Splice-On Connector Video Collection
How To Terminate A 900µm Cheetah Splice On Connector On A FIS AC5 Fusion Splicer
In this video, you will see the process for termination the FIS 900µm Cheetah Splice On Connector using FIS AC5 Active Clad Fusion Splicer.
How To Terminate A 3mm Armordillo Splice On Connector On A FIS AC5 Fusion Splicer
In this video, you will see the process for termination the FIS 3mm Armordillo Splice On Connector using FIS AC5 Active Clad Fusion Splicer.
How To Terminate A 900µm Cheetah Splice On Connector On A FIS CA6 Fusion Splicer
In this video, you will see the process for termination the FIS 900µm Cheetah Splice On Connector using FIS CA6 Core Alignment Active Clad Fusion Splicer.
How To Terminate A 3mm Armordillo Splice On Connector On A FIS CA6 Fusion Splicer
In this video, you will see the process for termination the FIS 3mm Armordillo Splice On Connector using FIS CA6 Core Alignment Active Clad Fusion Splicer.
How To Terminate A 900µm Cheetah Splice On Connector On Fitel S179 Fusion Splicer
In this video, you will see the process for termination the FIS 900µm Cheetah Splice On Connector using Fitel S179 Fusion Splicer.
How To Terminate A 3mm Armordillo Splice On Connector On Fitel S179 Fusion Splicer
In this video, you will see the process for termination the FIS 3mm Armordillo Splice On Connector using Fitel S179 Fusion Splicer.
How To Terminate A 900µm Cheetah Splice On Connector On A Fitel Ninja Fusion Splicer
In this video, you will see the process for termination the FIS 900µm Cheetah Splice On Connector using Fitel Ninja Hand Held Fusion Splicer.
FIS Lockable LC Duplex Clip for FIS Splice On Connectors
In this video, learn about the LC Duplex Clip for FIS Splice On Connectors that has a locking mechanism to prevent connectors from being removed and disrupting the fiber optic network.
How To Open The FIS 900µm Cheetah Splice On Connector Blister Pack
In this very short video, you will see how the FIS Splice-On Connector Blister Pack keeps fibers secure & clean and the proper way to open the packaging.
How To Open The FIS 3mm Armordillo Splice On Connector Blister Pack
In this very short video, you will see how the FIS Splice-On Connector Blister Pack keeps fibers secure & clean and the proper way to open the packaging.
Learn How to Terminate the 900um SC Cheetah SOC Using a Fitel S123 Fusion Splicer
In this video you will learn how to terminate the Cheetah 900um Splice on Connector. The items needed perform this installation are listed. A step by step tutorial will clearly show you the proper way to complete this procedure. Done correctly this procedure can be completed in minimal time.
Learn How to Terminate the FIS Armordillo Splice On Connector
In this video you will learn the step by step termination process for the 1.6/2.0mm FIS Amordillo Splice On Connector. You will also learn what tools and equipment are needed for this process, including the settings and chucks that should be used on the equipment to complete this job.
